What’s the waterproof rating of J30J rectangular connector?

In its most basic form, the J30J rectangular connector does not have a normal IP waterproof grade. Marine or outdoor-rated connectors with IP65 or IP67 security are different from the normal J30J micro rectangular connector, which is designed for high-density electrical connections in controlled settings. But if you place these connectors correctly and use the right closing devices and protected housings, they can provide better environmental protection that is good for harsh aircraft and military uses.

Understanding the Waterproof Rating of J30J Rectangular Connector

Industrial links are important parts of complicated systems that depend on protecting the environment to work well. Waterproof scores, which are usually given as Ingress Protection (IP) numbers, show how well a connection can keep water out under certain test settings. When choosing parts for tough locations where moisture could hurt system stability, these grades become very important. The J30J Series Micro Rectangular Electrical Connector is a unique way to make high-density connections in places where space is limited. This set of connectors meets GJB2446A standards, which are the same as MIL-C-83513 and are the same as MDM series items used in the American defense and aircraft businesses. The theory behind the design puts a small form factor and stable electricity performance ahead of protection.

IP Rating Classification System

The International Protection marking is made up of two numbers that come after the letters "IP." The first number shows the level of protection against solid particles, which ranges from 0 to 6, and the second number shows the level of protection against liquid entry, which ranges from 0 to 8. Higher numbers mean better protection, with IP68 being the highest standard for ongoing submersion protection. To get an IP grade, a device is tested by being exposed to water sprays, jets, and submersion events under controlled conditions. Certified testing centers check the performance of connectors under standard settings, checking for electrical connection and physical stability over time. These thorough tests make sure that procurement professionals can safely choose parts based on proven performance data. Knowing these rates helps B2B procurement teams make smart choices when looking for connectors for specific environments. The link between IP grades and real-world performance has a direct effect on the dependability of systems and the amount of upkeep they need in a wide range of industry settings.

Detailed Waterproof Rating and Durability Features of J30J Rectangular Connector

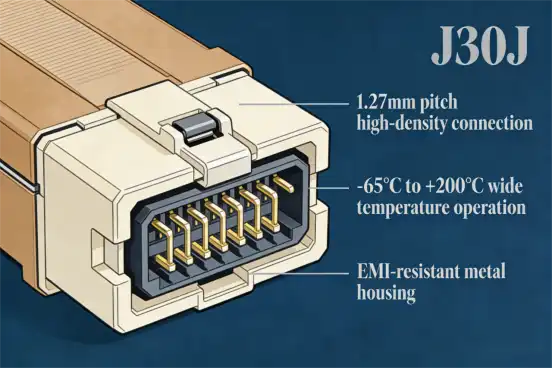

The standard J30J rectangular connector configuration does not carry an official IP waterproof rating, as its primary design focus centers on achieving maximum contact density within minimal space constraints. The connector features 1.27mm lateral spacing and 1.1mm row spacing, enabling high-density configurations that prioritize electrical performance over environmental sealing.

Material Construction and Environmental Resistance

The connection has a strong metal protective shell that protects against electromagnetic interference and makes it last a long time. This metal construction is stronger than plastic options, so the structure will stay together even when the temperature changes and there is mechanical stress. Optional metal tail covers protect important connection points even more, which is especially helpful in places where vibrations are common. Elastic stranded pin contacts, also known as twist pins, keep electrical connections strong even when they are heated and cooled and put under mechanical stress. The durability of these contact mechanisms is very high in harsh environments, but they need the right housing protection to keep working at their best in wet settings.

Operating Temperature Range and Environmental Stability

The J30J adapter works well across a wide range of temperatures that are common in defense and military uses. This temperature stability makes sure that the electrical performance stays the same from -65°C to +200°C, based on how the device is configured and mounted. The link keeps the integrity of the contacts even when the temperature changes, so there are no broken connections that could affect the stability of the system. Durability in the environment goes beyond temperature factors and includes resistance to shaking and shock. The small size and strong materials make it possible for it to work reliably in places with a lot of shaking, like aircraft platforms and industrial control systems. When put in the right casings and fixed correctly, these connections last a very long time and work reliably.

Comparing J30J Rectangular Connector Waterproofing to Other Connectors

J30J rectangular connector selection for moisture-exposed environments requires careful evaluation of available options and their respective protection capabilities. Circular connectors often provide superior inherent waterproofing through threaded coupling mechanisms and integrated sealing systems. Military-grade circular connectors routinely achieve IP67 ratings, making them suitable for outdoor installations and marine applications.

Circular Connector Advantages

O-ring seals and threaded connection systems are common features in circular connectors that make reliable external barriers. These designs allow grades from IP65 to IP67 without extra safety steps, which makes installation and upkeep easier. The cylinder shape naturally fits closing elements, making them cost-effective, waterproof options for many uses. However, circle connectors take up a lot more room than rectangular ones, which makes them less useful in setups with limited space. The J30J trapezoidal connection works great in situations where having a small size and a lot of contacts are more important than being waterproof.

Automotive and Industrial Connector Comparisons

Automotive-grade plugs focus on strong environmental protection to handle the conditions in the engine bay and exposure to weather. Most of the time, these connections get IP67 grades by using built-in closing systems and materials that are specifically made for use in vehicle settings. The closing systems make the connections bigger and more complicated, but they have been shown to work well in wet environments. Industrial connectors come with a wide range of protection levels, from basic IP20 ratings for panel-mounted uses to IP68 ratings for installs underwater. Within this range, the J30J connector is one of a kind because it has excellent contact density and electrical performance traits that work well with waterproof designs instead of competing with them.

Practical Guidance on Wiring and Using J30J Rectangular Connector in Waterproof Applications

Achieving effective environmental protection with J30J connectors requires systematic attention to installation practices and protective measures. Proper sealing techniques can significantly enhance moisture resistance beyond the connector's inherent capabilities, enabling successful deployment in challenging environments.

Installation Best Practices

The most likely places for water to get into junction setups are where cables enter. When put on correctly over cable-connector joints, a heat-shrink tube with a sticky lining is a great main defense. The tube needs to go far enough past the connector body to make a good shield against water movement. Environmental covers provide full security for connections that need better waterproofing. NEMA-rated shelters offer standard levels of security that can be used in a wide range of outdoor and indoor settings. By choosing the right container grades, you can cover the connectors while still making them easy to reach for upkeep and fixing.

Critical Application Areas

Aerospace uses need high stability even in harsh environments like high altitudes, wide temperature ranges, and possible moisture exposure. The small size and military-standard compatibility of the J30J connector make it perfect for avionics installations where larger waterproof options can't be used because of a lack of space. When used safely, the connector's high contact density can also help industrial automation systems. Because connectors need to be accessed often for repair and change in manufacturing settings, protection that can be removed is more useful than protection that can't be removed.

Maintenance and Longevity Considerations

Setting up regular check times helps find signs of possible sealing damage before water gets in. Visually checking heat-shrink tubes, gaskets, and container seals allows for preventative maintenance that keeps expensive system breakdowns from happening. Documenting inspection results helps preventative maintenance programs and efforts to boost reliability. The right way to store and handle the J30J rectangular connector protects its integrity during shipping and installation. Moisture-resistant packing and keeping in a controlled setting keep electrical parts from getting contaminated, which could hurt their performance. These safety steps are especially important for precision uses where the accuracy of the system depends on how well the connectors work.

Procurement Insights: Buying High-Quality Waterproof J30J Rectangular Connectors

Sourcing decisions for critical connector applications require a comprehensive evaluation of supplier capabilities and product specifications. Quality assurance processes, technical support availability, and long-term supply stability influence the total cost of ownership beyond initial purchase prices.

Supplier Evaluation Criteria

Manufacturing standards and licensing compliance are basic ways to tell if a seller is reliable. Look for sources that have quality management systems that are in line with ISO 9001 and the right military or aircraft certifications for your needs. These licenses show that quality control and ongoing improvement are done in a planned way. When using connections in difficult situations, technical help skills become very important. Suppliers that offer application engineering help can help you choose the best connectors and put them in the best way for your surroundings. This help is very helpful when changing common goods to be better for the earth.

Lead Time and Logistics Considerations

Lead times for standard J30J configurations are usually shorter than those for special or military-qualified options. Specialized versions or large sales, on the other hand, may need longer making plans. Early communication with suppliers allows for accurate planning of deliveries and avoids project delays. Shipping and packaging methods have a big effect on the state of the product when it arrives. Precision connectors need to be packed in a way that keeps them dry and handled in the right way throughout the supply chain. Suppliers with experience in the defense and aircraft markets usually follow package rules that are safe for fragile computer parts.

Warranty and Support Services

A broad guarantee shows that the source trusts the quality of the product and the way it was made. When you're shopping for a warranty, make sure it covers both material flaws and performance standards that are important for your purpose. Clear guarantee terms and quick claim processes lower the risk of buying something and help build long-term relationships with suppliers. The quality of technical paperwork affects how well an installation goes and how well it works for long-term upkeep. Specification sheets, installation instructions, and application notes with lots of information make it possible to apply correctly and fix problems. Suppliers who provide thorough paperwork show that they care about their customers' success after the sale.

MXTD: Your Trusted Partner for High-Quality J30J Rectangular Connectors

With over 12 years of experience in the aerospace, military, and industrial automation fields, Xi'an Mingxi Taida Information Technology Co., Ltd. (MXTD) is the leader in making precision connectors. Our business has a great name for providing dependable, high-performance solutions that meet the strictest needs in a wide range of industries.

Comprehensive Product Portfolio

Our J30J rectangular connector product line includes 11 different specs, with core counts running from 9 to 144. This gives us a lot of options for a wide range of application needs. There are strict GJB2446A guidelines for each connection, but they are also flexible enough to meet unique design needs. This wide range makes it possible for purchasing teams to get all of their needs met by a single, reliable provider. The stretchy stranded pin contact technology we use in our connectors is more reliable electrically than traditional solid pin designs. These twist pin contacts keep their electrical performance stable even after being exposed to high and low temperatures and mechanical stress for a long time. The strong metal protective shell design protects well against electromagnetic radiation and guarantees long-lasting mechanical integrity.

Customization and Engineering Support

The engineering team at MXTD offers full customization services to meet the specific needs of applications that standard goods can't. Our OEM/ODM services include everything from changing the tail end setup to fit certain PCB plans to making totally unique connector designs that work best in certain environments. This gives customers the freedom to find the best solutions without sacrificing performance or dependability. For example, the tail ends of welding plate products are carefully changed to work with standard printed board hole spacing requirements. This care for fitting details makes it easier to put together and speeds up the manufacturing process for customers who use our connections in their systems.

Quality Assurance and Support Services

Through thorough testing and inspection processes, our quality control systems make sure that every connection meets or exceeds the standards set by the specifications. We have strict quality control standards for the whole manufacturing process, from inspecting the materials that come in to testing and packing the finished product. Customers depend on this methodical approach for reliable and consistent performance in important applications. Technical support services include video advice over the internet, detailed instructions, and helpful customer service with promised response times of one hour or less. Our dedication goes beyond the initial sale. We offer a normal one-year guarantee, with the option for longer coverage for certain uses that need it.

Conclusion

The J30J rectangular connector is a special kind of connector designed for making lots of electrical connections in tight spaces, rather than waterproofing itself. Knowing the difference between the different types of connectors and what they are used for helps you make smart purchasing choices that match performance needs with environmental concerns. Even though normal J30J connections don't have IP waterproof ratings, they can be protected from the environment when needed by using the right fitting methods and safety precautions. MXTD's complete connection solutions, along with their years of experience in the field and helpful technical support, give challenging applications the dependability and customization options they need.

FAQ

What is the official IP rating of the J30J rectangular connector?

The standard J30J rectangular connector does not carry an official IP waterproof rating in its basic configuration. The connector design prioritizes high-density electrical connections and compact form factor over inherent environmental sealing capabilities. However, appropriate installation techniques and protective measures can enhance moisture resistance for challenging environmental applications.

Can J30J connectors be used in outdoor environments?

J30J connectors can operate successfully in outdoor environments when properly protected through appropriate enclosures, sealing methods, and installation practices. While not inherently waterproof, these connectors perform reliably when shielded from direct moisture exposure through environmental housings or protective covers designed for outdoor applications.

How can I verify waterproof performance before installation?

Verification of environmental protection requires testing the complete installation, including connectors, cables, enclosures, and sealing methods. Mock-up testing under controlled conditions can validate protection effectiveness before deploying systems in operational environments. This approach identifies potential vulnerabilities and enables corrective measures before system commissioning.

Are there waterproof alternatives to the J30J connector?

Various connector families offer enhanced environmental protection through integrated sealing systems and specialized materials. Circular military connectors routinely achieve IP67 ratings, while industrial rectangular connectors may provide IP65 protection. However, these alternatives typically sacrifice contact density and compact size that make J30J connectors attractive for space-constrained applications.

What maintenance is required to preserve environmental protection?

Regular inspection of sealing elements, protective enclosures, and cable entry points helps maintain environmental protection throughout the connector's service life. Visual examination and basic continuity testing can identify degradation before moisture infiltration occurs. Preventive maintenance schedules based on environmental exposure severity optimize reliability while minimizing maintenance costs.
