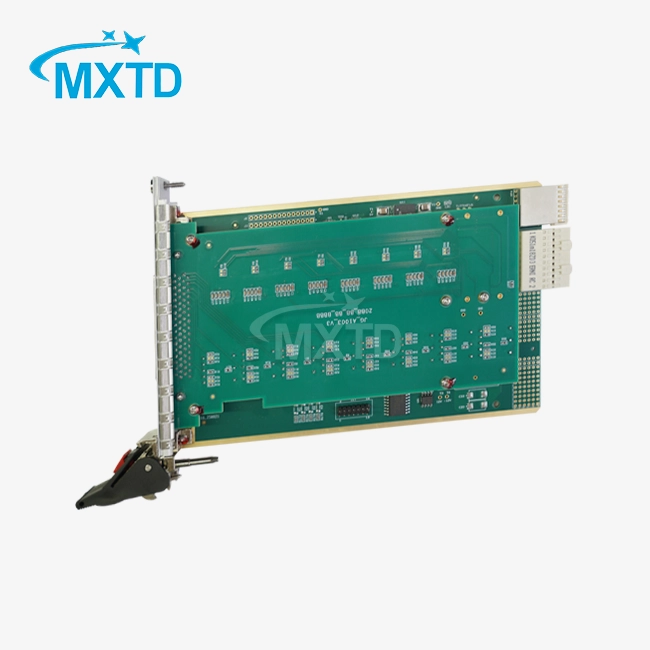

4-Channel 1M/4M 1553B Bus Simulation Board

4-Channel 1M/4M 1553B Bus Simulation Board

Are you looking for a reliable solution for avionics testing and simulation? Our 4-Channel 1M/4M 1553B Bus Simulation Board delivers exceptional performance for MIL-STD-1553B communication requirements. This progressed recreation board underpins different transport setups counting PXIe, CPCI, PCIe, and PCI interfacing. With over 12 a long time of industry ability, MXTD gives comprehensive testing services for aviation and defense applications. The board highlights double information rates of 1Mbps and 4Mbps, guaranteeing compatibility with different framework requirements.

Description

Our 1553B transport reenactment board speaks to cutting-edge innovation in flying communication testing. Built on standard 3U card measurements, this arrangement coordinating consistently into existing test situations. The board conveys comprehensive MIL-STD-1553B convention bolster with progressed highlights like double excess buses and high-precision timestamping.​​​​​​​

Each channel works freely with full BC, RT, and BM usefulness. Your testing capabilities grow essentially with synchronous operation modes and adaptable setup alternatives. The vigorous plan guarantees dependable execution over requesting natural conditions.

Specifications

Available Models

Applications

Your aeronautics testing ventures advantage from flexible application support:

Aerospace Frameworks Testing - Approve air ship communication frameworks with comprehensive convention recreation. Test flight control frameworks, route hardware, and mission computers effectively.

Defense Hardware Approval - Guarantee military communication frameworks meet exacting necessities. Confirm radar frameworks, weapon control units, and strategic communication networks.

System Integration Testing - Streamline complex multi-system approval forms. Test interoperability between diverse aeronautics components and subsystems.

Research and Advancement - Quicken unused item advancement with progressed reenactment capabilities. Model testing gets to be more effective with adaptable setup options.

Functionality

Bus Controller (BC) Features

Your framework control necessities are met with progressed BC usefulness. Underpins both subframe and message occasional modes for adaptable planning. Optimized message planning handles vector word transmission consequently. Non-periodic message inclusion empowers real-time communication adjustments.

Remote Terminal (RT) Features

Simultaneous emulation of up to 31 RTs provides comprehensive testing coverage. Single-buffered and circular-buffered data transmission modes accommodate different testing scenarios. All 1553B mode word codes receive full support for complete protocol compliance.

Bus Monitor (BM) Features

Complete 1553B transport data observing captures all communication action. Message sifting through command word channel tables empowers centered investigation. Onboard memory caches up to 131,072 checked messages for broad information collection.

Key Features

Dual Excess Design - Each channel gives A/B double excess transport capability for improved unwavering quality testing.

Flexible Interface Bolster - Different transport benchmarks guarantee compatibility with your existing test infrastructure.

High-Precision Timing - 1μs timestamp exactness empowers exact timing examination and synchronization testing.

Extensive Memory - Expansive capacity information capacity underpins expanded test sessions without information loss.

Advanced Mistake Infusion - Convention layer mistake infusion capabilities empower comprehensive blame testing scenarios.

Simultaneous Operation - BC, RT, and BM capacities work at the same time on each channel for comprehensive testing.

Custom Design

MXTD gets it that your testing necessities may be interesting. Our building group gives comprehensive customization administrations to meet particular extend needs. Whether you require adjusted shape components, improved natural details, or specialized program interfacing, we convey custom fitted solutions.

Our 4-Channel 1M/4M 1553B Bus Simulation Board serves as the foundation for custom developments. Extended temperature ranges, additional channels, or specialized connector configurations are readily achievable through our design services.

Why Choose MXTD？

Proven Mastery - Over 12 a long time of industry involvement guarantees profound understanding of flying testing challenges. Our group conveys arrangements that meet real-world requirements.

Comprehensive Bolster - Total computer program bundles incorporate drivers, libraries, and exhibit programs. Different working framework bolster guarantees consistent integration.

Quality Confirmation - Thorough testing strategies and quality control forms ensure solid execution. Each board experiences comprehensive approval some time recently shipment.

Responsive Benefit - Our specialized back group gives fast help for execution questions and investigating needs.​​​​​​​

FAQ

Q: What operating systems does the board support?

A: Standard support includes Windows 98/2000/2003/XP/7/10. Custom support available for Linux, xWorks, RTX, and LabVIEW RT.

Q: Can multiple boards operate in the same system?

A: Yes, multiple boards can operate simultaneously in the same chassis for expanded channel capacity.

Q: What software is included with the board?

A: Each board includes driver dynamic libraries and demonstration programs for quick setup.

Q: How many RT addresses can each channel simulate?

A: Each channel supports 1-31 RT addresses with simultaneous operation capability.

Q: What is the maximum message storage capacity?

A: The onboard memory can cache up to 131,072 monitored messages using circular buffering.
