Platform Products

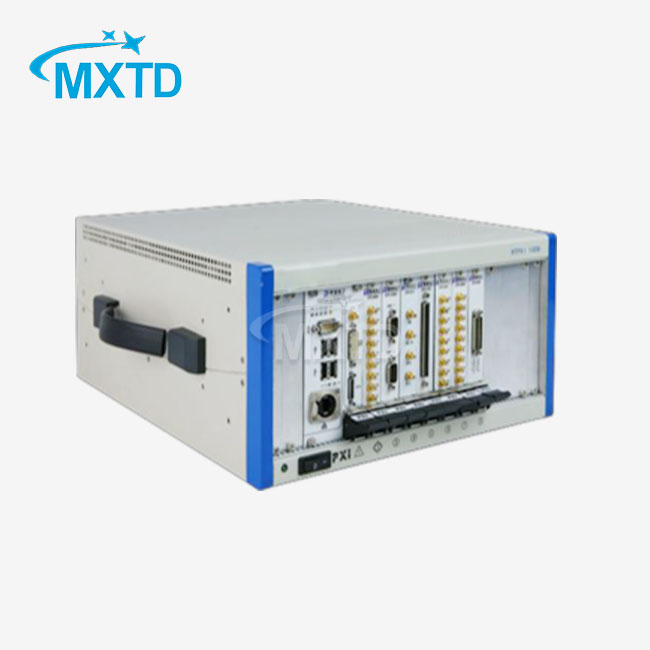

I. Computer Platform
1. Processor: Intel Core™ i7-7700HQ processor, base frequency 2.8GHz, turbo frequency 3.8GHz, 4 cores 8 threads, TDP 45W
2. Memory: Standard 16GB DDR4 memory, optional 32GB or 64GB
3. Disk: Standard 1TB SSD, optional 2TB or 4TB HDD/SSD combination
II. Expansion Interfaces
1. Bus Interface: 6 CPCI slots
2. Ethernet Ports: 2 x 100/1000Mbps RJ45 ports
3. USB Ports: 3 x USB 3.0, 2 x USB 2.0
4. Serial Ports: 5 x RS232, 1 x RS485/422
5. Display Interfaces: 1 x DP, 1 x HDMI
III. Power Supply
1. Power Supply: 400W
Meets NI product model requirements
OEM/ODM customization supported

1. 4U high chassis, accommodates standard 3U expansion cards, 14-slot design
2. Includes 1 PXle controller slot, 6 PXIe hybrid slots, 1 clock slot, 1 PXle slot, and 5 CPCI slots
3. Compliant with PXI-5 PXI EXPress Hardware Specification Rev1.1
4. AC100~240V input, 700W power supply
5. Operating temperature: -20°C~ +60°C
6. Storage temperature: -40°C~ +80°C
Meets NI product model requirements
OEM/ODM customization supported

1. Standard PXIe/CPCI/PCIe/PCI bus 3U board
2. Supports 4-channel MIL-STD-1553B bus communication module
3. Data rate is 4Mbps, supporting 1Mbps and 4Mbps mode selection
4. Each channel has 1 BC (bus controller), 1-31 RT (remote terminal), and 1 BM (bus monitor); BC, RT, and BM can be active simultaneously.
5. Each channel is an A/B dual redundant bus.
6. Supports 32-bit time stamp with a time stamp accuracy of 1μs.
7. Software-configurable response timeout: 0-32767s
Meets NI product model requirements
OEM/ODM customization supported
