Why Do Electricians Prefer UT501A Insulation Resistance Tester?

This is the UT501A Insulation Resistance Tester that electricians always choose because it has accurate measurements, is easy to use, has a lot of safety features, and is affordable. This simple digital megohmmeter has a measurement range of up to 5.5GΩ and four voltage outputs that can be adjusted to 100V, 250V, 500V, or 1000V. This lets workers quickly check the insulation quality of a wide range of electrical systems. Its 500g weight, easy-to-use single knob, and CAT III 600V certification make it a must-have for field use where dependability and ease of use directly affect output.

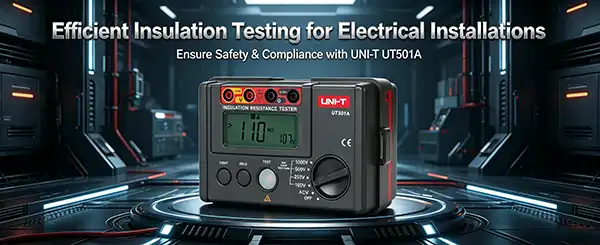

Understanding the UT501A Insulation Resistance Tester

In industrial settings, the UT501A Insulation Resistance Tester is a complicated but easy-to-use way to check the quality of electrical insulation. This precise instrument uses advanced switch-mode power source boost technology to make stable high-voltage DC inside. It is more stable and portable than standard hand-crank generators. When it is put on top of insulating materials, it measures leaking current to figure out insulation resistance values. Higher numbers mean better insulation performance, which is important for keeping electrical problems from happening.

Advanced Measurement Capabilities

These days, electricity testing needs to be flexible. The tester has four different test voltages that can be chosen based on the task at hand: 100V for low-voltage circuits, 250V for home setups, 500V for business equipment, and 1000V for heavy machines. This versatility gets rid of the need for multiple testers, making it easier for test and measurement engineers to buy the tools they need for full troubleshooting skills in a single instrument. The large resistance measurement range, from 0.01Ω to 5.5GΩ, can be used for both low-resistance continuity checks and high-resistance insulation proof. This covers all areas of electrical safety tests.

Robust Design and Technical Specifications

The hardware design includes a 1999-count LCD screen that is 70.6 mm × 34 mm and has blue lights for use in dimly lit areas. The information shown on the screen includes the current value of the resistance, the voltage range chosen, the battery state, and warnings about overloading. The input ports have LINE and EARTH terminals for checking insulation, as well as V and Ω terminals for measuring voltage and low resistance, respectively. This well-thought-out arrangement of terminals stops connection mistakes in the field, which is especially helpful for techs who are pressed for time in complicated industrial settings.

Compliance with International Safety Standards

Professional-grade equipment is different from consumer-grade equipment because it meets safety standards. The UT501A Insulation Resistance Tester has been certified by CE, UL, and RoHS, which means it meets European safety standards, North American electricity standards, and environmental rules. With its CAT III 600V grade, it can be used for installations at the distribution level and checking heavy-duty appliances. It also has double insulation for safety and automatic discharge circuitry. When high voltage is used, bells go off both audibly and visually, warning workers of potentially dangerous situations before they happen.

Why Electricians Trust UT501A: Key Benefits and Features

Professional electricians judge tools by how well they work, how reliable they are, and how useful they are in the field. The UT501A Insulation Resistance Tester performs exceptionally well in all three areas, making it a reliable partner for daily insulation checks. Its design theory strikes a balance between high-level technical sophistication and ease of use, taking into account the real-world challenges workers face when they are installing, maintaining, and fixing problems.

Precision and Consistent Performance

Diagnostic trust is built on the consistency of measurements. UNI-T's multimeter technology is used in the instrument's high-precision circuits. This applies tried-and-true measurement methods to high-voltage insulation checking. The 1999-count resolution is fine enough to find small amounts of insulation decay before they lead to major problems. Compared to industry standards, the device is very stable even when the temperature changes and it is tested over and over again. This is something that R&D managers look for in equipment that will be used in high-quality situations.

Intuitive Interface and User Resources

Operational complexity makes techs angry and raises the cost of training. The range selection with a single knob and the test start button remove the delays that come with menu browsing that happen with over-engineered alternatives. This easy-to-use interface speeds up measurement processes, especially when testing is done over and over again, and the speed directly affects the cost of labor. The user guides make it easy to understand how to use the product, and the maker provides a lot of help for procurement managers who are setting up standard testing procedures across multiple sites.

Built-in Safety Features for Demanding Environments

There are many risks in industrial settings that testing equipment has to be able to handle. The strong construction keeps the inside parts safe from mechanical shock, dust, and water damage that can happen in factories and building sites. After measurements are finished, automatic discharge circuits safety releases any stored charge. This keeps both workers and tested equipment safe from accidentally releasing energy. These safety measures are in line with the strict safety rules that technical directors apply in places like aerospace, military, and semiconductor factories where broken equipment can have very bad results.

Extended Battery Life and Portability

Field activities are limited by the lack of power. The low-power design runs on six normal AA batteries and can be used nonstop for up to 120 hours. This longer runtime means that batteries don't have to be changed in the middle of a shift, so workers can keep working while thorough facility checks are done. The 500g weight and cloth bag with carrying strap make it easy to use the tool handheld for long amounts of time without getting tired, unlike heavier options that put stress on the hands and arms during overhead installations.

Comparing UT501A with Other Insulation Resistance Testers

Objective comparisons of results are needed to make procurement choices. Leading names like Megger and Fluke control the insulation tester market thanks to their strong reputations. However, the UT501A Insulation Resistance Tester offers similar features at a much lower cost. System builders who are looking at cost-performance ratios should know how this tool compares to more expensive options.

Performance Metrics and Value Analysis

Premium tests from well-known brands usually cost more than $500. This is because they have extra features like data logging, Bluetooth connection, and wider measurement ranges that make them more valuable. The UT501A Insulation Resistance Tester focuses on the core functions that are needed for regular insulation checks, leaving out extra features that aren't needed in many situations. Organizations that value measurement accuracy and dependability over other features will get a lot out of this focused method. Test and measurement experts who do comparison tests always say that the device's measurement accuracy and repeatability are the same as those of tools that cost two to three times as much.

Application Suitability Across Industries

Test equipment has to meet different standards in different industries. Industrial automation facilities can choose from a wide range of voltages and run tests quickly, which helps with diagnosing problems on the production line. The ability to measure low resistance is useful for checking connection and contact resistance in electronics testing labs. Research schools like the automatic PI and DAR calculation tools because they let them look at how insulation ages without having to do the math by hand. System integrators who standardize tools across multiple client setups like this instrument because it can be used in a lot of different areas.

User Feedback and Industry Reviews

Field techs are the most trusted people to check out tools. Reviews from users always say good things about how easy it is to use, how stable the measurements are, and how long it lasts when used every day. Procurement managers have had good experiences with how quick suppliers are and how good their after-sales help is. The main problem is that there is no built-in storage for data. This is a problem for apps that need to keep a lot of records, and automatic logging would help the process. However, many users still prefer to record by hand because it is much cheaper than using data-logging options like the UT502A or UT515B models.

Procurement Considerations for B2B Clients

Buying tools strategically involves more than just the initial buy price. When technical leaders look at the UT501A Insulation Resistance Tester for use in their organizations, they should think about the routes of distribution, warranty policies, and long-term support systems that will protect the value of the investment and keep operations running smoothly.

Authorized Distribution and Supplier Verification

There are big risks to safety and accuracy with fake test tools. Xi'an Mingxi Taida Information Technology Co., Ltd. keeps up with approved distribution networks that make sure industry buyers get real goods. MXTD has been in business since 2014 and has over 12 years of experience in the field. They have developed strict quality control measures and advanced manufacturing techniques that make sure every instrument meets the standards for professional use. When reviewing possible vendors, purchasing managers should check the qualifications of the suppliers and ask for proof that the products they supply are real.

Bulk Purchasing Advantages and Logistics

Volume purchasing agreements help companies that want to standardize insulation tests across multiple sites. Within an hour of receiving a question from a customer, MXTD sets up production schedules based on the order parameters for unique setups. When you buy in bulk, you get a better price that lowers the cost per unit by a lot compared to buying one at a time. Logistics choices include shipping by land or air, with packing that is resistant to moisture, shock, and static electricity to keep precision instruments safe while they travel to places in the United States and other countries.

Warranty and After-Sales Support Framework

How long equipment lasts depends on how well the maker supports it. MXTD offers a one-year guarantee that covers problems with the way the product was made and parts that break down under normal use. The technical support team offers troubleshooting and practical questions through online video advice. This cuts down on downtime when problems happen in the field. As measurement standards change, free software updates keep tools up to date. In certain situations, suppliers are willing to discuss support extensions. This shows that they value long-term relationships with customers, which is important for technical directors who set up equipment replacement rounds that last more than one year.

Practical Guidance: How to Use and Maintain Your UT501A Tester

If you operate and maintain your instruments correctly for UT501A Insulation Resistance Testers, they will last longer and be more accurate. Before taking measurements in the field, technicians should learn about operating processes and safety rules. At the same time, organizations should set up regular repair plans to keep tools reliable.

Step-by-Step Operational Guide

First, make sure that the function number fits the type of measurement you want to make. To test insulation resistance, turn the knob to choose the right voltage level based on the equipment. For example, 100V is best for checking sensitive electronics, 250V is best for general-purpose circuits, 500V is best for motor windings, and 1000V is best for high-voltage industrial equipment. Set the black EARTH terminal to ground and the red LINE terminal to the circuit you want to test. Press the test button and keep pressing it down for the whole reading. The display shows the resistance values in real time; readings should be recorded once the device is stable, which usually takes a few seconds. Let go of the test button and wait for the automatic discharge to finish before you unhook the test leads.

Safety Best Practices During Operation

Testing with high power comes with its own risks that must be managed strictly. Make sure the power is off before connecting the test leads to the equipment. Make sure that everyone stays away from test points at a safe distance while measurements are being taken. When the test button is pressed, you should never touch any visible wires or conductors. Keep an ear out for clear high-voltage alerts that show a live test voltage output. Once the readings are done, wait for the visual discharge signs to go out before touching the test leads. When not in use, put the instrument in its fabric bag to keep the monitor screens and terminal plugs safe.

Storage and Handling Procedures

The quality of measurements is affected by the environment. Keep the device in a clean, dry place that is out of direct sunlight, high temperatures, and environments that are likely to damage it. When you store things for a long time, take the batteries out so that leaking doesn't damage the internal circuits. Check test leads for insulation loss on a regular basis and replace any broken wires right away to keep safety intact. Avoid using chemicals to clean display panels because they can damage plastic parts. Instead, use soft, dry cloths. These simple care steps keep instruments working well for years to come.

Conclusion

When it comes to real-world electrical testing needs, the UT501A Insulation Resistance Tester is the best choice because it has a wide range of measurement options, is easy to use, and has strong safety features. Professional electricians like how accurate the measurements are, and buying managers like how competitive the prices are and how well the seller supports the product. If a company wants to do accurate insulation testing without spending a lot of money, this device is perfect for them. It can be used for industrial automation, electronics testing, and building maintenance. Because it has been used before and is cheap, it is a good choice for building the infrastructure for regular tests.

FAQ

1. What makes the UT501A suitable for industrial environments?

The tester is CAT III 600V certified and has double insulation protection, automatic discharge circuits, and a tough design that can handle the kind of mechanical shock and weather exposure that you'd find in a manufacturing facility. High-voltage alarms that go off both audibly and visually warn of dangers right away while the machine is working.

2. Can this instrument assess insulation aging characteristics?

Yes, the device can automatically calculate the Polarization Index (PI) and the Dielectric Absorption Ratio (DAR). This lets a professional rate the degradation of insulation without having to do the math by hand. These tools help figure out what repair needs to be done before something breaks.

3. How does the UT501A compare in accuracy to premium brands?

The tool uses high-precision measurement hardware that gives it the same level of accuracy as much more expensive devices. Field testing shows that the accuracy and stability of measurements meet the needs of professional diagnostics in a wide range of situations.

4. What after-sales support does MXTD provide for B2B clients?

MXTD offers a guarantee that lasts for one year, free software updates, online video technical support, and a quick response time of one hour to customer questions. For large-scale operations, special support plans can be worked out.

Partner with MXTD for Your Insulation Testing Needs

Xi'an Mingxi Taida Information Technology Co., Ltd. has been providing accurate measurement services to the aerospace, military, research, and industrial automation sectors for more than 12 years. As a well-known company that sells UT501A Insulation Resistance Testers, we keep a close eye on quality to make sure that every tool meets the standards for professional use. As part of our wide range of products, we offer PXIe frames, testing systems, and precision plugs that can be used with your measurement infrastructure. Get in touch with our technical team at manager03@mxtdinfo.com for full details on our insulation resistance tester for sale, cheap bulk prices, and ODM/OEM solutions that are specifically designed for your needs.
