Which NI-compatible 64-channel digital I/O module supports 100MHz trigger?

It can be hard for engineers and sourcing workers to find NI-compatible PXIe 64-channel digital I/O modules. At the moment, it's still not possible to get real 100MHz trigger rates on all 64 channels at the same time because of hardware limitations and concerns about signal integrity. Most high-performance modules, like those made by National Instruments and compatible third-party companies like MXTD, can handle trigger frequencies between 10MHz and 50MHz for full 64-channel operation. Higher frequencies are possible for lower channel counts or certain trigger modes.

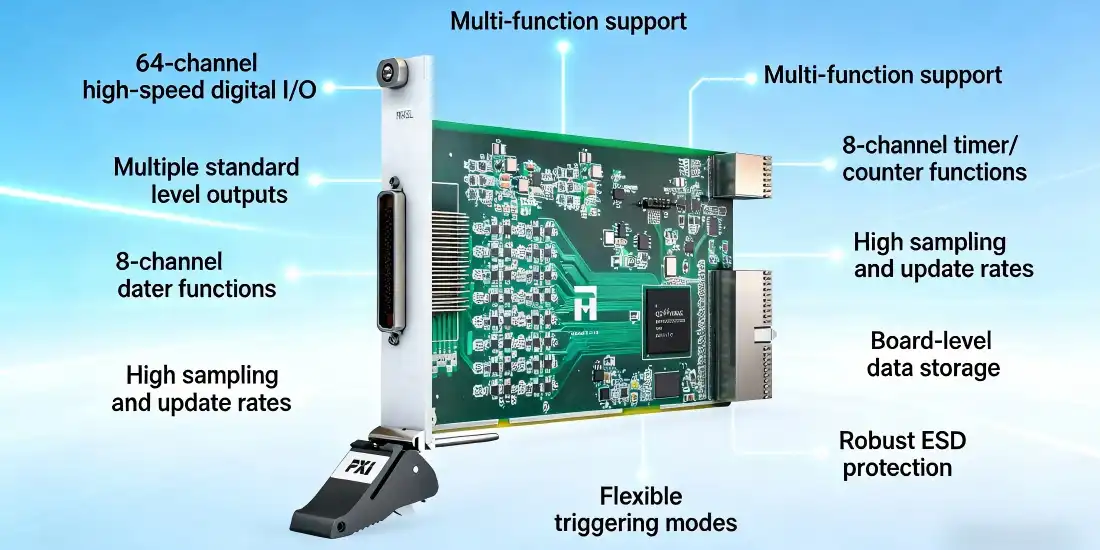

Understanding NI-Compatible PXIe 64-Channel Digital I/O Modules

PXIe 64-channel digital I/O units are the backbone of current automated testing settings. They offer high levels of flexibility and signal interfacing density that meet strict industry standards. These high-tech devices handle many different types of signals on many channels, which lets you try things that normally would need many separate units.

Core Technology and Architecture

The main idea behind these modules is that they can handle both input and output tasks very precisely by using advanced signal processing. Each channel works on its own, so engineers can set up mixed input/output configurations that meet the needs of the tests. These modules are especially useful for high-speed apps because the PXIe interface offers better bandwidth and time alignment than standard PCI versions.

Modern PXIe digital I/O units have high-tech timing engines that make sure that signal processes are coordinated across all channels while keeping tight tolerances for synchronization. When working with complicated test routines that need exact timing relationships between many signals, this design comes in very handy.

Channel Configuration Comparison

Procurement workers can make better choices when they know the pros and cons of each channel configuration. 32-channel modules have faster trigger rates and better performance for each channel, but they need more chassis spots to have the same number of channels. On the other hand, 128-channel units make the most of each slot while possibly lowering some speed features.

The 64-channel configuration is the best mix of density and speed, with enough channels for most uses while keeping signal integrity and timing features that are easy to control. Because of this "sweet spot," 64-channel units are now the best choice for checking semiconductors, making sure cars work right, and using them in spacecraft.

Key Performance Specifications

Precision timing is the most important factor affecting trigger performance, and new units can achieve timing resolutions of less than one nanosecond. Most of the time, input/output voltage levels can work with more than one logic standard. This includes TTL, CMOS, and industrial voltage levels up to 48V. Measures of signal integrity, like crosstalk reduction and rise time characteristics, have a direct effect on how well the module can reproduce signals accurately at higher frequencies.

The Challenge: Finding a 64-Channel PXIe Module Supporting 100MHz Trigger

Getting NI-compatible PXIe 64-channel digital I/O modules to have a 100MHz trigger frequency is very hard because of basic physics and engineering limits. More complex testing needs come up in areas like semiconductor analysis, high-speed digital validation, and advanced production processes. These areas need these kinds of high-frequency starting capabilities.

Technical Barriers and Limitations

When trying to keep 100MHz trigger rates across 64 channels at the same time, signal timing is the biggest problem. Each channel needs to work together perfectly in terms of timing, and as the frequency goes up, the amount of time that can be off goes down too. It gets harder to distribute the clock across multiple channels as the frequency gets closer to 100MHz.

Another big problem is channel interference, which happens when high-frequency signals on neighboring channels cause electromagnetic coupling that breaks the structure of the signal. This problem is made worse by the fact that 64 channels are close to each other in a single module. To keep signal quality high, complex insulation and grounding methods are needed.

Hardware limitations include the limited bandwidth of switching circuits, the time it takes for signals to travel through signal shaping electronics, and the effects of heat on component performance at high frequencies that last for a long time. Because of these things, the trigger frequencies that can actually be used are limited.

Industry Requirements Driving High-Frequency Demands

To test high-speed digital connections and figure out how well a device works in real-world situations, advanced semiconductor testing needs trigger rates that get closer and closer to 100MHz. Modern computers and transmission chips work at gigahertz rates, so being able to trigger at 100MHz is necessary for full validation.

High-frequency triggering shortens test cycle times and lets more advanced fault detection methods work in manufacturing test settings. Test engineers can model complicated operating scenarios that show intermittent failures and timing-sensitive flaws when they can make quick trigger sequences.

Common Misconceptions About Trigger Performance

A lot of people who work in procurement think that the stated trigger frequencies are the same for all channels and working modes. In fact, maximum trigger rates usually only work with certain setups or lower channel numbers. Knowing these limits will keep you from being disappointed and help you choose the right modules for your needs.

Another misunderstanding is about how sample rate and trigger frequency are related. Even though these specs are linked, they describe different parts of the module's performance and can't be used together to judge its abilities.

How to Choose the Right NI-Compatible PXIe 64-Channel Digital I/O Module for Your Needs

To choose the best NI-compatible PXIe 64-channel digital I/O modules, you need to carefully think about a lot of things, not just the basic specs. These include software compatibility, support needs, and long-term stability. To make sure long-term value, the decision process should take into account both present wants and expected future needs.

Critical Selection Criteria

Support for trigger frequencies must match the needs of each application, keeping in mind that the highest rates may not work in all working modes. The number of channels that are needed should include room for growth and development in the future. Initial selection factors are often based on budget, but the total cost of ownership should also be taken into account, which should include software licensing, support costs, and any possible customization needs.

The ability to integrate software can have a big effect on development times and the amount of upkeep that needs to be done over time. Time-to-market for test systems is sped up by modules that come with large sets of examples and full support for all drivers.

Industry-Specific Requirements

For automotive uses, units that can handle a range of voltage levels and effectively block noise in factory settings are usually needed. Being able to connect straight to a vehicle's electrical systems without having to do any extra signal shaping makes the system simpler and more reliable.

Modules that have been tested in a lot of different environments and have a history of being reliable are needed for aerospace uses. Because aerospace testing is so important, provider stability and long-term help available are important factors in choosing a source.

Modules with a lot of channels and quick setup times that cut down on test cycle time are useful in places that make electronics. Often, the extra cost of higher-performance units is worth it because they save money on test time.

Interface Standard Comparisons

As compared to PCIe or USB, PXIe has better timing synchronization and higher speed, which makes it the best choice for demanding apps. PXIe systems have built-in timing and synchronization features that make multi-module setups and complicated test routines much easier to use.

For simple tasks, USB-based options might be cheaper, but they don't have the timing accuracy and synchronization features needed for high-performance tests. PCIe modules work well, but they need extra time and infrastructure to work together in sync with other modules.

Purchasing and Procurement Insights for PXIe 64-Channel Digital I/O Modules

When global businesses buy specialized test equipment from each other, they need to pay close attention to the skills of the suppliers, their ability to provide support, and the equipment's long-term availability. Because NI-compatible PXIe 64-channel digital I/O modules are technical, it's especially important for suppliers to have the right skills and provide good support for operations to go well.

Supplier Network Evaluation

Certified sellers have direct connections with makers and can get you the newest versions of products and technical information. As part of these relationships, customers often get faster access to help and better prices when they buy in bulk. Checking the technical knowledge of a seller makes sure that they can help with complicated setups and troubleshooting situations.

When people are sent to different countries, time zones, and local laws can make it harder for support to work properly. This is why it's important to have regional support skills. Suppliers that are present all over the world can offer uniform levels of service in many places and make it easier to use standard purchasing procedures.

Pricing Structure Analysis

When you buy more than one item at a time, you usually get a big discount because of the volume discount. The break points change by manufacturer and product line. Knowing these price levels helps you choose the best amount to buy to save the most money. Organizations that qualify may be able to save even more through government and educational price schemes.

Software license, calibration services, and choices for longer warranties that affect long-term ownership costs should all be added to the total cost. Some sellers offer sets that are more cost-effective than buying each part separately.

Support and Warranty Considerations

The level of technical support varies a lot between providers. Some offer full application engineering help, while others only provide basic product support. Because PXIe systems are so complicated, suppliers often need to offer more than just product support. They also need to be able to help with system integration.

The warranty terms should cover both replacing the product and fixing it, and they should make it clear what the limits of coverage are and how long it will take for help to arrive. Options for longer warranties may be very helpful for protecting important uses where the costs of downtime are higher than the warranty fees.

Conclusion

Finding PXIe 64-channel digital I/O modules that work with NI and have 100MHz trigger rates shows how difficult it is to make high-performance test tools. Even though it's still hard to get real 100MHz speed across all channels, many module makers make modules with impressive features that can handle the most demanding tasks. Understanding your application's unique needs and choosing modules that offer the best mix of speed, compatibility, and cost-effectiveness are the keys. Modern alternatives from companies like MXTD show that there are other choices besides the traditional NI products. These options often offer better value by letting you customize them and giving quick support.

FAQ

1. What distinguishes NI-compatible modules from genuine NI products?

NI-compatible modules maintain software compatibility with LabVIEW and other NI development environments. They may also offer better features, lower prices, or ways to customize the product that aren't available with standard NI goods. Because these modules use similar computer interfaces and driver designs, they can be easily added to test systems that are already in use.

2. Can any current module truly sustain 100MHz triggers across all 64 channels?

Due to limits in current technology, it is very hard to achieve steady 100MHz triggering across all 64 channels at the same time. Most high-performance modules work best with fewer channels or certain working modes to get the highest trigger rates. Full-channel performance usually ranges from 10MHz to 50MHz, but this can change based on the configuration and signal conditions.

3. Which software environments work best with these modules?

LabVIEW is still the most popular development environment because it has a lot of example packages and full support for drivers. TestStand does a great job of integrating automated test processes, and custom C/C++ apps give you the best performance for your specific needs. The choice relies on the skills of the development team and the needs of the application.

Contact MXTD for Your High-Performance Testing Solutions

We at MXTD have a wide range of NI-compatible PXIe modules and can also make unique solutions to meet your most difficult test and measurement needs. Our skilled engineers are available to help you with technical issues and can create custom setups that meet your trigger frequency and channel density needs. As a reliable provider of NI-compatible PXIe 64-channel digital I/O modules for sale, we offer low prices, a history of dependability, and a lot of options for modification. Get in touch with our expert sales team at manager03@mxtdinfo.com to talk about your needs and get full information on our newest high-performance modules. We answer all of your questions within an hour and help you with every step of the buying process.
