Where to buy genuine IP67 J30JY waterproof rectangular connectors?

It takes careful source selection and testing to find real IP67 J30JY waterproof rectangular connectors. You can get these military-grade connectors from approved distributors, original equipment makers, and providers of specialized electrical parts. The IP67 J30JY waterproof rectangular connector has better sealing against dust and water immersion up to one meter for thirty minutes. This makes them necessary for aerospace, defense, and industrial automation applications where dependability can't be compromised.

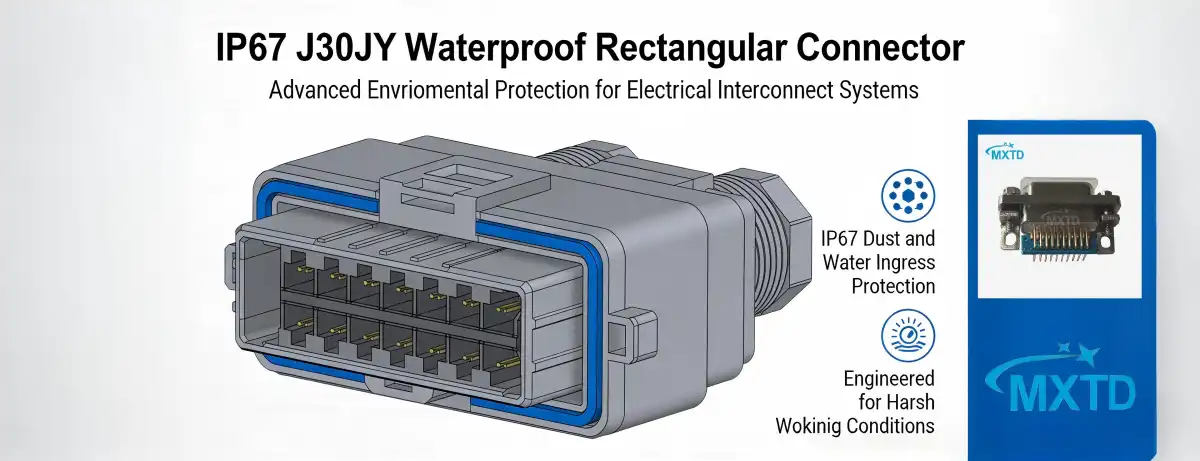

Understanding the IP67 J30JY Waterproof Rectangular Connector

For electrical interconnect systems, the IP67 J30JY line is a big step forward in environmental protection technology. The top-notch performance of these connectors comes from careful engineering that solves the basic problems of moisture and dirt in tough working conditions.

Technical Specifications and Performance Parameters

With the IP67 rating, you are fully protected against solid particles and short-term soaking in water. The "6" rating means that it is completely protected against dust getting in, and the "7" rating means that it is completely protected against water immersion for up to 30 minutes at a depth of 15 centimeters to 1 meter. Because of this, these connections can be used outside, in the marine environment, and in industry settings where they will be exposed to dirt and other harmful substances. Contact resistance is usually less than 10 milliohms, which means that there isn't much signal loss across the link contact. In normal conditions, the insulation resistance is higher than 5000 megohms, and it stays at least 1000 megohms when it's damp and hot. Operating temperature ranges from -55°C to +125°C, which can handle the harsh conditions found in defense and military uses.

Design Features and Construction Quality

There is better mechanical stability with rectangular shapes compared to circular ones, and they make better use of room in electrical enclosures. The connection shell is made of materials that don't rust and has special surface processes, like chemical nickel plating or passivation, to make it resistant to salt spray. Glass insulator technology fits the thermal expansion rates of the contact materials and shell components. This keeps the seal from breaking down when the temperature changes. The twist-pin contact method keeps the electricity flowing even when mobile platforms are vibrating or being hit by shocks. A contact pitch gap of 1.27mm lets you make setups with a lot of components without affecting their electrical or mechanical performance.

Comparison of IP67 J30JY Connectors with Other Waterproof Connectors

Knowing how the different ingress protection rates work differently helps buying teams make smart choices based on the needs of the application.

IP Rating Analysis and Application Suitability

Connectors with an IP65 rating protect against dust and water jets coming from any direction. This means they can be used in washdown areas and outdoor setups that will be exposed to mild weather. But they can't handle being submerged in water for a short time, which limits their use in situations where water immersion might happen.IP68-rated connections are better than IP67-rated connectors because they protect against continuous submersion under the conditions set by the maker. Even though IP68 plugs are better at keeping water out, they usually cost more and come in bigger sizes that make it harder to fit them into designs with limited room. When it comes to protecting the environment and being useful, the IP67 J30JY connection is the best choice. Because it can be submerged temporarily, it can handle most industrial situations while still being small and cheaper than options that use constant submersion.

Performance Comparison with Alternative Rectangular Connectors

Standard rectangle plugs that aren't sealed against the environment allow basic electrical connections but don't protect against water and other contaminants. These links work well in controlled settings but break down quickly in harsh ones, which means more repair costs and system downtime. Through glass-to-metal sealing technology, hermetically sealed rectangular connections offer better weather protection, but they usually cost a lot more than IP67 J30JY waterproof rectangular connectors. Hermetic sealing is needed when there needs to be complete protection against gas leakage or when working in corrosive environments .The J30JY line is a great deal because it protects the environment reliably at a reasonable price. Because it has been used successfully in the military and aerospace industry, it is reliable over time and in harsh situations, and it is still cost-effective for business use.

Where to Buy Genuine IP67 J30JY Waterproof Rectangular Connectors

Finding approved sellers who can provide real goods with the right paperwork and support services is key to successful procurement.

Authorized Distributor Networks and Verification

Established sellers of electronic parts keep in touch with the original makers and ensure authenticity through good supply chain management. These wholesalers usually offer technical support, help with applications, and simplified buying processes that make it easier for engineering teams to get what they need. Checking to see if a distributor is authorized means looking at the official dealer lists on the manufacturer's website and calling the manufacturer's reps to confirm certifications. Authorized wholesalers give quality assurance programs the right paperwork, like test results, badges of compliance, and records of traceability.When compared to foreign sellers, regional distributors usually keep more stock in-house and offer faster shipping times. They know the rules in their area and can help with the paperwork that is needed to follow them for government contracts or businesses that are controlled.

Direct OEM Sourcing and Bulk Procurement Advantages

Original equipment manufacturers have a lot of benefits for both big orders and specific needs. Direct shopping gets rid of markups for distributors, which lowers the total cost of buying large amounts. When you work with an OEM, you can get technical help, make unique setups, and get priority when there are supply shortages. By buying in bulk, you can take advantage of economies of scale that lower the cost per unit while keeping up with production plans. Most manufacturers offer bulk discounts starting at moderate amounts. This makes direct sourcing a good option for long-term projects rather than one-time purchases. Standard configuration lead times range from two to six weeks, based on how much the maker can make and how much demand changes. For custom configurations, the first order may take eight to twelve weeks. After that, deliveries will follow normal wait times once the tools and processes are set up.

International Shipping and Logistics Considerations

When transporting precision connectors, they need to be handled carefully so that the delicate contact systems and closing surfaces don't get damaged. Specialized packaging with anti-static protection, moisture barriers, and shock absorbers keeps the product's integrity while it's being shipped. If you need something quickly, air freight can get it to you faster, but it costs a lot more to ship. Ocean freight is a cheap way to ship big amounts, but it takes longer to get there, so you need to plan. For customers who buy from the same seller often, area warehouses that cut down on shipping times and costs are helpful. Customs processes and import taxes are different in each country, which can change the total landing costs. Working with expert freight forwarders can help you deal with rules and regulations and cut down on wait times at border points.

How to Ensure the Right Selection and Proper Installation

To successfully apply a connector, you must match the technical requirements to the needs of the program and follow the right installation steps.

Selection Criteria and Application Matching

The current carrying capacity must be higher than the highest predicted load, with enough room for temperature derating and wear and tear. The materials used for contact plating should be able to withstand corrosion in the area where they will be used. For example, gold plating works best for low-level signals, while tin plating is a cheaper option for power uses. In this case, IP67 J30JY waterproof rectangular connectors are considered. When doing a mechanical stress study, the amounts of vibration, shock loads, and temperature changes that the connection will go through during its lifetime are taken into account. Cable strain relief systems need to be able to handle the movement that is expected without putting stress on the connection contact. An environmental exposure review looks at things like high and low temperatures, chemical compatibility, and the amount of UV rays that can affect the materials used in connectors and how well they seal. In coastal settings, resistance to salt spray is very important. In aircraft settings, resistance to fuel and solvents is important.

Installation Best Practices and Quality Assurance

Cleaning the matching surfaces well and making sure the contacts are lined up correctly before engaging them are the first steps in a proper fitting. To get the best sealing performance without hurting the threads or contacts, it is important to carefully follow the torque specs for threaded coupling mechanisms. To get a cable ready, it needs to be carefully stripped and crimped in a way that makes sure the contacts work well without hurting the wire strands or insulation systems. Installing a strain relief keeps the connection safe from mechanical stress while keeping the purity of the external sealing. After installation, testing should include checking for continuity, measuring insulation resistance, and looking at sealing surfaces visually. Testing the software in real-world working conditions makes sure it works well and finds any problems that might happen before it is put into use.

Benefits of Using Genuine IP67 J30JY Waterproof Rectangular Connectors

When compared to fake or inferior products, real connections are much more reliable, work better, and have a lower total cost of ownership.

Reliability and Performance Advantages

Genuine connectors go through strict quality control and testing processes that make sure they work the same way for the whole time they're in use. The specs for materials, the ways they are made, and the way they are put together all follow well-known rules that make sure they work as expected in certain situations. When applied and fitted correctly, the failure rate in the field for genuine connections is usually less than 0.1% per year. This means less maintenance needs, less system downtime, and better working efficiency for apps that are very important. Performance stability across production lots makes sure that parts can be switched out and makes managing extra parts easier. Connectors made with standard methods have the same electrical and mechanical properties, so there are no worries about compatibility during upkeep and updates.

Long-term Economic Benefits and Support Services

Genuine connections may cost more at first than other options, but their longer life and higher level of stability make them more cost-effective overall. Less failure means less money spent on repairs, replacements, and system downtime, all of which can add up to more than the difference in the original purchase price. Support services from manufacturers include technical help, application advice, and product training that help make sure the best performance throughout the span of the product. Warranty coverage protects against problems with the way the product was made and shows that the company that made it trusts the quality of the product. Having access to alerts when a product becomes obsolete and suggestions for replacements makes it easier to deal with long-term supply issues that are common in defense and aerospace projects. Military-standard connectors are usually kept in stock longer by manufacturers than market options.

Conclusion

To get the best performance from real IP67 J30JY waterproof rectangular connectors, you need to carefully choose the seller, make sure the technical specifications match, and follow the right installation steps. These connectors are very reliable and protect against the environment very well, making them perfect for hard uses in aircraft, military, and industrial automation. Working with approved resellers or direct OEM providers makes sure that the product is real and gives you access to warranty and technical support services that are important for mission-critical uses.

FAQ

Common questions about buying and using IP67 J30JY connectors help answer common worries that people have when they are choosing and buying.

How can I verify the authenticity of IP67 J30JY connectors?

Real connectors have the right maker markings, lot codes, and approval paperwork that can be checked through official channels. Authorized sellers give out badges of compliance and records of product tracing that prove the products are real and meet all standards.

What warranty coverage is typical for these connectors?

When plugs are used within certain limits, most reputable manufacturers offer a one-year warranty against production flaws. For important uses or large purchases, direct manufacturer agreements may offer choices for longer warranties.

Are these connectors suitable for extreme temperature applications?

The J30JY line works consistently in temperatures ranging from -55°C to +125°C, which means they can be used in most defense and military applications. Through unique designs, certain material choices, and contact platings can be made to work best in high temperatures.

What lead times should I expect for standard and custom configurations?

Depending on the manufacturer's stock and demand, standard models usually ship between 2 and 6 weeks. For custom configurations, the first order takes 8 to 12 weeks, and after that, deliveries follow normal wait times once the manufacturing process is set up.

Make Your Procurement Smart and Secure Today

The IP67 J30JY waterproof rectangular connectors that MXTD sells are of the highest quality and meet strict military and aircraft standards. Our skilled technical team offers full help for applications and customization services that are suited to your needs. With more than 12 years of experience in the field, we know how important it is to have solid connector options for tough jobs. Get reasonable quotes and a quick technical answer within an hour by emailing manager03@mxtdinfo.com to our procurement experts to talk about your IP67 J30JY waterproof rectangular connector supplier needs.
