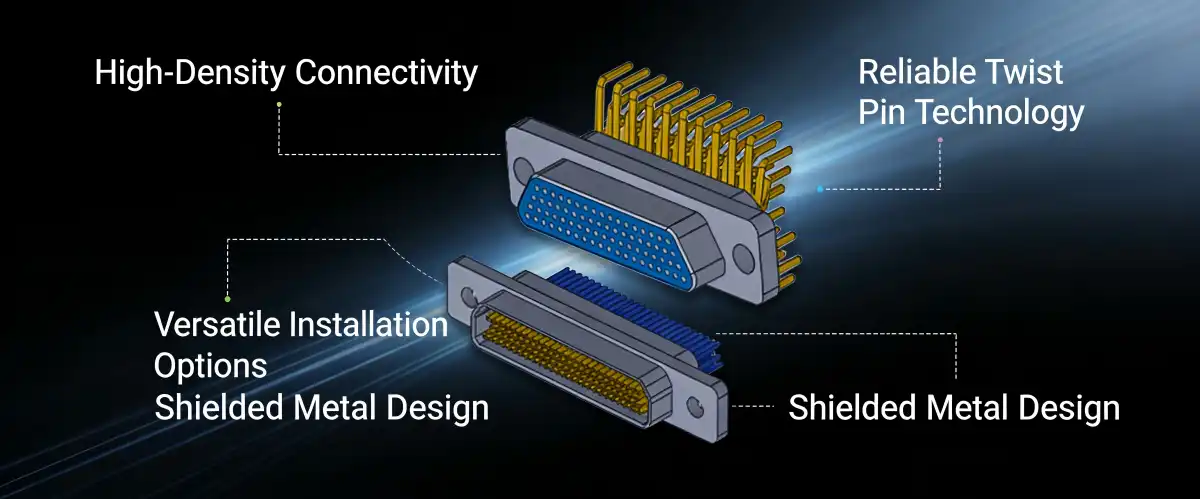

What Are the Key Features of J30J Rectangular Connectors?

The J30J rectangular connector stands as a premier micro rectangular electrical connector solution designed for mission-critical applications across aerospace, defense, and industrial automation sectors. These connectors feature high-density pin configurations with 1.27mm lateral spacing and 1.1mm row spacing, accommodating 9 to 144 cores in eleven distinct specifications. Built to GJB2446A standards (equivalent to MIL-C-83513), they deliver exceptional reliability through elastic stranded pin contacts and protective metal shielding shells, making them ideal for space-constrained installations requiring robust signal and power transmission capabilities.

Overview of J30J Rectangular Connectors

In the military, defense, and industrial automation industries, the J30J rectangular connector is the best micro rectangular electrical connector option for mission-critical uses. With 1.27 mm of lateral spacing and 1.1 mm of row spacing, these connections have high-density pin layouts that can fit 9 to 144 cores in eleven different sizes. They are made to GJB2446A standards, which are the same as MIL-C-83513, and are very reliable thanks to their secure metal shielding shells and elastic stranded pin contacts. This makes them perfect for setups with limited room that need to send strong signals and power.

J30J rectangular connectors are a safe way to connect to other devices and are used in many industries, such as manufacturing, aerospace, defense, and robotics. These micro rectangular connectors are the result of cutting-edge engineering that was made to meet the exact needs of current electronic systems that need to save space and keep signals safe.

According to the main idea behind these connectors' design, they should have strong performance features that allow safe signal and power transfer even in the toughest operating environments. Key features, like the arrangement of the pins, the way the device works electrically, and its small size, make it very flexible for a wide range of uses.

Military-Grade Standards Compliance

The J30J line closely follows the GJB2446A standards, which are the same as the American MIL-C-83513 standard. This compliance makes sure that it will work perfectly with MDM series products that are widely used in military and aircraft uses in the United States. Standardization gives people who work in buying trust in the reliability of products and their ability to work with other systems.

Comprehensive Pin Configuration Options

The connector series comes in eleven different configurations, running from 9 pins to 144 pins. These include 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 core choices. This wide range can be used for a lot of different things, from simple control messages to complicated data transmission systems that need a lot of pins.

The tail ends of the welding plate products have been carefully changed so that they fit perfectly with the standard hole spacing requirements for printed circuit boards. This design consideration makes installation much easier and cuts down on the time it takes for system engineers to put together complicated electronic parts.

Technical Features and Performance Characteristics

When you look closely at the technical side of J30J connections, you can see that they are made with complex parts that are meant to work best with electricity and metal in harsh conditions. The focus on optimizing pin structure and signal integrity makes sure that there is minimal electromagnetic interference and that transmissions are reliable.

Advanced Contact Technology

The J30J rectangular connector incorporates elastic stranded pin contacts, also known as twist pins, which provide better electrical connectivity than standard solid pin designs. Even when they are subjected to mechanical stress, vibration, and temperature changes, which are common in aircraft and industrial settings, these contacts keep their electrical performance stable.

The twist pin technology makes it possible for more joining cycles than the industry standard, and the low contact resistance stays the same throughout the connector's lifetime of use. This function is especially useful in situations where the device needs to connect and separate often or is exposed to harsh conditions.

High-Density Design Specifications

The mechanical specs show that the dimensions are surprisingly small, with a lateral spacing of 1.27mm and a row spacing of 1.1mm. This allows for a high number of touch points while still having a small size. These measurements let system designers maximize connections while minimizing space allocation, which is very important for aerospace applications that need to be light and industrial setups that don't have a lot of room.

When installing complicated systems with many links that need to work closely together, the small profile makes the process easier. The exact dimensional limits make sure that the connectors always work well together and remove any worries about interference during system assembly.

Protective Shielding and Durability

Each connection has a strong metal protective shell that protects against electromagnetic interference (EMI) and wear and tear on the internal contact elements. If you choose to use it, the metal tail cover will make it last longer against things like water, dust, and mechanical pressure.

These safety features make it easier for the device to work in places with vibration, shock, corrosion, and big changes in temperature, like aircraft, military, and industrial automation. The protection works well enough to meet strict EMI/EMC standards that are needed for electrical systems that are sensitive.

Comparing J30J with Other Rectangular Connectors

Knowing the pros and cons of J30J connections compared to other options helps procurement workers make smart choices based on the needs and performance standards of each application.

Performance Comparison with J40 and P30J Series

When you look at the mechanical and electrical differences between connection families, the J30J series has more contacts and better use of the room than the J40 series. The smaller pitch sizes allow for more pins to fit into the same-sized housings, which improves utility without making the system bigger.

The J30J rectangular connector is better at protecting against electromagnetic interference (EMI) and sealing against the surroundings than the P30J connector. The metal protective shell design protects against electromagnetic interference better, which makes it ideal for uses that need to keep signals completely pure.

Rectangular vs. Circular Connector Advantages

When compared to circular connectors, J30J connectors' rectangular shape saves a lot of room. This is especially true in panel-mounted applications where multiple connections need to be installed close together. The rectangular shape makes good use of the panel space available while still leaving enough space for wire handling.

When you need to be able to route cables in any direction, circular connectors are better. But when you need to make the most of a room, a rectangular design is better when moving cables in a predictable way. The flat profile form makes installation easier and lowers the overall depth needed for the system.

Real-World Performance Reliability

Industry statistics show that J30J connections are very reliable, with failure rates that are much lower than the average for similar micro rectangular connectors in the industry. Twist pin contact technology helps to stretch operating life and keep electrical performance even when conditions are tough.

System design is more flexible because it can work with different types of cables, such as bendable and semi-rigid ones. This compatibility makes buying less complicated and allows organizations with different connection specs to standardize across multiple product lines.

Procurement Considerations for J30J Rectangular Connectors

To get J30J connectors, you need to know the main things that affect choosing a seller, keeping costs down, and making sure the supply chain works. Forming relationships with approved distributors and reliable OEM suppliers guarantees the quality of the product and full technical support.

Supplier Qualification and Authorization

Finding approved distributors is a very important step in making sure that the product is real and that the guarantee covers it. The MXTD company works directly with makers and gives them detailed paperwork that proves their products meet military and industry standards.

Understanding the different ways to buy in bulk, the minimum order quantity (MOQ), wait times, and shipping procedures makes managing the supply chain easier. Our procurement specialists work closely with customers to make sure that the time and amount of orders are just right. This lowers the cost of keeping goods on hand while still making sure that there is enough stock.

Cost Analysis and Warranty Provisions

Procurement workers can make more accurate budget projections and cost management plans when they have clear information about what affects prices. Pin count, plating requirements, weather sealing needs, and order amounts are some of the things that affect the price of a connection.

The warranty usually covers manufacturing flaws for one year, but for high-volume uses, there are choices for longer warranties. Knowing about guarantee terms and available technical support can help lower the risks of deploying a product and ensure its long-term success.

Industry-Leading Supplier Partnerships

Working with well-known stars in your field gives you access to a wide range of technical knowledge and a supply chain that has been shown to be reliable. Because MXTD works with component makers, they can offer reasonable prices and keep strict quality control standards throughout the whole production process.

As part of the supplier review process, technical help, customization choices, and the availability of service after the sale should all be looked at. Throughout the lifetime of a product, these factors have a big effect on the total cost of ownership and the speed of operations.

Application Areas and Industry Use Cases

J30J rectangular connector solutions prove integral across key industry sectors, including automation, transportation, energy production, and manufacturing, where dependable connectivity underpins operational efficiency and system reliability.

Aerospace and Defense Applications

In aircraft uses, these connectors make it possible for flight control systems, navigation tools, and communication devices to connect to each other in ways that would not work without them. They are perfect for both commercial and military airplane sites because they are very reliable and don't weigh much.

Rugged construction and EMI protection are useful for defense uses because they are needed for electronic warfare systems and secure communication gear. Following military standards makes sure that it works with current supply chains and buying processes for defense contractors.

Industrial Automation Integration

These ports are used by manufacturing automation systems for sensor networks, actuator controls, and data gathering systems that need to send signals reliably in harsh factory conditions. The high pin density makes it possible for complicated control systems to be built while keeping cable handling as simple as possible.

The connector is resistant to vibration and temperature changes that happen a lot in manufacturing buildings, which is good for process control uses. The sealed design keeps dust, moisture, and chemicals that are common in factory settings from getting inside and making things dirty.

Semiconductor Testing Equipment

Because semiconductor testing equipment needs to be very precise, it needs connections that have great electrical performance and little signal loss. J30J connections meet these needs and give automated test equipment the freedom it needs to be set up in different ways.

These plugs are used by research institutions in lab equipment, where measurement accuracy and signal purity are still very important. The standard sizes and electrical properties make it possible to get the same results from different test sets and measurement settings.

Conclusion

The J30J rectangular connector represents an optimal solution for applications demanding high-reliability interconnections within space-constrained environments. Military-grade standards compliance, advanced contact technology, and a wide range of pin configuration choices make this product suitable for a wide range of needs in the aerospace, defense, and industry sectors. The high contact density, electromagnetic shielding, and weather resistance make the system reliable over time while reducing the size of the system's impact. All of these features make J30J connectors the best choice for mission-critical systems that need to meet strict design standards for speed, reliability, and space efficiency.

FAQ

What are the operating temperature limits for J30J connectors?

Because they work effectively in temperatures ranging from -55°C to +125°C, J30J connectors can be used in harsh environments like those found in flight and industry. The metal structure and touch materials keep working properly with electricity even when the temperature changes a lot.

How do I verify cable compatibility with J30J connectors?

To check if two cables are compatible, the conductor gauge, insulation standards, and total cable width must all match the requirements of the connection. Our expert team gives you thorough charts of what products work with each other and can suggest the best cable assemblies for your needs and the situations where they will be used.

What factors should influence the choice between rectangular and circular connectors?

When it comes to panel-mounted uses, rectangular connectors like the J30J line help save room, while circular connectors let you route cables in any way. When choosing the right connector shape for your application, you should think about how much mounting space you have, how the cables need to be routed, and how much EMI shielding you need.

Contact MXTD for Your J30J Rectangular Connector Requirements

MXTD offers complete connector solutions backed by more than 12 years of experience in the field and a track record of dependability in tough environments. Our skills as a J30J rectangular connector manufacturer include both standard goods and OEM/ODM solutions that are made to fit your exact needs. Get in touch with our technical experts at manager03@mxtdinfo.com to talk about your project needs and get full specs. We offer quick technical help, low prices, and dependable shipping times that make the buying process easier and guarantee the success of your project.
