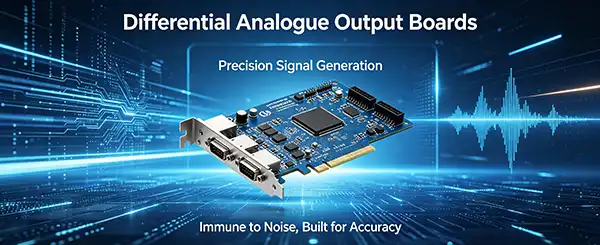

How Can a Differential Analog Output Board Improve Signal Accuracy?

Differential analogue output boards provide the most accurate signals for test and measurement tasks that need to be precise. They do this by using paired wire paths that actively smooth out electromagnetic interference and common-mode noise. Differential signalling keeps the purity of the signal even in electrically noisy industrial settings, while single-ended setups are easily affected by changes in the environment. Receiving circuits can figure out the difference between the voltage signals sent by these boards' complementary positive and negative lines. Interference that is common to both tracks is blocked. Differential outputs are essential for industries like flight testing, chip manufacturing, and industrial robotics, where measurement accuracy has a direct effect on product quality and safety. When system builders choose differential analogue output options, they get direct benefits like less noise, longer wire runs, and stable performance across a wide range of temperatures.

Understanding Differential Analog Output Boards and Their Role in Signal Accuracy

Fundamental Working Principles of Differential Signaling

Differential analog output technology operates on a straightforward yet powerful principle: transmitting signals as voltage differences between two conductors rather than as a single voltage referenced to ground. When electromagnetic interference affects a cable run, both conductors experience nearly identical noise, which the differential receiver subtracts away during signal processing. This common-mode rejection capability enables measurement systems to maintain accuracy specifications even when operating near motor drives, RF transmitters, or switching power supplies that generate substantial electrical noise. Modern implementations integrate precision digital-to-analog converters, matched output amplifiers, and carefully designed ground planes to minimize internal noise sources. The boards we engineer feature 16-bit resolution across voltage ranges of ±10V or ±30V, delivering system accuracy of 0.05% full-scale range. This level of precision proves essential when simulating sensor outputs for hardware-in-the-loop testing or generating calibrated references for production test fixtures.

Components That Define Performance

Several critical components determine how effectively these boards maintain signal fidelity. Precision voltage references establish stable baseline measurements independent of temperature fluctuations or supply voltage variations. Output amplifiers with low impedance (≤20Ω in our designs) drive extended cable lengths without signal degradation, while matched resistor networks ensure channel-to-channel consistency across all 32 differential or 64 single-ended outputs. lew rate specifications for the differential analog output board directly impact how quickly output voltages transition between levels. The 0.5V/µs capability built into MXTD boards accommodates most static and slowly varying signal applications without introducing distortion. Output drive capacity of 10mA per channel with 100mA aggregate current supports direct connection to industrial signal conditioning modules and PLCs without requiring external buffering.

Key Factors Affecting Signal Accuracy in Differential Analog Output Boards

Linearity and Resolution Parameters

System accuracy specifications reveal only part of the performance story. Linearity defines how faithfully the output voltage tracks the commanded digital values across the entire operating range. Nonlinearity errors accumulate when generating complex waveforms or performing multi-point calibrations, potentially compromising test results. The 16-bit resolution standard in high-performance boards provides 65,536 discrete voltage steps, enabling fine-grained control essential for simulating high-precision transducers.

Temperature coefficient specifications quantify how the output voltage drifts as ambient conditions change. Industrial-grade boards rated for -40°C to +70°C operation must maintain accuracy specifications across this 110-degree span. Quality implementations employ temperature-compensated references and matched component arrays to minimize thermal effects, ensuring measurement consistency during thermal cycling tests or field deployments in unconditioned environments.

Environmental and External Influences

Electromagnetic interference poses the most significant external threat to analog signal accuracy. Switching power supplies, variable frequency drives, and wireless communications generate broadband noise that couples into signal pathways through capacitive, inductive, and radiative mechanisms. Differential topologies reject common-mode interference through balanced transmission, but proper installation practices remain essential. Shielded twisted-pair cabling, appropriate grounding schemes, and physical separation from noise sources complement the inherent advantages differential signaling provides.

Power supply quality directly influences output stability. Ripple and transient disturbances on supply rails modulate reference voltages and amplifier bias points, appearing as noise superimposed on intended signal outputs. Well-designed boards incorporate extensive supply filtering and regulation to achieve power supply rejection ratios exceeding 80dB, effectively isolating analog circuitry from electrical noise present on backplane power distribution.

Comparing Solutions: Selecting the Best Differential Analog Output Board

Performance Evaluation Against Requirements

Selecting optimal signal generation hardware requires methodically matching board specifications with application demands. Voltage range represents the first decision point—±10V outputs suit most industrial sensor simulation applications, while ±30V capability becomes necessary when interfacing with process control systems or high-voltage transducer emulation. Channel count directly affects system complexity and cost. The 32 differential channel configuration covers most automated test equipment requirements without resorting to multiple boards and associated synchronization challenges.

System accuracy specifications for the differential analog output board deserve careful interpretation. The 0.05%FSR accuracy our boards deliver translates to ±5mV error on ±10V ranges—adequate for most industrial applications yet potentially limiting for precision metrology. Understanding where application accuracy budgets allow some signal source uncertainty versus where they demand higher performance guides appropriate product selection. Customization capabilities become valuable when standard specifications prove insufficient for specialized requirements.

OEM Partnerships and Customization Options

Medium and large enterprises developing proprietary test systems increasingly seek tailored solutions matching exact form factors, connector arrangements, and performance profiles. Our OEM/ODM capabilities support comprehensive modifications from simple connector changes through complete board redesigns, meeting unique application constraints. This flexibility proves particularly valuable for aerospace and defense applications requiring specific environmental qualifications, reduced size envelopes, or enhanced security features.

Working with experienced suppliers offering both standard products and custom development capabilities streamlines procurement while reducing technical risk. We maintain compatibility with NI product architectures, enabling drop-in replacement scenarios that leverage existing software investments while providing cost advantages. This benchmark compatibility, combined with our 12-year industry track record, gives procurement managers confidence in supply chain stability and long-term product availability.

The PXIe-5124 and PXIe-5134 series exemplify our standard product line, offering PXIe bus interfaces with x4 lane configurations supporting 4Gbps throughput. These boards integrate seamlessly into PXI Express chassis, providing plug-and-play compatibility with popular test executive software, including LabVIEW, TestStand, and custom C/C++ applications. Multiple bus options—PXI, CPCI, PCI, and PCIe—accommodate both legacy system upgrades and new development programs across various computing platforms.

Practical Applications and Case Studies Showcasing Signal Accuracy Improvements

Industrial Automation Sensor Simulation

Production test systems for industrial controllers require accurate analog signal generation to validate sensor input processing. A major automotive tier-one supplier recently implemented our differential output boards to simulate temperature, pressure, and position sensors during electronic control unit testing. The 0.05% accuracy specification enabled the detection of subtle input processing errors that escaped notice with the previous 0.1% accuracy test equipment. Differential outputs eliminated ground loop problems previously requiring extensive troubleshooting during test station commissioning.

The 32-channel differential capability allowed a complete sensor suite simulation from a single board, reducing chassis slot count and simplifying synchronization logic. System integration time decreased by approximately 40% compared to previous multi-board approaches, directly reducing program development costs. The installation now operates continuously across two shifts in a factory environment with substantial electrical noise from welding equipment and conveyor drives.

Aerospace Avionics Testing Applications

Avionics test systems demand exceptional signal fidelity when validating flight control computers and navigation systems. An aerospace contractor developing next-generation autopilot hardware required precision analog signal generation for simulating gyroscopes, accelerometers, and air data sensors during hardware-in-the-loop validation. Our industrial-grade boards operating across -40°C to +70°C eliminated the need for environmental chambers during thermal qualification testing, accelerating development schedules.

The extended voltage range ±30V option matched legacy transducer signal levels without requiring external amplification, reducing system complexity and improving signal integrity. Integration with existing PXI-based test infrastructure proceeded smoothly thanks to NI-compatible software interfaces and standard driver libraries. Project engineers cited the responsive technical support and rapid prototype customization as key factors enabling aggressive program milestones.

How to Procure High-Performance Analog Output Solutions for Optimal Accuracy

Defining Technical and Commercial Requirements

Effective procurement for a differential analog output board begins with comprehensive requirements documentation balancing technical specifications, delivery timelines, and budget constraints. Quantify channel count needs with a margin for future expansion—retrofitting additional boards later complicates system architecture and increases integration labor. Specify operating temperature ranges matching actual deployment environments rather than defaulting to commercial-grade specifications that may prove inadequate during field operation.

Volume projections influence pricing strategies and inventory planning. Standard products from our catalog ship from stock with typical lead times under two weeks for small quantities. Custom configurations require production scheduling based on specification complexity, with typical development cycles ranging from four to eight weeks. Communicating volume forecasts and delivery date requirements during initial discussions enables optimal production planning and competitive pricing structures.

Evaluating Supplier Capabilities and Support

Supplier selection extends beyond product specifications to encompass technical expertise, quality systems, and after-sales support capabilities. We respond to customer inquiries within one hour during business days, providing rapid technical guidance during evaluation and integration phases. Our engineering team, with over 12 years of combined experience, offers remote video technical support addressing installation challenges, software configuration questions, and troubleshooting assistance.

Quality assurance processes ensure consistent product performance across production lots. Manual calibration procedures verify each board meets published accuracy specifications before shipment. Transportation arrangements incorporate moisture-proof, shock-resistant, and anti-static packaging protecting precision electronics during land and air freight. The standard one-year warranty covers manufacturing defects, with extended coverage available through negotiation for volume purchases or critical applications.

Certification transparency builds procurement confidence. Complete datasheets documenting electrical specifications, mechanical dimensions, and environmental ratings enable thorough technical reviews. Software support across Windows variants plus custom options for Linux, VxWorks, RTX, and LabVIEW RT accommodates diverse computing environments. Driver libraries and demonstration programs accelerate software development, reducing system integration timelines and associated labor costs.

Conclusion

By using balanced transmission designs that naturally block common-mode interference, differential analogue output boards make signals more accurate in a way that can be measured. With 16-bit resolution, 0.05% system accuracy, and strong differential signalling, this product meets the tough needs of industrial automation, military testing, and chip applications. To choose the right options, you need to look at things like the number of channels, the power ranges, the environmental ratings, and the supplier's customisation support and technical response. The products made by Xi'an Mingxi Taida come in both standard and custom versions that work with industry-standard PXI designs. They also come with experienced tech help and reliable delivery.

FAQ

1. What distinguishes differential from single-ended analog outputs?

Differential configurations transmit signals across two conductors with opposite polarity, enabling receivers to reject noise common to both lines. Single-ended outputs reference voltage against ground, remaining vulnerable to ground potential differences and electromagnetic interference. Differential approaches provide superior noise immunity and support longer cable runs.

2. How does channel count affect system design?

The 32 differential or 64 single-ended channel architecture reduces board count requirements, simplifying synchronization and chassis slot allocation. Applications simulating complete sensor arrays benefit from high channel density, while smaller channel counts prove adequate for focused testing scenarios. Expansion planning should anticipate future requirements.

3. What accuracy specifications matter most?

System accuracy, linearity, and temperature coefficient collectively determine measurement fidelity. The 0.05%FSR specification ensures consistency across operating conditions, while 16-bit resolution provides fine voltage control. Application-specific accuracy budgets guide appropriate specification selection during procurement evaluations.

Partner with MXTD for Precision Differential Analog Output Board Solutions

Xi'an Mingxi Taida Information Technology delivers high-accuracy analog signal generation hardware trusted by test engineers worldwide. Our differential analog output board lineup spans multiple bus architectures and voltage ranges, meeting diverse application requirements with proven performance. Whether you need standard PXIe boards shipping from stock or customized solutions matching unique specifications, our team provides responsive technical guidance throughout procurement and integration. Contact manager03@mxtdinfo.com to discuss your project requirements and receive detailed product documentation. Discover why leading manufacturers choose MXTD as their trusted differential analog output board supplier.
