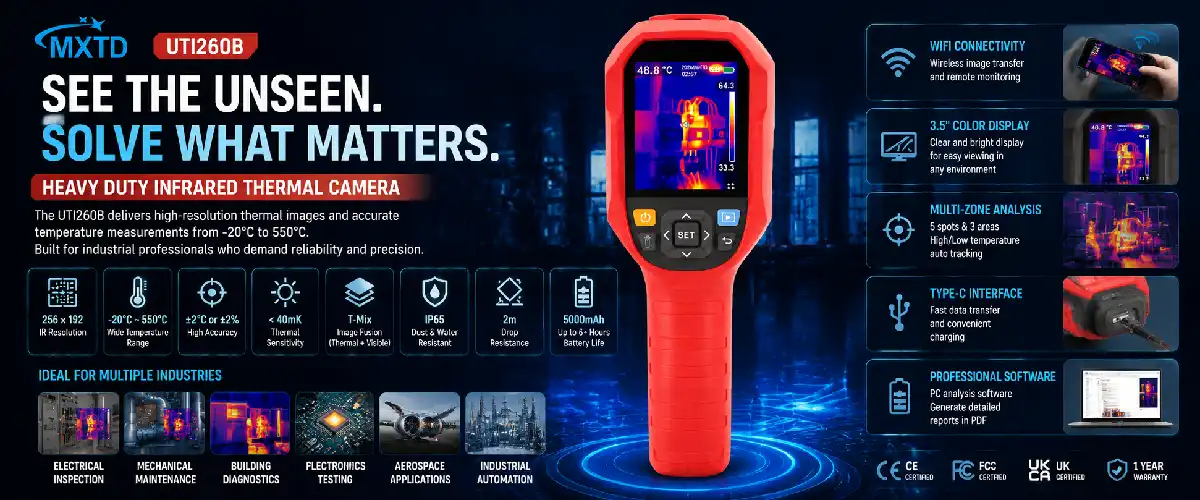

UTI260B Heavy Duty Infrared Thermal Camera: Key Features Explained

When it comes to testing tools, industrial teams need thermal imaging options that are both accurate and reliable. The UTI260B Heavy Duty Infrared Thermal Camera is a high-tech device made just for workers in the aerospace, electronics, and industrial industries who are in charge of important testing tasks. This thermal imager meets the exact performance and accuracy needs our clients always put first. It has a temperature range of -20°C to 550°C and a precision of 256x192 infrared pixels. I've worked with measuring and control technologies for twelve years, and I've seen thermal imaging go from being specialized lab equipment to being an important part of production diagnostics.

Comprehensive Specifications and Core Features of the UTI260B

The first step in figuring out what makes professional-grade thermal cameras different from consumer-grade ones is to look at what they can do technically. The following specifications show why engineering teams trust the UTI260B Heavy Duty Infrared Thermal Camera for reports that are very important to the goal.

Advanced Infrared Imaging Technology

The imaging system uses a 256x192 grid of infrared detectors to make 49,152 measurement pixels that pick up thermal patterns that can't be seen with normal checking methods. Each pixel is 12μm in size, which makes it possible to make accurate thermal maps that show small changes in temperature across building envelopes, mechanical systems, and electrical components. With this level of resolution, test engineers can find parts that aren't working right before they break down completely. This protects both the tools and the production plan.

The ability to combine two different wavelengths makes this thermal camera very useful in study settings. The T-Mix algorithm mixes infrared thermal data with visible light images. This lets techs precisely connect thermal anomalies with the places of physical equipment. This fusion technology gets rid of the guessing that usually takes longer to fix problems when diagnosing complicated systems.

Temperature Measurement Range and Accuracy

The temperature range that can be measured is from -20°C to 550°C, which includes uses for everything from high-temperature industrial processes to cryogenic study tools. The system has two gain modes that automatically find the best sensitivity across this range. This way, you can be sure of the accuracy of your measurements whether you're looking at semiconductor testing equipment that is working at room temperature or flight parts that have been through extreme thermal cycles.

Stable sensor performance is needed for accurate temperature measurement. That's why the device has temperature measurement methods that were built and tested in the field for years. This improvement to the formula makes up for external factors that can damage less advanced equipment, so the results are always the same even when the conditions around the equipment change.

Extended Power Management

Field operations need equipment that works reliably and doesn't need to be charged all the time. The 5000mAh battery setup can run continuously for more than six hours, which is long enough for thorough facility checks or long R&D testing sessions. This power capacity comes from useful design choices made with input from industrial users who need equipment that works with their process instead of setting break times.

The following capabilities distinguish this thermal imaging solution from standard inspection tools:

• Industrial-grade protection features ensure the device can handle the harsh conditions found in factories. IP65 certification protects against all dust and water jets coming from any direction, which is very important when working in industrial settings where contaminants are inevitable. The case can withstand drops from 2 meters onto concrete. This is to account for the fact that tools are sometimes knocked off of workbenches or dropped from ladders during checks from above.
• Multi-zone analysis functions let you keep an eye on five separate measurement points and three temperature zones at the same time in a single thermal picture. High and low temperature tracking automatically finds and marks numbers that are too high or too low. This makes it easy to find places where something might go wrong when electrical panels or mechanical tools are being inspected. This automatic analysis makes it easier for techs to manage complicated diagnostic methods, so they can focus on making sense of the data instead of collecting it.
• Comprehensive connectivity options make it easier to integrate into current processes for document management. WiFi connection lets images be sent in real time to mobile devices so that engineers working far away can see them right away. The professional PC analysis software makes thorough PDF reports that meet the needs of quality management systems and legal compliance programs that are popular in defense and aerospace.

These technical skills directly translate into practical benefits that procurement managers and technical directors value when looking at investments in measurement tools. Rugged design, analysis features, and data management tools work together to cover the whole process, from the first check to the final paperwork.

Applications and Industrial Use Cases of the UTI260B Thermal Camera

Thermal image technology is useful in many different types of industries where reliable equipment has a direct effect on how well and safely things are made. The UTI260B Heavy Duty Infrared Thermal Camera proves its value across diverse industrial sectors.

Electrical System Diagnostics

In factories, electrical distribution systems have a lot of link points where resistance rises over time. This creates hotspots that happen before equipment breaks down. Thermal scans done on a regular basis find these problems months before they become visible. I've seen maintenance teams stop generator failures that would have shut down production for a week by finding strange temperature changes during routine checks every three months.

The large temperature range can be used to measure everything from circuits in control panels that work at temperatures close to room temperature to high-current switches that normally create large thermal loads. Because it is so flexible, a single device can be used for many inspection processes in building maintenance programs.

Mechanical Equipment Monitoring

When bearings wear out, lubrication levels drop, or alignment deviates from specs, rotating machinery develops unique heat fingerprints. By looking at these thermal trends over time and seeing how they change over time, you can spot problems early on and use condition-based maintenance techniques to cut down on unplanned downtime. This ability to predict the future is especially useful for manufacturing businesses that use continuous output methods.

Temperature changes in motor drives, gearboxes, and coupling systems all show that their performance is getting worse long before noise or vibration measures pick it up. With the multi-zone tracking features, technicians can set standard readings for important equipment and have regular surveys instantly flag any deviations.

HVAC and Building System Applications

For study labs and clean rooms with building automation systems to work, the environment needs to be carefully controlled. Thermal imaging shows holes in insulation, ways for air to get in, and problems with how the air is distributed in ducts that make it harder to keep the temperature even and use more energy. The image fusion feature helps building managers physically mark trouble spots for contractors, making sure that there are no questions about how to fix problems.

Testing labs that have to follow strict environmental rules use temperature scans to check the performance of their HVAC systems and find broken equipment before they mess up research results or damage sensitive instruments. This preventative method keeps both the processes of the facility and the integrity of the study program safe.

Semiconductor and Electronics Testing

Electronics testing settings need tools that can help with both fixing problems during development and checking the quality of finished products. During the development of a circuit board, component-level thermal analysis shows problems with power distribution, not enough heat sinking, and unexpected thermal coupling between circuits. Engineers can use the high level of detail to check how well individual surface-mount parts handle heat while they're working.

The device's data management features help production testing by creating documentation that meets the needs for traceability in aircraft and military electronics manufacturing. Being able to store thermal pictures along with the test records that go with them makes for thorough quality paperwork.

Comparing UTI260B with Other Heavy Duty Infrared Thermal Cameras

To make smart purchasing choices, you need to know how the UTI260B Heavy Duty Infrared Thermal Camera stacks up against various thermal imaging options in terms of important performance metrics and total cost of ownership factors.

Performance Benchmarking

Similar temperature ranges are offered by competing thermal cameras, such as the FLIR E-series models. However, these cameras are usually much more expensive, which can make project budgets difficult, especially when multiple techs need to be equipped or when testing needs to be set up in different regions. The price-to-performance ratio is especially important when buying in bulk for system integrators or building management plans with multiple sites.

Comparing resolutions shows that the 256x192 detector array gives a lot more temperature information than the cheapest 160x120 models while still being priced similarly to mid-range options. When checking dense equipment setups with closely spaced parts that need clear thermal separation, this precision advantage becomes very important.

It can measure temperatures accurately from -20°C to 550°C, which is the same as or better than rival models. This was proven by testing it against NIST-traceable reference sources. When measurement tracking is important, like in calibration labs and precision factory settings, this level of accuracy can be used.

Value Proposition for B2B Procurement

This thermal imaging tool is especially good for companies that want to equip their repair departments, field service teams, or more than one R&D facility. Procurement managers like clear price models that make budgeting easier without having to deal with complicated configuration choices that drive up costs.

Warranty coverage and how quickly technical help responds have a direct effect on the total costs of ownership after the initial purchase price. Standard warranty terms cover you for one year, but you can choose to get longer security plans. During work hours, expert support teams answer questions within one hour. This support system cuts down on downtime for tools and makes sure that technicians can keep working even when they have questions.

Concerns about fake equipment getting into industrial supply chains through illegal routes are eased by the approved distribution network, which makes sure that products are real and of consistent quality. When you work with well-known companies like MXTD, you can be sure that you will be able to get the tools, calibration services, and expert advice you need.

How to Procure UTI260B Heavy Duty Infrared Thermal Cameras Efficiently

Streamlining the buying process makes it easier for tech teams to get the UTI260B Heavy Duty Infrared Thermal Cameras quickly while still following the rules for buying things and making sure that vendors meet certain standards.

Distribution Channels and Ordering Process

Working directly with approved providers speeds up the process of getting quotes and makes sure that specifications are correctly matched to application needs. MXTD keeps a ready supply of standard setups, which lets them quickly meet the needs of urgent projects. Custom setups need production plans based on specific parameter needs. During the quote process, wait times are made clear.

Companies that want to use the same thermal imaging tool in multiple buildings or departments can save a lot of money by using bulk order price structures. Volume prices work well with large orders, so it's financially feasible to use them across the whole company.

Logistics and Delivery

Standard and fast delivery choices are available for shipping, and precision tools are protected during travel by special packaging. The package has barriers that keep out wetness, materials that absorb shock, and anti-static protection that is right for sensitive electronic measuring equipment. This care in getting equipment ready for shipping shows that they know it needs to be ready to use right away, without any adjustments or service calls.

There are global shipping options that can meet the needs of foreign projects. Documentation and logistics management help with getting around customs rules and import laws. This foreign ability is important for multinational companies that want to use the same tools in all of their regional activities.

Support Services and Training

Value-added services make tools more useful and make it easier for teams to learn how to use thermal imaging diagnosis. Users can get expert help via remote video chat to make sure they're measuring things correctly for their needs, and free software updates make sure they can keep using better research tools. Companies that are putting in place full-scale thermal imaging systems across all of their maintenance teams can set up on-site training programs.

When you add up quick expert help, training, and regular software maintenance, you get a full ownership experience that goes beyond just getting tools.

Why Choose UTI260B: Brand Reliability and Supplier Information

Buying the UTI260B Heavy Duty Infrared Thermal Camera depends on how confident you are in both the quality of the product and the supplier's ability to meet long-term operating needs.

Manufacturing Quality and Certification

Xi'an Mingxi Taida Information Technology Co., Ltd. has been specializing in measurement and control solutions for twelve years and has set up quality management systems that make sure that industrial standards are always met. The company is very good at making PXIe frames, offering precision connectors, and putting together testing systems. This means they really understand what industrial measurement needs are.

Following international industrial standards is important for making sure that products are reliable and can work with current measurement systems. These certifications are important, especially in controlled fields where audit and compliance programs need proof that equipment is qualified and can be tracked.

Technical Capability and Innovation

The company's research and development team is always improving the technology used to connect infrared detectors and the formulas used to measure temperature. This way, the company can keep its technical performance competitive as the needs of the industry change. This dedication to product development makes sure that thermal imaging solutions keep up with the latest technology instead of sticking to old designs.

Product roadmaps are based on partnerships with customers, and feedback from industry users determines which features to include and how to best use them. When people work together, they can make tools that solve real business problems instead of just theoretical specs that don't relate to real-world situations.

Long-term Partnership Value

When companies depend on providers for continued technical support, calibration services, and equipment lifecycle management, their ties with them go beyond just one transaction. MXTD has a good name among clients in manufacturing, aerospace, and electronics testing, which shows that it can handle complicated, long-term business relationships.

Because the provider is flexible with customization needs, can do OEM/ODM work, and is ready to come up with unique solutions, they are seen as partners rather than just equipment sellers. This way of building relationships is similar to how system designers and R&D centers like to work with suppliers of measurement tools.

Conclusion

The UTI260B Heavy Duty Infrared Thermal Camera has the accurate measurements, tough dependability, and data management features that are needed in industrial testing settings. This equipment meets the main needs that engineering teams look for when they decide what to buy. It has a resolution of 256x192, can work in a wide range of temperatures, and is protected to industrial standards. The specs allow for a wide range of uses, from checking electricity problems to keeping an eye on mechanical equipment. The connectivity features work well with current document processes. If a company wants to find thermal imaging options that are both effective and affordable, this platform should be carefully looked at in light of business needs and budget limits.

FAQ

1. What temperature range does the thermal camera cover?

The temperature range is from -20°C to 550°C, which covers most commercial uses, from electronics that work at room temperature to manufacturing processes that need to be done at high temperatures. Dual-gain modes make the sensitivity work best across this range, so the accuracy stays the same whether it's measuring small temperature differences in control systems or large thermal loads in machinery.

2. How does this compare with FLIR thermal cameras?

Performance comparisons show that the UTI260B Heavy Duty Infrared Thermal Camera is about as accurate and able to measure temperatures as FLIR E-series models, but it is more affordable and has faster customer service. While still being cost-effective for bulk purchases, the 256x192 resolution gives you a lot more information than entry-level options. Whether or not an application is right for it depends on the specific needs of the process, but the device does similar industrial diagnostic tasks.

3. What warranty and support options are available?

Standard coverage includes a guarantee that lasts for one year and expert help that answers questions within an hour during business hours. Extended protection choices are available for businesses that need their tools to last longer. As part of the support services, you can get free software updates, remote video help, and access to application experts who know how to solve measurement problems in a wide range of industries.

Partner with MXTD for Your Thermal Imaging Requirements

Industrial measurement problems need providers who know both the technical needs and the facts of buying things. As a well-known UTI260B Heavy Duty Infrared Thermal Camera provider, MXTD blends twelve years of experience in measurement and control with quick customer service that meets tight project deadlines. Within an hour, our team answers technical questions and requests for quotes. This helps engineering teams that need quick answers during equipment evaluation rounds.

Volume price structures make it affordable to use thermal imaging across an entire organization, and our customization options meet the needs of specific applications that standard setups don't. You can email our technical team at manager03@mxtdinfo.com to talk about your unique diagnostic needs, get full specification documents, or set up a time to try out demonstration equipment. We can help with both standard purchases through established channels and unique solutions that need relationships for OEM/ODM development.
