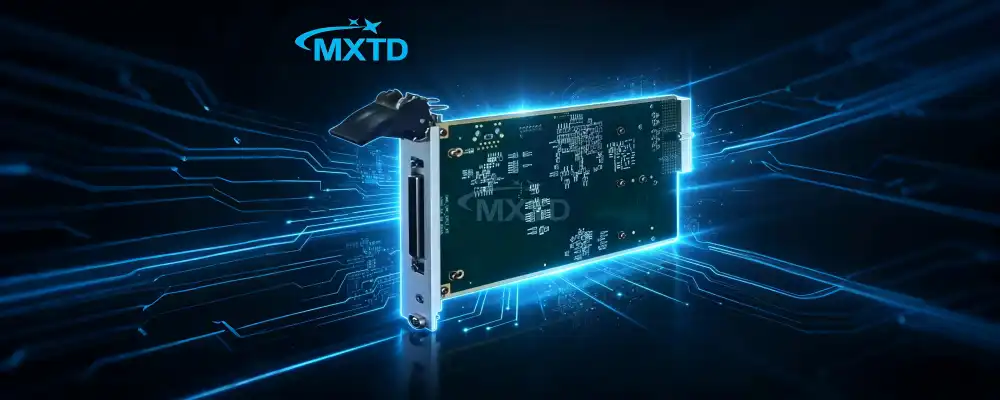

MIL-STD-1553B Test Card for Real-Time Bus Simulation

A key part of real-time bus modeling systems is the MIL-STD-1553B test card, which lets full testing and validation of avionics communication standards happen. Engineers can use these specialized testing interfaces to simulate, watch, and study MIL-STD-1553B bus data in defense and aerospace settings. By checking exact protocol compliance and analyzing data in real time, these test cards make sure that systems are reliable in mission-critical settings where correct communication has a direct effect on safety and performance.

Understanding MIL-STD-1553B Test Card and Bus Protocol

Understanding the complex link between hardware testing solutions and communication standards is a key part of current avionics testing. MIL-STD-1553B is a strong serial data bus standard made just for military aircraft systems. It allows multiple units to communicate reliably with each other through a dual-redundant architecture.

Core Components of MIL-STD-1553B Architecture

Bus Controllers, Remote Terminals, and Bus Monitors make up the organized organization that MIL-STD-1553B bus systems use. The Bus Controller is in charge of all bus connections, starting data exchanges and making sure the system stays on time. Remote Terminals react to orders from controllers and send system-specific data. Bus Monitors, on the other hand, listen to conversations but don't send or receive data themselves.

In all three operating modes, the MIL-STD-1553B test card provides full simulation features that fit right into this design. With Manchester II encoding, these cards can handle data rates of up to 1 Mbps. This means they can work with current aircraft systems and offer a wide range of tracking and analysis tools.

Protocol Compliance and Technical Specifications

Modern test cards have to show that they strictly follow protocol timing rules, such as having reaction times for Remote Terminal activities that are within 4 to 12 microseconds. To make sure the signal stays intact, the voltage levels must be between 18 and 27 volts peak-to-peak, and the rise and fall times must be kept within 100 to 300 nanoseconds.

All message types described in the standard are supported by the technical implementation. These are transfers from a controller to a remote terminal, transfers from a remote terminal to a controller, and contacts from a remote terminal to another remote terminal. Modern test cards can insert errors in real time, which lets engineers check how the system responds to different kinds of faults.

Comparing MIL-STD-1553B Test Cards and Alternative Solutions

To choose the right testing tools, you need to carefully consider the different options and what they can do. By comparing different versions of MIL-STD standards, we can see that speed and functionality have gotten a lot better over time.

MIL-STD-1553B versus MIL-STD-1553A Differences

Moving from MIL-STD-1553A to MIL-STD-1553B brought about several important improvements that have a direct effect on the testing standards. MIL-STD-1553B got rid of the extra function that let you change the length of a data block, so all data transfers now use 32-word blocks as normal. This change made it easier to apply protocols and made the system more predictable.

MIL-STD-1553B also made it easier to find errors by making timing requirements tighter and improving the meanings of status words. Because of these changes, test cards need to have better timing and a lot of error modeling tools in order to make sure the system is compliant.

Benchmarking Against Industry Standards

When buying, workers evaluate test card performance; they should look at how well it fits with established industry standards. Leading makers offer solutions that meet or go beyond National Instruments' requirements, all while keeping prices low and giving customers more ways to customize their purchases.

Here are the most important things to look at when comparing test cards:

• Protocol Support: All MIL-STD-1553B message types, error situations, and timing changes are fully supported.
• Real-Time Performance: Accurate timing down to the microsecond level with predictable reaction qualities
• Integration Flexibility: PXIe works with normal chassis setups and settings for software development
• Customization Options: The ability to change hardware and software features to fit the needs of a particular application

These factors for measuring help technical teams find solutions that give the best value while still working with the test infrastructure that is already in place. Hands-on testing with sample data sets should be part of the review process to make sure that the system works as it should in real life.

Procurement and Supplier Guidance for MIL-STD-1553B Test Cards

When buying testing equipment strategically, you need to know a lot about the supplier's skills, the certification standards, and their long-term assistance promises. There are many people involved in the procurement process, such as technical teams, people who work in quality testing, and people who handle the supply chain.

Supplier Evaluation and Certification Process

Checking the necessary industry qualifications and safety paperwork is the first step in a good source evaluation. Suppliers should show that they are certified in both ISO 9001 quality control and unique aircraft industry qualifications, like AS9100. These licenses show that a company is dedicated to quality processes that have a direct effect on how reliable and consistent their products are.

As part of evaluating technical skills, engineering tools, manufacturing sites, and testing infrastructure should be looked at. Suppliers with their own research and development teams and testing facilities can offer better technical help and customization services. Being able to respond quickly to technical questions within an hour shows operational efficiency, which helps meet purchase deadlines.

Pricing Analysis and Contract Considerations

Avionics test cards are usually priced based on a number of important factors, such as the number of cards needed, the amount of customization, and the support service packages. Standard goods that are in stock are easier to get right away, but customized solutions need to be scheduled for production based on particular parameter needs.

When a company needs more than one unit or is planning a long-term buying program, volume price becomes important. Original Equipment Manufacturer (OEM) partnerships can help you save even more money by letting you buy in bulk and work together on technology issues. The market for MIL-STD-1553B test card solutions has a range of prices to meet the needs of people with different budgets while still providing the necessary features.

When negotiating a contract, the delivery terms, availability of technical help, warranty coverage, and software licensing needs should all be taken into account. For precision tools to be shipped safely, they need to be handled in a special way that keeps them dry, shock-proof, and anti-static.

Technical Support, Setup, and Troubleshooting for MIL-STD-1553B Test Cards

After the buy, success depends a lot on having good technical help and following the right steps for implementation. Companies that buy high-tech testing gear need ongoing help to get the most out of their systems and keep them running efficiently.

Installation and Configuration Guidelines

The right way to install something starts with making sure the PXIe hardware is compatible and planning how to allocate slots. It's important to think about power and cooling for test cards in the frame, especially when using multiple cards at the same time. When multiple MIL-STD-1553B test card units are working at the same time in a high-density setup, thermal control becomes very important.

Setting up an application programming interface, configuring drivers, and integrating software with current test automation tools are all parts of installing software. Many sellers offer complete software development kits that come with example code, instructions, and debugging tools to cut down on the time it takes to get things up and running.

Ongoing Support and Maintenance Services

Professional technical support should be able to offer online video advice so that customers can get real-time help with problems without having to have someone come to their location. This service plan cuts down on downtime and gives you instant access to technical experts when problems happen.

Software update services make sure that programs will still work with new versions of operating systems and development settings. Free software updates during the warranty time help protect the value of the original investment and give you access to new features and functions. For mission-critical applications that need assured uptime, you can negotiate for warranty periods longer than the usual one year.

Advantages of Using MIL-STD-1553B Test Cards in Real-Time Bus Simulation

According to research, using special test cards has many practical benefits that directly lead to more efficient testing and better system proof. These benefits go beyond simple protocol compliance and include benefits for integrating whole systems.

Enhanced Testing Accuracy and System Reliability

Engineers can do thorough testing in settings that are very similar to real-life situations thanks to real-time bus modeling. The MIL-STD-1553B test card supports strict validation processes needed for safety-critical applications by giving exact timing control and predictable behavior.

Advanced error injection features let you try fault tolerance methods in aircraft systems in a planned way. Engineers can model different types of failures, such as bus problems, timing violations, and data corruption, to make sure the system responds correctly. This thorough testing method makes it less likely that problems that weren't found will make it to actual release.

Cost and Time Efficiency Benefits

Standardized testing methods made possible by specialized test cards cut certification times by a large amount compared to other testing methods. Automated test execution lets operations run continuously without any human input, which makes the lab more useful while cutting down on labor costs.

Here are the main ways that current test card systems make things more efficient:

• Shorter development cycles: rapid testing and evaluation help get new avionics systems to market faster.
• Less hardware is needed because various testing functions can be built into a single card, which saves rack space and power.
• Scalable Test Configurations: The modular design lets you go from testing a single unit to validating a complex multi-bus system.
• Thorough Data Analysis: The ability to watch and log in real time gives you a lot of information about how the system usually works.

Since these efficiency gains add up over several projects, they give companies that do regular aviation testing a big return on their investment. The benefits of scalability allow testing needs to grow without having to update the whole system.

Future Technology Integration

As new technologies in aviation testing keep getting better, they can now help find bugs with artificial intelligence and make test cases automatically. These improvements are built into modern test cards through firmware changes and software improvements that make the products more valuable over their entire lifetime.

Integration with cloud-based analysis tools makes it possible for different engineering teams to work together on tests and share test data and results in real time. This connection helps with distributed development programs that are popular in big aerospace projects and keeps private apps safe.

Conclusion

A lot of companies that work on developing and testing aviation systems need MIL-STD-1553B test cards. Having the ability to simulate in real time, make sure that all protocols are followed, and use advanced analysis tools is what makes system validation effective. When purchasing testing tools, buying professionals should give priority to sellers with a track record of success, quick technical support, and cheap pricing. Buying good test cards pays off in a way that can be measured: shorter development times, more reliable systems, and easier approval processes that directly support mission-critical aerospace uses.

FAQ

What makes MIL-STD-1553B test cards essential for avionics testing?

MIL-STD-1553B test cards provide comprehensive protocol simulation and monitoring capabilities that enable engineers to validate communication systems under realistic operational conditions. These cards support all required message types, timing specifications, and error conditions defined within the standard, ensuring thorough system validation before deployment in mission-critical applications.

How do I ensure compatibility between test cards and existing aerospace systems?

Compatibility verification involves checking PXIe slot requirements, power consumption specifications, and software interface compatibility with existing development environments. Reputable suppliers provide detailed compatibility matrices and technical specifications that help procurement teams make informed decisions about system integration requirements.

What level of post-purchase support should I expect from test card suppliers?

Professional suppliers typically provide comprehensive technical support, including remote assistance, software upgrades, and warranty coverage. Quality suppliers respond to technical inquiries within one hour and offer training resources to help technical teams maximize equipment utilization. Extended support options may be available for mission-critical applications requiring guaranteed response times.

Contact MXTD for Your MIL-STD-1553B Test Card Requirements

With more than 12 years of experience designing and making avionics test tools, MXTD offers the best testing options in the business. Our options for MIL-STD-1553B test card solutions offer great performance compared to industry standards, as well as low prices and stable product performance. As a reliable maker, we offer both standard and unique ODM/OEM solutions that are made to fit your exact needs. Get in touch with our expert team at manager03@mxtdinfo.com to talk about your testing needs and find out how our high-reliability PXIe products can help you validate your system better.
