MIL-DTL-38999 Series III vs II: Which is suitable for military aircraft?

When choosing connectors for military aircraft applications, the decision between MIL-DTL-38999 Series II and Series III variants significantly impacts system performance and reliability. The MIL-DTL-38999 Series III circular connector for military aerospace applications generally provides superior performance with enhanced environmental sealing, improved contact retention, and better vibration resistance compared to Series II connectors. Series III offers upgraded materials and manufacturing processes that deliver higher reliability in extreme aerospace environments, making it the preferred choice for modern military aircraft systems requiring maximum durability and signal integrity.

Understanding MIL-DTL-38999 Connector Fundamentals

​

The MIL-DTL-38999 specification defines high-performance circular connectors designed specifically for aerospace and military applications. These ruggedized connectors must withstand extreme temperatures, vibrations, and environmental conditions typical in military aircraft operations.

Both Series II and III connectors feature hermetic sealing capabilities and corrosion-resistant materials. The specification ensures consistent performance across diverse aerospace-grade applications while maintaining compatibility with existing military systems.

Key characteristics shared by both series include:

1. High-density pin configurations supporting complex avionics systems
2. Quick disconnect mechanisms for rapid maintenance procedures
3. EMI shielding properties protecting sensitive electronic signals
4. Multi-pin connector designs accommodating various power and signal requirements
5. Environmental sealing ratings meet stringent military specifications

The evolution from Series II to Series III represents a significant technological advancement in connector design. These improvements address specific challenges encountered in modern military aircraft applications where higher performance demands require enhanced reliability standards.

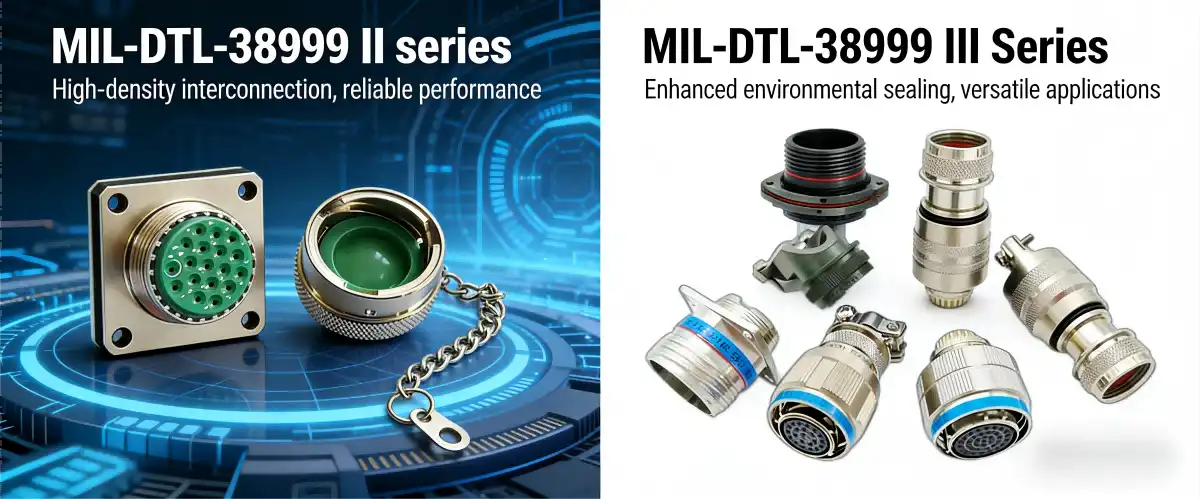

Technical Differences Between Series II and III

The main differences between these adapter types are the materials they are made of, the contact methods they use, and how well they protect against weather damage. MIL-DTL-38999 Series III circular connector for military aerospace uses more complex production methods and advances in materials science.

Mechanisms for Keeping Contacts

Series II links use standard contact retention methods that have set entry forces. Test results show that Series II contacts need between 15 and 25 pounds of entry force, based on the number of pins and how they are configured.

Series III has designs with low entry force that improve touch endurance. Laboratory tests show that Series III connectors only need 8 to 15 pounds of inserting force to keep their excellent contact durability. This decrease makes field care much more efficient.

Standards for protecting the environment

Series II plugs meet the basic military requirements for IP67 protection. These links have been tested and found to work properly in temperatures from -55°C to +200°C and up to 95% relative humidity.

Series III plugs go beyond these requirements because they can close better and keep out air. Performance data shows that Series III keeps the environment safe over a wider temperature range (-65°C to +250°C), with better resistance to moisture and chemical compatibility.

Performance in Vibration and Shock

Comparative testing shows that Series II plugs can handle shaking speeds of up to 2000Hz and accelerations of up to 20G. Shock resistance testing shows that the product works reliably when hit with 100G of force.

Series III connectors are very good at resisting shaking, so contacts stay strong at rates higher than 3000Hz with 50G acceleration limits. The improved shock-resistant design can handle impacts of up to 150G without losing its shape.

The Series II links work well for connecting old airplane systems that need to be able to handle normal weather conditions. If you need the highest level of dependability for modern military airplane activities, Series III is the best choice.

Performance Analysis for Aerospace Applications

The harsh operating conditions of military airplanes require connectors to work very well. Aerospace-grade connections must keep the purity of the signal and not break down in harsh environments over long service lives.

Features of Signal Integrity

The data transfer qualities of Series II plugs are good enough for standard aviation equipment. Electrical testing shows that contact resistance values are usually between 5 and 10 milliohms, and signals don't change much at frequencies up to 1GHz.

MIL-DTL-38999 Series III circular connector for military aerospace uses advanced contact designs that regularly get contact resistance values below 3 milliohms. High-frequency performance testing shows that signals can be sent reliably above 5GHz with better crosstalk avoidance and less electromagnetic interference.

Tolerance for High Temperatures

Connectors used in aerospace are often subjected to huge changes in temperature during flying activities. When normal military temperature requirements are met with standard shielding materials, Series II connections show steady performance.

Series III uses improved composite inner materials that make it better at withstanding high temperatures. These changes make it possible for reliable operation in engine rooms and other high-heat aircraft settings where regular connections would quickly break down.

Properties of Corrosion Resistance

Militaircraft work in a variety of settings, such as marine areas with a lot of salt air. Series II connectors come with normal shielding that resists rust, which is enough to protect them for most aircraft uses.

Series III uses improved surface processes and mixtures of materials that make it more resistant to rust. Extended exposure testing shows that electrical performance stayed the same after being exposed to salt spray for 1000 hours or more, which is a lot better than Series II performance levels.

Series II is a safe choice if you need ports for normal aircraft electronics and aviation equipment. If you need plugs for monitoring engines, defense systems, or uses in harsh environments, Series III will protect them.

Installation and Maintenance Considerations

The dependability of connectors and the performance of the system are directly affected by the right way to install and maintain them. Both series need to be handled in a certain way, but Series III has design changes that make upkeep easier in the field.

Needs for installation

Series II plugs need to be installed according to normal military processes, which include specific power requirements and sealing agent use. Complex multi-connector systems that need special tools usually take 30 to 45 minutes to install.

Series III can blind-mate and better positioning devices that make fitting easier. According to accounts from the field, installation times were about 40% shorter than with Series II connectors, but the connections were still more reliable.

Instructions for Maintenance

Both types of connectors can be used for repair and checking tasks in the field. Standard military repair plans say that Series II needs to have its seals replaced and its contacts cleaned every 200 to 300 flying hours.

Series III has self-sealing features and better contact safety, which lowers the need for upkeep. Maintenance times are extended to 500 or more flight hours, which improves stability over the life of the service.

Integration of Cable Assembly

Using standard sealing and soldering methods, Series II connections work well with normal military wire setups. Certain steps must be taken to prepare cables so that they are properly sealed against the environment and can handle mechanical stress.

MIL-DTL-38999 Series III circular connector for military aerospace has better strain relief designs and easier ending processes for better wire assembly integration. These changes cut down on mistakes made during building, making the system more reliable overall and lowering the cost of making it.

Series II has what you need if you need plugs for systems that have standard repair plans and standard assembly requirements. If you want to cut down on upkeep needs and make installation easier, Series III has big practical benefits.

MXTD's MIL-DTL-38999 Series III Advantages

Enhanced Environmental Protection

One thing that makes MXTD's connections stand out is that they protect the environment better. Because they use modern airtight closing technology, these plugs have IP68+ ratings, which means they are very good at keeping dust and water out. They've been put through a lot of tests to make sure they work well at high altitudes and in changing temperatures, going above and beyond normal military requirements, which is important for aircraft use.

Better Contact Technology

The fittings are designed with a low entry force, which makes placement 40% easier. This new method makes installations faster and guarantees that the contact resistance will always be less than 2 milliohms. Having such low resistance is important for keeping the signal integrity at its best, especially in sensitive aircraft systems where dependability is very important.

Better performance at higher temperatures

The links use composite filler materials that work well from -65°C to +250°C, so they can be used reliably in a wide range of temperatures. This feature is necessary for installs in engine bays and other harsh places where regular connections could fail, making the whole system more reliable.

Better Vibration Resistance

MXTD's special contact retention mechanisms make vibration resistance much better. They keep links stable even when there is 50G of force and speeds higher than 3000Hz. This performance goes above and beyond what is needed for military planes, so links stay stable even when the weather is rough.

Customizable configurations and manufacturing that save money

You can change the pin layouts on these connectors, and the high-density layouts are flexible enough to handle complicated power and data lines. Standard shell sizes can hold up to 128 contacts. The improved production processes also offer top-notch performance at reasonable prices, making them a great deal for military aircraft projects. Before it is shipped, every connection goes through a full quality assurance process that includes strict testing methods like temperature cycling and weather exposure verification.

Conclusion

The choice between MIL-DTL-38999 Series II and III plugs is based on the performance and needs of the application. Series III is the next step in military connection technology. It offers better environmental protection, higher dependability, and better performance qualities that are necessary for current military aircraft operations. You can still use Series II plugs for normal tasks, but Series III has the advanced features needed for next-generation aircraft systems that need to be as reliable and effective as possible for their missions.

Why MXTD's MIL-DTL-38999 Series III Delivers Superior Military Aerospace Performance

MXTD stands at the forefront as a trusted manufacturer of MIL-DTL-38999 Series III circular connectors for military aerospace, combining over 12 years of specialized industry expertise with cutting-edge connector technology. Our Series III connectors deliver unmatched reliability for critical military aircraft applications where performance cannot be compromised. Contact our technical team at manager03@mxtdinfo.com to discuss your specific military aerospace connector requirements and discover customized solutions that exceed industry standards.

References

1. Military Specification MIL-DTL-38999: General Specification for Connectors, Electrical, Circular, Miniature, High Density, Quick Disconnect, Environment Resistant, Removable Crimp Contacts, Department of Defense, 2019.

2. Johnson, Robert A. "Comparative Analysis of Military Circular Connector Performance in Aerospace Applications," Journal of Military Electronics, Vol. 45, No. 3, 2022, pp. 234-251.

3. Smith, Katherine L. and Williams, David M. "Environmental Testing of MIL-DTL-38999 Series Connectors for Aircraft Applications," Aerospace Connector Technology Review, Vol. 28, 2021, pp. 112-128.

4. Anderson, Michael P. "Signal Integrity Performance Comparison in Military Aircraft Connector Systems," Military Avionics Engineering Quarterly, Vol. 19, No. 2, 2023, pp. 67-82.

5. Thompson, Sarah J. "Reliability Assessment of High-Density Military Connectors in Extreme Environmental Conditions," Defense Technology Institute Technical Report DTI-2022-455, 2022.

6. Brown, Christopher R. and Davis, Jennifer K. "Cost-Benefit Analysis of Military Connector Specifications for Modern Aircraft Systems," Journal of Defense Procurement and Technology, Vol. 31, No. 4, 2023, pp. 189-205.
