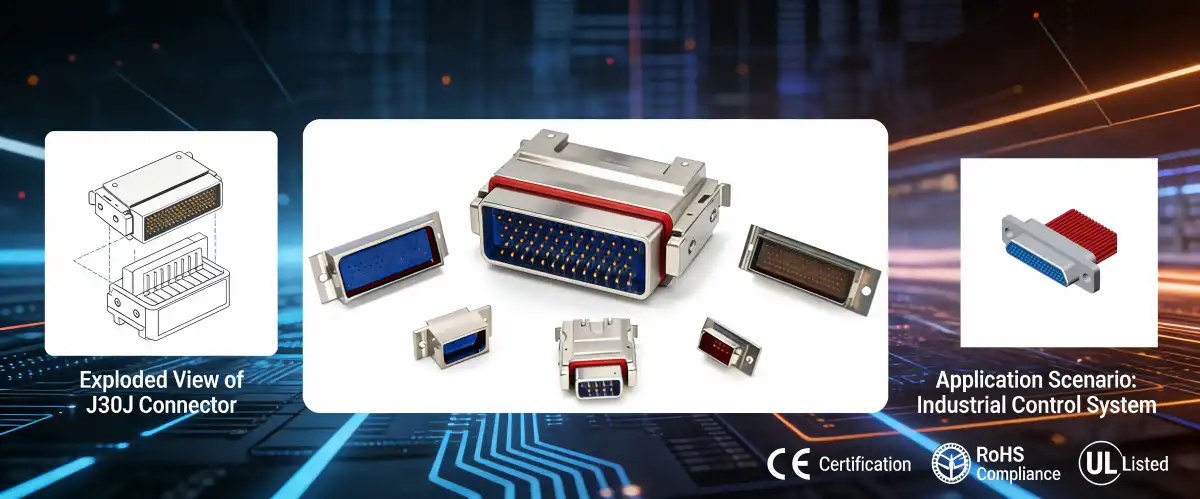

J30J Rectangular Connector for Lightweight Electronic Systems

The J30J rectangular connector turns out to be the best choice for small, light electronic systems that need to be very reliable. These small, rectangular electrical connectors work very well in aircraft, defense, and industrial control uses that need to work in space. The J30J line meets GJB2446A standards and has elastic stranded pin contacts. It offers reliable connectivity options with high contact density and protection from the environment for mission-critical applications.

Introduction to J30J Rectangular Connectors

Modern electrical systems that are small and light need connections that work very well without being too big or not reliable. The J30J connector line solves these problems with cutting-edge engineering and precise production methods that have been improved over many years of industry growth.

Fundamental Design Attributes

The J30J line is a big step forward in the technology of tiny rectangular connectors. Elastic stranded pin contacts, also called "twist pins," are used in these connections. They offer better electrical continuity and mechanical stability than regular solid pins. The special pin design keeps the contact pressure the same even when the temperature changes and the pin is under a lot of mechanical stress. We've used these connection systems for a long time and know that their small size—only 1.27 mm between rows and 0.11 mm between columns—allows for an unheard-of number of contact points. This high-density design lets engineers get the most usefulness out of limited room while still meeting standards for signal integrity and electrical performance.

Key Specifications and Applications

There are eleven different combinations in the full specification range. These include 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 core choices. Each version keeps the same high standards for building while being adaptable to different use cases in many different businesses. These connectors work great in aircraft uses that need to cut weight without losing reliability. Their resistance to external factors is useful for industrial automation systems, and their precise electrical properties make them useful for accurate measurement in semiconductor testing equipment.

Technical Specifications and Performance Analysis

Engineers and procurement workers can make smart choices about which connectors to use and how to integrate the system if they understand the full technical specifications.

Pin Configuration and Contact Systems

The stretchy stranded pin contact method is a big step forward in making connectors more reliable. In contrast to regular solid pins, these twist pin designs can handle changes in temperature, pressure, and mechanical stress while still keeping the electricity flowing. Precision manufacturing methods are used to make sure that each pin works the same way after thousands of mating rounds. The metal protective shell protects against all kinds of electromagnetic interference, which is very important for sensitive electrical systems that are sensitive. Optional metal tail covers make the connection more durable in tough settings while keeping its lightweight. This mix of features makes sure that it works reliably in temperature ranges that cover both commercial and military standards.

Performance Metrics and Environmental Resistance

The J30J rectangular connector is different from normal business options because it can withstand harsh environments. Extreme changes in temperature, exposure to humidity, and vibration are all things that these connections can handle in aircraft and defense uses. When the housing is made of metal, it protects better against electromagnetic interference and keeps its structural integrity under mechanical stress. Specifications for the current rating depend on the number of pins and how they are arranged. Each contact can handle large electrical loads while still having low resistance. Insulation resistance values are higher than industry standards, which guarantees safe use in high-voltage situations where signal integrity is still important. Temperature cycling tests show that the product works well across all temperature ranges, and resistance to salt spray proves that it is suitable for use in sea and coastal settings. These performance traits come from carefully choosing the materials and using production methods that put long-term dependability ahead of cutting costs.

Comparative Insights: J30J vs Other Connectors

To choose the right connector technology, you need to know how the different choices stack up against each other in terms of important performance factors and the needs of your individual application.

Performance Parameter Analysis

The J30J model has more contacts per unit area and a smaller total footprint than D-sub connections. D-sub connectors are still commonly used in older systems, but their bigger size and lower pin density make them less useful for current lightweight systems. The J30J rectangular connector works just as well electrically, but takes up a lot less room. While circular connectors, such as MIL-DTL-38999 types, provide better environmental protection, they take up more board space and weigh more than rectangular options. In most cases, the J30J line cuts system weight by up to 40% while maintaining the same level of stability.

Cost-Effectiveness and Total Ownership Analysis

The economic benefits go beyond the initial costs of purchase and include things like building time, upkeep needs, and long-term dependability. Standardized pin placements and welding plate compatibility make assembly easier and lower the cost of labor. From our experience, projects that use J30J connections are put together 25% faster than projects that use other options. The strong structure and high-quality materials mean that it doesn't need much upkeep. The metal shielding and optional tail covers keep the internal parts from damage from the surroundings, which makes them last longer and requires less replacement. The total cost of ownership for a product is cheaper over its entire lifespan because of these things.

Procurement and Supplier Guide for J30J Connectors

Successful procurement strategies require understanding market dynamics, supplier capabilities, and quality assurance processes that ensure product authenticity and performance compliance.

Sourcing Strategies and Market Trends

There has been a lot of change in the connector market because more businesses need high-density, lightweight options. Micro rectangular connectors are being used more and more in military and defense uses, and prices are going up to reflect that. If you buy more than 1000 units, you can get a discount. Lead times depend on how complicated the setup is and how much customizing is needed. Standard designs have faster shipping times, while custom types need more time to be made so that they can fit specific pin arrangements or changes to the housing. With flexible schedule choices, our production planning can meet both standard and unique needs.

Quality Assurance and Compliance Standards

Following the GJB2446A rules makes sure that the product works with foreign standards and meets quality standards like the ones in MIL-C-83513. This double compliance gives purchasing teams peace of mind about the authenticity and performance of products all over the world's supply lines. Authorized routes of marketing keep track of the paperwork and quality standards that are needed for aerospace and military uses. Before we ship our products, we make sure they work well electrically, last a long time mechanically, and don't react badly to the environment by following strict testing methods.

Installation, Maintenance, and Troubleshooting Best Practices

By following the right steps for installation and care, you can get the most out of your connectors and make them last longer, all while reducing system downtime and maintenance costs.

Installation Procedures and Safety Protocols

Before starting the installation process, the connecting parts and matching surfaces must be carefully checked to make sure they are clean and in the right place. The welding plate products have changed tail ends that are made to work with printed circuit boards. This makes it easier to integrate with current system designs. Using the right soldering methods keeps internal parts from getting damaged by heat and makes sure that electrical connections are stable. Keeping an eye on the temperature during installation stops changes in the metal that could affect its long-term dependability. Our technical paperwork includes step-by-step instructions for a range of placement situations and environmental conditions.

Maintenance and Troubleshooting Guidelines

As part of routine repair, the connector housing and pins are looked at visually to find signs of wear that could affect the system's function. The J30J rectangular connector shape makes checking easy without taking the whole thing apart. Common ways to fix problems with connectivity involve checking each pin in a planned way and making sure the system stays up and running as a whole. To find the bad link, diagnostic methods like measuring resistance and checking signal integrity are used. Our technical support team helps people who need help with complicated system optimization and fixing issues over the phone.

Conclusion

The J30J rectangular connector is the best combination of speed, dependability, and value for money for lightweight electrical systems used in defense, aerospace, and industry. With a wide range of specifications, from 9 to 144 cores, these connectors can meet a wide range of system needs while still meeting high-quality standards. Elastic stranded pin technology, metal protection construction, and following international standards all work together to make sure that the system works reliably in harsh conditions where failure is not an option.

FAQ

What distinguishes J30J connectors from J40 variants?

The J30J line has a micro-rectangular shape and 1.27mm lateral spacing that makes it ideal for high-density applications. On the other hand, J40 connectors have different pin spacing and contact systems that make them better for different types of applications.

How does environmental resistance affect J30J performance?

Environmental resistance includes being able to handle changes in temperature, humidity, and vibrations while still maintaining electrical performance over a wide range of operating conditions common in aircraft and military settings.

Are there ways to make changes for specific applications?

Customization for OEM/ODM allows for changed pin configurations, housing materials, and tail-end changes to fit different printed circuit board patterns and system integration needs.
