In-depth analysis of the NI-9219 general-purpose analog input module

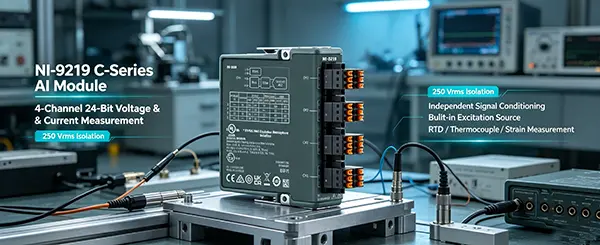

The NI-9219 C Series 4 CH 24 Bit AI Module is a high-performance, multi-channel, general-purpose C-series analog input module from NI. Its most notable features are its independent configurability between channels and its fully isolated architecture. Designed for complex test environments requiring simultaneous measurement of multiple different types of sensors, a single module supports direct input of voltage, current, thermocouples, RTDs (resistance thermometers), strain gauges, and bridge sensors.

​​​​​​​

Core Technical Specifications

Before delving into its structure, it's essential to understand the key electrical parameters of the NI-9219:

• Number of Channels: 4 analog input channels.

• ADC Resolution: 24-bit.

• Sampling Rate: Up to 100 S/s/ch (independent per channel, high-resolution mode).

• Isolation Voltage: 250 Vrms (channel-to-channel, channel-to-ground).

• Input Range: ±60 V, ±15 V, ±1 V, ±125 mV (automatically adjusted according to measurement mode).

Internal Hardware Architecture and Structural Design

The NI-9219's high flexibility and precision stem from its sophisticated internal hardware design. Its system architecture primarily consists of the following four core components:

[ signal input terminal (Spring terminals/DSUB) ] │ ▼ [ Signal conditioning and multiplexing ] ◄─── [ Internal motivation (Current/Voltage) ] │ ▼ [ 24 bit Delta-Sigma ADC ] (Each channel is independent) │ ▼ [ Digital isolation layer (Optoelectronic/Magnetic Isolation) ] │ ▼ [ Module backend control logic / Transformer isolation power supply] │ ▼ [ CompactDAQ / CompactRIO Bus ]

Independent Signal Conditioning Circuitry for Each Channel

• Each channel has a completely independent signal conditioning front end. This means that channel 0 can measure 60V voltage, while channel 1 can simultaneously measure thermocouples without interference.

• Programmable Gain Amplifier (PGA): Automatically switches the amplification factor based on the measurement type selected by the user in the software (e.g., millivolt-level signals from thermocouples or 10V signals from industrial sensors) to maximize the dynamic range of the 24-bit ADC.

• Built-in Excitation Source: The module integrates an adjustable drive source. It provides a constant current (typically in the μA range) when measuring RTDs and a constant voltage (e.g., 2.5V) when measuring strain gauges or bridge sensors, requiring no external power supply.

Independent 24-bit Delta-Sigma ADC

• ​​​​​​​The NI-9219 C Series 4 CH 24 Bit AI Module features a dedicated Delta-Sigma analog-to-digital converter for each channel

• Synchronous Sampling: Multiple channels are sampled simultaneously, eliminating the inter-channel phase shift issues present in traditional multiplexed architectures.

• Built-in Anti-aliasing Filter: The Delta-Sigma ADC incorporates digital filtering to effectively suppress high-frequency noise and 50Hz/60Hz power frequency electromagnetic interference.

Fully Isolated Architecture (Ch-Ch Isolation)

• Safety and interference immunity are paramount in the NI-9219's design
• Inter-channel isolation: Continuous isolation of 250 Vrms exists between channels. Even a sudden high voltage surge in channel 0 will not damage channel 1 or affect its measurement accuracy

• Channel-to-ground isolation: The electrical ground is completely isolated from the chassis ground, effectively eliminating ground loop noise commonly found in industrial environments.

Mechanical and Connection Structure

• ​​​​​​​Housing Design: Adopts standard C-series module dimensions. The housing is made of high-strength flame-retardant plastic with a metal shield to reduce EMI (electromagnetic interference).

• Connector Type: Commonly 6-pin or 10-pin spring terminals, supporting quick wiring and strong vibration resistance.

Core operating mode and wiring principle

The NI-9219 C Series 4 CH 24 Bit AI Module's "versatility" is reflected in its ability to change the circuit topology through internal electronic switches, thereby supporting multiple operating modes:

Industrial Applications

• Automotive and Powertrain Testing: In electric vehicle testing, it simultaneously monitors battery pack high voltage, motor temperature (RTD), and vehicle body strain. Channel isolation prevents high-voltage crosstalk.

• Industrial Equipment Status Monitoring: It can connect to 4-20mA industrial transmitters, vibration sensors, and ambient temperature sensors, completing mixed signal acquisition with a single module.

• Universities and Research Laboratories:** When experimental needs vary, frequent changes to the acquisition card are unnecessary; configuration can be switched simply in software (such as LabVIEW).

Architecting Next-Generation Data Intelligence: The MXTD Corporate Legacy

Connect with our global applications engineering team at manager03@mxtdinfo.com / manager02@mxtdinfo.com to request engineering blueprints, commercial quotes, or custom development consultations.

In the uncompromising realms of deep-space aerospace validation, smart factory automation, and vanguard academic research, structural accuracy is the baseline of innovation. For more than 12 years, Xi'an Mingxi Taida Information Technology Co., Ltd. (MXTD) has operated as the foundational backbone for high-tier engineering achievements worldwide. As an end-to-end technology pioneer, we translate volatile environmental phenomena into clean, actionable digital intelligence through our elite suite of data acquisition (DAQ) hardware, real-time embedded systems, and ultra-high-precision instrumentation.

Over a Decade of Breakthrough Engineering

Built upon a framework of meticulous scientific discovery, MXTD has scaled from a boutique hardware lab into an internationally recognized engineering enterprise. Our corporate infrastructure brings proprietary hardware research and development (R&D), lean manufacturing centers, and an agile international supply matrix together under a single cohesive banner. For over ten years, our multi-disciplinary engineering groups have continuously broken through data-rate and signal-integrity barriers, producing ruggedized, field-proven hardware architectures that empower global developers to bridge the gap between theoretical math and physical reality.

A Resilient Global Distribution Ecosystem

Surviving the unpredictable realities of modern electronic component sourcing requires more than an ordinary vendor—it calls for a deeply integrated strategic partner. MXTD has deployed a highly diversified cross-border supply network, earning the trust of Tier-1 industrial partners across North America, South America, Europe, and Africa. By harmonizing our internal manufacturing capabilities with the top-tier distribution of major global instrumentation brands, we guarantee a frictionless procurement experience. Whether your deployment demands a plug-and-play benchtop laboratory system or a low-profile, bare-board OEM sensor interface, your project stays on schedule and within budget.

Absolute Quality Assurance Protocols

In the world of high-fidelity measurement, a microvolt of drift can derail an entire multi-million-dollar research program. At MXTD, structural reliability is not a passive target—it is an absolute manufacturing mandate. Our production ecosystems run under a zero-tolerance, multi-phase quality control framework:

Silicon and Raw Material Audits: Strict traceability checks on all passive electronic components and ICs to completely eliminate the risk of counterfeit parts.

Precision In-Line Metrology: Automated Optical Inspection (AOI) paired with high-resolution X-ray layer analysis to confirm flawless solder joints and trace topology.

Accelerated Life Testing (ALT): Thermal shock cycling and high-frequency vibration testing to ensure continuous operation in volatile, high-interference industrial field zones.

Traceable Final Calibration: Every device undergoes rigorous cross-calibration against strict international metrology standards before vacuum-sealed deployment.

Investing in MXTD hardware means securing absolute data confidence, extended asset lifecycle lifespans, and operational safety.

Core Capabilities & Market Offerings

Authorized Global Distribution Matrix: Transparent, fully compliant logistical pipelines delivering authentic international modular DAQ components and test instruments.

Comprehensive OEM/ODM System Engineering: Tailored bare-board designs, proprietary PCB layouts, and custom-form-factor chassis development matching unique client footprints.

Cross-Border Logistics Mastery: Secure, highly efficient customs clearance networks ensuring prompt, duty-optimized delivery to any global port.

Elite Applications Engineering Support: Direct, engineer-to-engineer assistance for low-level driver deployment, hardware integration, and onsite commissioning.

Partnering with MXTD means removing hardware supply chain risk from your corporate roadmap.

By combining specialized, industrial-grade production with the high-velocity logistics of an authorized global enterprise, we supply the turnkey systems that modern engineers rely on. From highly confidential R&D labs to high-throughput automotive assembly lines, MXTD provides the structural accuracy that moves global industry forward.

FAQs:

Q1: Why is the sampling rate of the NI-9219 only 100 s/s? Can it be used for vibration testing?

A: The NI-9219 is designed for high-precision, multi-functional DC or low-frequency signals. Its 24-bit Delta-Sigma ADC prioritizes resolution and noise suppression. For dynamic vibration testing (typically requiring sampling rates of several kHz), high-frequency dedicated modules such as the NI-9234 or NI-9215 are recommended.

Q2: When using the NI-9219 to measure thermocouples, do I need to perform cold junction compensation (CJC) myself?

A: No. The NI-9219 C Series 4 CH 24 Bit AI Module's terminals already integrate a high-precision cold junction compensation sensor. When you configure it to thermocouple mode in the software, the NI-DAQmx driver will automatically read the cold junction temperature and perform temperature compensation calculations.

Q3: What is channel-to-channel isolation? What are its benefits?

A: Channel isolation means that the reference ground (Minus terminal) of each channel is isolated from each other. Its advantages include preventing measurement errors caused by ground loops and allowing each channel to connect to signal sources with different common-mode voltages (up to 250 Vrms), protecting backend computing equipment and personnel.
