How to accurately determine the suitability of the NI-9219 data acquisition module

In industrial testing, multi-sensor integrated data acquisition, and scientific research experiments, the NI-9219 is a classic 4-channel general-purpose signal input module. Because a single module can support multiple signal types, including voltage, current, thermocouples, RTDs, strain gauges, and bridge sensors, many engineers consider it a "universal data acquisition card."

However, in actual project selection, blindly choosing a module without considering specific signal frequency response, accuracy requirements, and excitation limitations can still lead to insufficient acquisition accuracy, sampling rate bottlenecks, or hardware waste. This article will systematically guide you in determining whether the NI-9219 C Series 4 CH 24 Bit AI Module module is suitable for your application environment from four dimensions: signal characteristics, electrical specifications, system platform, and environmental requirements.

​​​​​​​

NI-9219 Core Technical Parameters and Characteristics

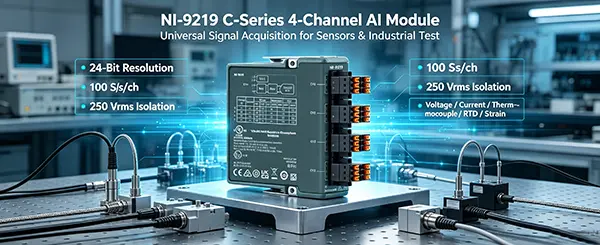

Before conducting a compatibility assessment, the main hardware specifications of the NI-9219 C Series 4 CH 24 Bit AI Module must first be defined:

• Number of Channels: 4 independent configurable channels
• Analog-to-Digital Converter (ADC) Resolution: 24-bit
• Maximum Sampling Rate: 100 s/s/channel (multi-channel synchronous parallel sampling)

• Measurement Types: Voltage (maximum ±60V), Current (±25mA), Thermocouples, RTDs (e.g., Pt100), Resistance, Strain Gauges (1/4 bridge, half bridge, full bridge), and half-bridge/full-bridge Load Cells, etc.

• Signal Conditioning and Excitation: Each channel has an independent built-in power supply and excitation source (voltage/current excitation).

• Electrical Isolation: 250 Vrms inter-channel isolation between channels and between channels and ground.

Three dimensions of adaptability judgment

To determine whether NI-9219 C Series 4 CH 24 Bit AI Module matches project requirements, the following three levels of screening must be conducted sequentially.

Matching signal type with sampling rate (core threshold)

The most notable feature of the NI-9219 is its "high versatility," but its maximum sampling rate is limited to 100 S/s/channel.

Fully compatible (static and slowly changing signals):

• Temperature measurement: Thermocouples (J, K, T, E, N, R, S, B types), RTDs (PT100, etc.).

• Quasi-static mechanical/strain measurement: Electronic scales/load cells (full-bridge/half-bridge), static structural strain testing.

• Slowly changing process signals: Industrial 4~20 mA process current, ±10V or ±60V slowly changing voltage.

Incompatible with (dynamic signals and high-frequency acquisition):

• Vibration and acoustic analysis (NVH): such as IEPE/ICP accelerometer signals (typically requiring sampling rates of several kHz to tens of kHz).

• High-speed transient capture: such as explosive impact, high-speed electrical pulse, and high-frequency pressure pulsation testing.

Electrical characteristics and excitation source adaptation

The NI-9219 C Series 4 CH 24 Bit AI Module integrates miniature signal conditioning circuitry and a drive source, significantly simplifying external wiring. When making a judgment, attention should be paid to:

Strain gauges and bridge sensors: The NI-9219 supports built-in 1/4 bridge (120Ω / 350Ω), half-bridge, and full-bridge circuits. If the sensor requires extremely high voltage excitation (e.g., a constant 10V external voltage supply), the NI-9219's built-in excitation voltage/current capabilities must be checked to ensure they meet its minimum sensitivity requirements.

Voltage and current input range: Maximum supported voltage is ±60V, and maximum supported current is ±25mA. For extremely high input signals (e.g., 380V AC or 100A current), an additional transmitter or current transformer is required.

Anti-interference and isolation security

If there are severe ground loops or high common-mode voltages at the test site (such as high-voltage battery pack testing or measurements near industrial frequency converters), the NI-9219's 250 Vrms inter-channel isolation provides excellent signal protection and noise immunity, making it a highly advantageous choice.

NI-9219 Selection Decision Matrix:
