How to Use UT123D Intelligent Multimeter Beginner or Home Safely?

To safely use the UT123D Intelligent Multimeter Beginner or Home use, you need to use its automatic range swapping, AC/DC recognition, and current input detection features. This smart digital multimeter eliminates the need for manual adjustments by automatically recognising function ranges and measurement parameters based on input signals. This means that anyone can do electrical testing, even if they don't have technical training. The device has a CAT III 600V safety grade, non-contact voltage detection, and full-function burn protection, which keep the user safe when measuring voltage, current, resistance, and capacitance at home or in light industry settings.

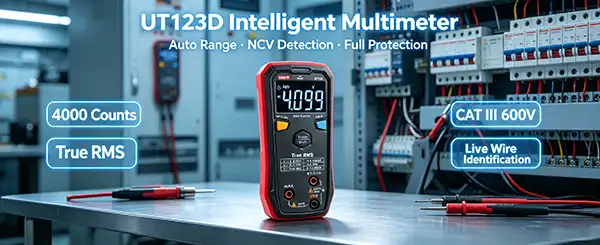

Understanding the UT123D Intelligent Multimeter: Features and Specifications

With professional-level accuracy and user-friendly automation, the UT123D is a big step forward in measurement technology that everyone can use. This smart digital voltmeter, made by UNI-Trend Technology and sold by authorised partners such as MXTD, bridges the gap between being simple for consumers to use and being reliable enough for commercial use. Knowing what its main features are can help both homeowners working on electrical projects and purchasing managers choosing diagnostic tools for their teams.

Intelligent Measurement System That Thinks for You

This smart multimeter is different from regular ones because it can read incoming signals and set up measurement parameters automatically. The device has automatic range switching, which takes the guesswork out of testing circuits where the voltage or current levels are unknown. When the test leads are connected to a circuit, the 4.5-digit display with a maximum count of 4099 updates three times per second. This gives you real-time measurements that are obvious thanks to its high contrast ratio, which lets you read it even at very high or low viewing angles.

The automatic AC/DC switching figures out the type of signal without you having to set the measurement mode. This cuts down on setup time and keeps beginners from making the mistake of measuring AC voltage on a DC setting or DC voltage on an AC setting. In the same way, automatic current input switching turns on current measurement mode as soon as you plug test leads into the mA or A input jacks, which accelerates the work process.

Safety Features Built Into Every Measurement

When working with electrical devices, safety is still the most important thing. The UT123D has full-function burn protection that keeps the internal circuits safe from overload situations. This protects users and extends the life of the device. You can find live wires without touching them directly with the NCV (non-contact voltage) monitoring feature. Smart LED colour signs change from green to red depending on the strength of the field.

Home users should pay extra attention to the LIVE wire identification feature. With just one probe, you can tell the difference between live and neutral lines by hearing and seeing alarms. This keeps you from making potentially dangerous wiring mistakes when you're installing or fixing things. These safety features are backed by CAT III 600V certification, which makes sure they meet international safety standards for measurements in electrical environments at the distribution level.

Measurement Capabilities That Cover Real-World Applications

True RMS (Root Mean Square) measurement technology makes sure that readings are correct even when testing non-sinusoidal waveforms that are common in modern electronics that use switched-mode power supplies. When measuring voltage, the input impedance of ≥10 MΩ keeps measurement integrity in sensitive situations by reducing the effects of circuit loading. The device works well with power line frequencies and their harmonics because it can measure frequencies from 40Hz to 400Hz for AC.

The ability to measure capacitance up to 4000 μF (4 mF) is useful for checking motor start capacitors, power supply filtering parts, or audio crossover networks. With this wide range of measurements, the intelligent multimeter can be used as a diagnostic tool for a variety of situations, including fixing electrical problems in homes, fixing electrical problems in cars, and basic industrial maintenance tasks. Xi'an Mingxi Taida Information Technology Co., Ltd. has over 12 years of experience with measurement and control systems, so these specifications will be reliable in the field.

Step-by-Step Beginner Guide: How to Use the UT123D Multimeter Safely at Home

To operate safely, you must first be well-prepared and know how to do basic things. When checking wall outlets, battery voltage, or device circuits for problems, it's best to follow a set of steps. This way, you can reduce risk and get more accurate measurements.

Initial Setup and Device Inspection

Before you use the smart digital multimeter for the first time, check it for any damage that happened during shipping. In particular, look at the test lines for cracks in the insulation or exposed wires. Install the right battery according to the instructions from the manufacturer, making sure the polarity is facing the right way. Make sure the screen turns on and goes through its first self-test routine, making sure that all of the parts light up properly.

Check the test lines' connection places where they go into the body of the UT123D Intelligent Multimeter Beginner or Home metre. These should fit firmly and not move around too much. Good test leads are the most important link between your measuring tool and the circuit you're looking into, so making sure they're in good shape before each use is a good safety habit.

Measuring Voltage in Household Applications

The most common home diagnostic task is measuring voltage. To check the voltage of a wall outlet, just plug the black lead into the COM terminal and the red lead into the VΩ terminal. When you touch the probe tips to the outlet contacts, the automatic range switching sets the right sensitivity right away. The automatic AC/DC switching figures out that you're measuring alternating current and shows the correct reading. For example, in North America, it shows about 120V for home circuits and 230V for setups in Europe.

The same connection set-up can be used to measure DC voltage, like when testing a battery. When you touch the probe tips to the battery terminals and watch the polarity—red means positive, black means negative—the display shows the voltage level and automatically switches to DC mode. Even when working in awkward positions with little light, the high-contrast screen can still be read.

Resistance and Continuity Testing Procedures

To test for resistance or circuit continuity, the circuit must be completely turned off. Take power sources away and discharge any capacitors that might still be charged. Put the test leads in the same COM and VΩ terminal positions that are used for voltage. Then, touch the probe tips to the part of the circuit or component you're testing. The smart multimeter picks the right resistance range on its own and shows the number in ohms, kilohms, or megohms, based on what it is measuring.

Continuity testing is very helpful when trying to find wiring or make sure switches work. The audible continuity indicator goes off when resistance falls below a certain level. This lets you check connections without constantly looking at the screen, which is especially helpful when working in small spaces where it's hard to see the meter and move test leads at the same time.

Current Measurement With Automatic Recognition

When you measure current, you have to put the meter into the circuit path instead of connecting it across components like you do when you test voltage. Depending on how much power you expect, move the red test lead from the VΩ terminal to either the mA or A terminal. When the lead is inserted, the automatic current input switching turns on measurement mode right away, making sure the device is set up correctly.

At the point where you want to measure the flow of current, break the circuit. Then, connect the meter leads to fill in the gap you made. The meter reads the current and shows the reading. The scaling is done automatically by the range selection. Be especially careful when measuring current because they require circuit changes and can create short-circuit paths if they are connected incorrectly. The burn protection circuitry keeps you safe, but being aware of what could go wrong is still your best defence.

Safety Best Practices and Maintenance Routines

Before measuring resistance or continuity, you should always make sure that the circuits are not connected to anything. When measuring voltage, don't touch the probe tips' exposed metal parts while they're in contact with live circuits. Before you start any invasive work, use the NCV detection tool to make sure that all wires are turned off.

Keep your smart digital multimeter somewhere clean, dry, and away from places with very high or low temperatures. Check the test lead insulation for wear and tear regularly, and replace the leads as soon as you see any damage. Avoid using chemicals that could damage the case or display window when cleaning the outside of the device. Instead, use a slightly damp cloth. When the low-battery sign shows up, the battery should be replaced right away to keep internal parts from being damaged by leaks.

UT123D Multimeter Compared: Why Choose It Over Other Models?

Finding the right test equipment means weighing the pros and cons of its features against its price, as well as the level of expertise of the person using it and the needs of the application. While there are other measurement devices on the market, the clever voltmeter stands out and should be compared to similar ones.

Feature Comparison With Similar UNI-T Models

There are several versions of the UT123 series, and each one is designed to meet slightly different user needs. The basic UT123 model can measure voltage, current, and resistance, but it doesn't have any advanced automation features. The UT123T can measure temperature, but users still have to choose ranges by hand, so they have to guess how big the measurements will be and set ranges accordingly. The UT123D we're talking about here focuses on smart operation by automatically switching between ranges, between AC and DC, and between current inputs. This makes the operation a lot simpler.

This automation adds real value beyond just making things easier. One common source of measurement mistakes is choosing the wrong range, which can damage meters or give false results. The smart digital multimeter protects itself and measurement accuracy by getting rid of the need to make range decisions by hand. It also speeds up work. Another useful feature is that it can measure capacitance up to 4 mF. This is because many cheap multimeters can't measure capacitance at all or can only do it at values that are too small for common motor and appliance capacitors.

Competitive Positioning Against Industry Benchmarks

When procurement professionals look at test equipment, they often use well-known brands like Fluke as standards for quality. Fluke instruments have great build quality, a lot of features, and a lot of support networks. However, they are very expensive, which might be out of reach for entry-level users or buying many diagnostic tools for a lot of techs.

There is a strong case for buying the UT123D in this situation. It can measure true RMS, which makes it accurate with modern electronic loads and matches the specs of instruments that cost a lot more. The CAT III 600V safety rating is good for most residential, commercial, and light industrial settings because it protects workers at the distribution level. Even though it's not as rugged or has as many advanced connectivity features as some of the best expert tools, it can still measure things well enough for regular testing and quality control.

Companies that give their teams a lot of measuring tools, like this clever multimeter, strike a good mix between capability and cost. The low cost is especially clear in places like schools, maintenance departments, or field service companies, where many technicians need diagnostic tools at the same time. MXTD's distribution model allows buying in bulk while taking volume into account. This makes it economically possible for a large-scale rollout across a business.

Transparent Discussion of Application Limitations

Being honest about the limits of a device builds credibility and makes sure that the right tool is chosen. The UT123D works great at home, in schools, and in small industries, but it has problems in business settings that need a lot of power. The 4099-count display resolution is good enough for most troubleshooting tasks, but it's not precise enough for calibration work or scientific research that needs five- or six-digit resolution.

The frequency range of 40 Hz to 400 Hz works well for measuring power distribution but not for radio frequency work or high-speed digital circuit analysis that needs bandwidths in the kilohertz or megahertz ranges. Also, an input impedance of ≥10MΩ stops most useful circuits from loading. However, instruments with even higher input impedances may be needed for specific uses that use sources with very high impedances.

Knowing these limits helps procurement managers match the right tools to the right jobs. The intelligent digital multimeter works great for the tasks it was made for, like routine electrical diagnosis, maintenance verification, educational purposes, and quality spot checks. However, it recognises that some tasks require more specialised equipment. This clear evaluation helps people make smart buying choices that get the best return on investment by using the right tools for the job instead of buying too many for simple tasks or not enough for tough ones.

Procurement Guide: Purchasing and Warranty Information for B2B Clients

Organisational procurement includes more than just the specs of the gadget. It also involves things like how to get it, how to support it, and how to protect its long-term value. Understanding these business issues for the UT123D Intelligent Multimeter Beginner or Home applications, shortens the buying process and sets the stage for good relationships with vendors.

Authorized Distribution and Bulk Ordering

Xi'an Mingxi Taida Information Technology Co., Ltd. is a licensed supplier that serves markets in North America and Europe through well-established channels of distribution. With more than 12 years of experience in measurement and control solutions, MXTD keeps a stock of standard products and can also support custom configurations when the needs of a project call for them. As part of its responsive approach, the company promises to get in touch with customers within an hour during business hours. This makes it easy to get quotes and technical information quickly.

Volume pricing systems that make per-unit economics better are good for bulk buys. Early on in the purchase cycle, procurement managers should talk about quantities, supply times, and any customisation needs. Because the company has worked with system designers, R&D centres, and original equipment makers (OEMs), procurement specialists can talk to representatives who know how medium to large organisations buy things, what they need in a purchase order, and what kind of paperwork they need.

Logistics, Shipping, and Import Considerations

When transporting precision instruments, they need to be handled with care. MXTD works with well-known logistics companies that know how to ship electronic equipment and use packaging that is resistant to moisture, shock, and static electricity, which is right for test equipment. Different levels of urgency and cost limits can be met by both land and air transportation, and tracked shipments allow for sight throughout delivery cycles.

International shipments have to go through customs procedures that require the right paperwork and tariff classifications that are consistent. These steps are easier to do when you work with a supplier with a lot of experience, like MXTD, which takes care of export paperwork and helps with import clearance. Knowing how long shipping will take helps companies plan their buying schedules, making sure that measurement equipment comes when it's needed without having to pay a lot of money for fast shipping or having projects get held up because of deliveries that are late.

Warranty Coverage and Support Infrastructure

Suppliers who want to build long-term relationships with their customers are different from transactional vendors because they offer comprehensive warranty protection and quick technical support. The standard warranty covers manufacturing flaws and part failures that happen during normal use for one year after delivery. This protection gives purchasing managers peace of mind that the manufacturer will back up their investment after the initial transaction.

Having access to technical support is also very helpful. With remote video advice, experts can help with setup, operation, or fixing without having to go to the site. This cuts down on downtime when questions come up. As new firmware versions come out, free software updates keep the device up to date, which extends its useful life without costing extra. Special situations that call for longer guarantee terms or customised support plans are still up for discussion, which shows that MXTD is open to being flexible with its clients.

The company's after-sales service team handles contacts with customers after a purchase with professional knowledge, knowing that the value of tools goes beyond their specs and includes the whole ownership experience. This support infrastructure is especially helpful for companies that have multiple units spread out in different areas. Consistently high-quality technical support makes sure that all devices work the same way, no matter where they are located.

Maximizing the Value and Longevity of Your UT123D Multimeter

Careful maintenance and smart use of accessories can make an instrument last longer and be used in more situations. When organisations use systematic care approaches, they protect their procurement investments and keep the reliability of their measurement capabilities.

Calibration Schedules and Accuracy Preservation

The UT123D is set to certain limits when it leaves the factory, but it needs to be checked on a regular basis to keep its accuracy. Setting calibration intervals that are right for the amount of use and how important the application is strikes a balance between accuracy assurance and calibration costs. For light-duty use at home or in school, it may only need to be checked once a year. On the other hand, for intensive daily use in quality-critical situations, it may only need to be checked every six months.

Calibration services check the readings from a device against standards that can be tracked. They write down the actual performance and change internal references when deviations are too big. Companies that don't have their own calibration tools can use third-party metrology services or work together through MXTD's service network. Keeping calibration records shows that you care about the accuracy of your measurements, which is important for businesses that are controlled by quality management systems.

Simple verification checks using known references give trust in ongoing accuracy in the time between official calibrations. By testing against a precise voltage reference or measuring parts with known values, the intelligent multimeter quickly confirms that it is still working as it should, letting users know about any problems that need to be looked into.

Battery Management and Power Considerations

The state of the battery directly impacts the accuracy of measurements and the availability of the gadget. The UT123D's low-power design makes the battery last as long as possible, but replacing the batteries regularly keeps them from dying when you need them most. If you don't respond quickly to low-battery signs, you run the risk of depleted cells leaking and damaging internal circuits, which is a failure mode that usually goes beyond guarantee coverage because it's caused by neglecting a consumable component.

Companies that keep a lot of different instruments might decide to use the same types of batteries for all of them. This would make buying batteries easier and make sure that technicians always have the right spares on hand. When organisations buy batteries in bulk through their supply chains, they can often get better prices than when they buy them individually. This is another small example of economies of scale at work.

Compatible Accessories and Application Expansion

Most general measurements can be taken with standard test leads, but specialised accessories can be used to do more. When there is a gap between the smart digital multimeter and the measurement points, longer lines are useful. Heavy-duty lines with better insulation and higher current values are best for tough jobs. Different probe tip adaptations, such as alligator clips, IC test clips, or piercing probes, make it easier to connect to different types of circuits.

Protective carrying cases keep instruments safe while they're being moved or stored. This is especially helpful for field service workers who need to move equipment from one job site to another. Some cases have space for extras like leads, spare batteries, and paperwork, in addition to the meter itself. Companies that outfit service vehicles might want to look into mounting options that keep instruments safe while they're in transit, while still letting them be accessed.

MXTD can help you find accessories that work with your instruments and can organise the buying of many accessories at once, which makes the process of getting them easier. This unified method makes sure that all accessories work with each other and could save money when many technicians are outfitted at the same time.

Professional Development and Community Resources

Maximising the value of tools includes more than just the gear. It also includes developing user knowledge. Documentation from the manufacturer, such as detailed operation manuals and application notes, gives you the basics. Online user groups provide a place for operators to share their experiences with applications, tips for fixing problems, and improved techniques that they have learned through real-world use.

Refresher training every so often helps teams stay skilled and learn about new features they might not use every day. Even instruments that seem simple, like the UT123D, have features that users don't notice until they are used a lot. Companies that pay for short training lessons often find features that aren't being used that make processes more efficient or measurement quality better, giving them returns that are many times greater than the time they spent on training.

Product update alerts let users know when software is updated, new accessories are released, or application resources are made available. By communicating with MXTD on a regular basis, organisations can make sure they get useful information to support the deployment of intelligent multimeters and other measurement equipment strategies.

Conclusion

Users at home, in schools, and in light workplace settings can all benefit from the UT123D Intelligent Multimeter Beginner or Home's useful measurement features and easy-to-use design. Its automatic range switching, AC/DC recognition, and current input detection get rid of common sources of error and speed up the measurement process. Safety features like CAT III 600V rating, non-contact voltage detection, and burn protection give operators the protection they need to do electrical work safely. MXTD's established delivery network, quick technical help, and flexible purchasing options for both standard items and custom configurations are all highly beneficial for businesses. Strategic upkeep, careful accessory selection, and ongoing user development maximise the long-term value of these measuring tools. This makes them reliable parts of complete quality assurance and diagnostic frameworks in a wide range of application settings.

FAQ

Is the UT123D suitable for professional engineering applications or primarily for home use?

The clever digital multimeter is in the middle. It is accurate enough and has safety certifications for light commercial, educational, and everyday maintenance uses besides home use. Its CAT III 600V rating and true RMS measurement make it suitable for professional uses with distribution-level electrical systems. More specialised instruments are needed for highly specialised engineering work that needs laboratory-level accuracy, wider frequency ranges, or more advanced connectivity features. To make sure the device meets the needs of the application, procurement managers should compare the device's specs to the application's needs.

How frequently should I calibrate the UT123D to maintain measurement accuracy?

Calibration times depend on how often you use the application, how important it is, and your organisation's quality standards. For light-duty or non-critical uses, yearly calibration is enough. For heavy-duty daily use or quality-critical measurements, however, verification every six months might be necessary. In some fields, regulations require that certain calibration frequencies be used. Organisations should write down calibration schedules that work for their specific operations. For customers who need traceable verification, MXTD can give them advice on the different calibration service options.

Where can I obtain official documentation and software updates for the device?

Through MXTD's customer help methods, you can get official operation manuals, quick-start guides, and application notes. You can ask for documentation or find out about firmware updates by emailing manager03@mxtdinfo.com. The company keeps up-to-date information about its products on its website, www.mxtdtest.com, which makes tools for setting up and using devices easy to find.

Partner With MXTD for Reliable UT123D Intelligent Multimeter Supply

Companies looking for a reliable UT123D Intelligent Multimeter Beginner or Home maker will find MXTD's product knowledge, ability to customise products, and quick customer service appealing. We have been in the measurement and control systems business for 12 years, so you can be sure that the intelligent multimeters we sell will meet strict quality standards and come with full technical support. We make procurement easier by using established logistics, competitive volume pricing, and a promise to respond within one hour. This is true whether we're outfitting maintenance teams, educational labs, or field service operations. Talk to our team at manager03@mxtdinfo.com about your needs for a smart digital multimeter and find out how our standard and unique solutions can help you meet your business goals effectively.
