Comprehensive Technical for the NI USB-6001 Low-Cost DAQ Device

The National Instruments (NI) USB-6001AI/AO/DIO/Counter USB Module Unit is a versatile, entry-level USB Data Acquisition (DAQ) module designed to bridge the gap between complex signal monitoring and cost-effective system deployment. Featuring a built-in screw terminal connection, the device allows engineers, researchers, and students to connect sensors directly without requiring external terminal blocks. Backed by the robust NI-DAQmx driver framework, the USB-6001 simplifies data logging, academic experimentation, and OEM embedded integration by combining analog inputs, analog outputs, digital I/O lines, and a 32-bit counter into a single, bus-powered enclosure.

Technical Specifications and Performance Breakthroughs

The USB-6001 AI/AO/DIO/Counter USB Module Unit serves as a foundational component within NI's low-cost USB DAQ product family, offering significant hardware upgrades over legacy models such as the USB-6008 and USB-6009.

​​​​​​​

Performance Comparison Matrix

To understand how the USB-6001 fits into the entry-level ecosystem, the table below highlights key parameters across the entry-level USB DAQ series:

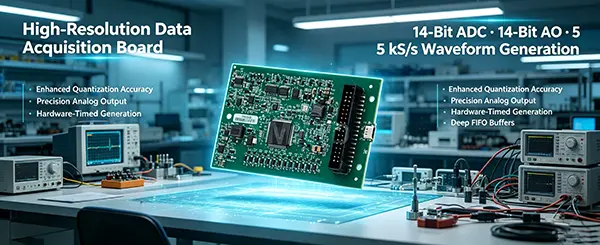

Key Hardware Upgrades Over Legacy Models- USB-6001 AI/AO/DIO/Counter USB Module Unit

Enhanced Quantization Accuracy: The ADC resolution has been increased from 12 bits to 14 bits, yielding a 4x improvement in signal-to-noise performance.

Precision Analog Output: Upgraded from 12 bits to 14 bits for finer resolution in control loops and excitation signals.

Hardware-Timed Waveform Generation: The analog output rate leaped from a software-timed 150 Hz to a hardware-timed 5 kS/s per channel, moving the device from slow DC monitoring to true dynamic waveform generation.

Deep FIFO Buffers: Both the AI and AO stages utilize a 2,047-sample FIFO buffer, significantly outperforming the 512-byte buffers of legacy modules to guarantee zero data loss during high-speed streaming.

Flexible I/O Footprint: The 13 digital I/O lines are independently configurable as either active push-pull or open-collector drives to accommodate varying logic level demands.

Architectural Deep-Dive and Core Functions

The internal hardware architecture of the USB-6001 AI/AO/DIO/Counter USB Module Unit revolves around an 80 MHz clock subsystem. It shares an identical PCB layout, I/O connector layout, and pin definitions with its higher-tier counterparts (the USB-6002 and USB-6003), enabling seamless drop-in upgrades without requiring field rewiring.

+-----------------------------------------------------------------------+

|                            USB 2.0 Bus Power                          |

+-----------------------------------------------------------------------+

                                   |

                                   v

+-----------------------------------------------------------------------+

|                          NI USB-6001 Module                           |

|  [80 MHz Core Clock]                             [2,047-Sample FIFO]  |

+-----------------------------------------------------------------------+

      |                      |                      |             |

      v                      v                      v             v

+-----------+          +-----------+          +-----------+ +-----------+

| Analog In |          |Analog Out |          |Digital I/O| |  Counter  |

| 8SE / 4DI |          | 2 Ch @    |          | 13 Lines  | | 1 x 32-bit|

| 14-bit    |          | 5 kS/s/ch |          | (Static)  | |  (5 MHz)  |

+-----------+          +-----------+          +-----------+ +-----------+

1. Analog Input Subsystem (AI)

The USB-6001 AI/AO/DIO/Counter USB Module Unit supports an absolute maximum operating range of ±10V across two distinct measurement topography modes:

Reference Single-Ended (RSE): Utilizes 8 independent channels where each input is referenced directly to Analog Ground (AI GND). This mode is best suited for isolated, grounded signal sources.

Differential (DIFF): Pairs channels into 4 differential groups (AI <0,4>, AI <1,5>, AI <2,6>, AI <3,7>) to successfully suppress common-mode noise. This mode is critical for floating signal sources or low-amplitude signals exposed to electromagnetically noisy environments.

2. Analog Output Subsystem (AO)

The dual-channel analog output engine features integrated overvoltage protection, an isolation buffer amplifier, a dedicated dual-channel DAC, an AO FIFO buffer, and robust control logic.

DC & Waveform Generation: Outputs static DC voltages up to ±10V for direct actuator control, or uses the hardware timing engine to generate low-frequency waveforms (e.g., step functions, slow ramps) at 5 kS/s per channel.

Power-On Behavior Warning: Users must note that a brief voltage spike ( -7V,10μs ) occurs naturally on the AO channels during initial hardware power-on or when exiting a computer suspend state. Sensitive signal conditioning circuitry should be added down-line if this spike affects downstream components.

3. Digital I/O and Counter Features

Software-Timed DIO: The 13 static digital lines are optimized for switch control, industrial relay driving, and digital state detection.

Flexible Routing: Line P1.1/PFI 1 and P2.0/PFI 0 can be multiplexed to serve as external hardware trigger lines (AI Start Trigger or AO Start Trigger) or as counter inputs.

Edge Counting: The 32-bit hardware counter reliably tracks rising and falling digital pulses on PFI lines up to a maximum input frequency of 5 MHz, making it perfect for pulse trains and rotary encoder monitoring.

Driver Integration and Multi-Language Software Development

The core framework running the USB-6001 is the NI-DAQmx driver system (minimum version 9.9 required). Rather than relying on rigid proprietary platforms, NI-DAQmx delivers an open unified API that allows applications to scale across various hardware layouts without rewriting the core measurement code.

Configuration Management via NI MAX

Through the NI Measurement & Automation Explorer (NI MAX), users gain access to direct hardware configuration tools:

Self-Test & Identification: Confirms device detection and validates internal registry settings.

Test Panels: Enables manual, real-time testing of AI, AO, DIO, and Counter circuits without writing code.

DAQ Assistant: An interactive step-by-step wizard that automatically builds measurement tasks and outputs ready-to-run configuration code blocks.

Simulated Devices: Allows developers to write and verify entire software application suites on virtual hardware before deployment.

Open-Source and Text-Based Language Support

If your team prefers to bypass expensive LabVIEW development licenses, NI provides free, high-performance low-level interfaces for alternative programming languages:

Python Support: Fully supported via the official open-source nidaqmx library. Implementation is as simple as executing pip install nidaqmx within your local command terminal.

C/C++ and C# (.NET): The official driver installation directory includes extensive ANSI C and native C# sample scripts covering static digital read/write operations, continuous voltage acquisition, and waveform driving.

Device Variants and Industrial Applications

To meet diverse manufacturing and deployment specifications, the USB-6001 is distributed in two physical form factors:

Closed-Shell Version (Part Number: 782604-01): Features a rugged mechanical housing with built-in screw terminal blocks. Ideal for benchtop environments and educational physics/electronic laboratories.

OEM Bare Board Version (Part Number: 782605-01): Strips away the external housing, weighing just 31 g and measuring a compact \(98 \times 64 \times 12\text{ mm}\). It integrates a 34-pin board-to-board connector for embedded systems or automated test stations.

Primary Application Mapping

Academic Experiments: Data acquisition labs requiring safe, easy-to-wire voltage verification.

Simple Data Recording: Long-term environmental logging of slow-changing parameters (e.g., barometric pressure, thermocouple-driven temperature monitoring).

Portable Measurement: On-site field diagnostic stations powered entirely via a laptop's USB hub.

Prototype Validation: Quick testing of early control algorithms and external sensor signal conditioning circuits.

Global Technology Partner: Xi'an Mingxi Taida Information Technology Co., Ltd.

Driving Innovation Through 12+ Years of Engineering Excellence

At Xi'an Mingxi Taida Information Technology Co., Ltd. (MXTD), we are more than just a supplier—we are a premier, full-service technology powerhouse. Backed by over 12 years of industry expertise, our operations seamlessly integrate advanced product Research and Development (R&D), global sales, and comprehensive technical support. Over more than a decade, our specialized production lines and dedicated R&D divisions have empowered businesses worldwide with cutting-edge instrumentation, data acquisition hardware, and embedded solutions tailored to a rapidly evolving industrial landscape.

Your Trusted Global Distribution and Supply Chain Partner

MXTD has built a robust international footprint, making us a preferred partner for enterprises across North America, South America, Europe, and Africa. In addition to manufacturing our own high-performance technology lines, we serve as an authorized distributor for major international brands. This dual capability allows us to offer an unparalleled product portfolio, ensuring that whether you need plug-and-play benchtop tools or specialized OEM components, your diverse engineering requirements are met under one roof, on time, and on budget.

Uncompromising Quality Control and Corporate Assurance

We understand that accuracy and reliability are non-negotiable in test, measurement, and automation. That is why MXTD enforces strict, meticulously detailed quality control protocols at every stage of the production and sourcing cycle. From initial component selection to final calibration checks, we ensure every product leaving our facility complies with stringent international standards. When you choose MXTD, you are investing in field-tested reliability, certified safety, and long-term operational confidence.

Core Market Applications and Business Capabilities

Authorized Brand Distribution: Streamlined procurement of leading global instrumentation hardware.

OEM/ODM Customization: Custom bare-board engineering, chassis design, and tailored PCB layouts.

Global Export Logistics: Secure, compliance-verified shipping infrastructure serving four continents.

End-to-End Technical Service: Dedicated post-sale engineering support to ensure seamless system deployment.

Connect With Our Global Sales Team Today!

Are you looking to optimize your procurement pipeline, source authentic international instrumentation brands, or co-develop a custom embedded hardware platform? Partner with a seasoned industry leader trusted by engineers across the globe.

Contact MXTD today to request a competitive quote, discuss bulk distribution discounts, or schedule a technical consultation with our engineering group. Let’s build the future of measurement together.

Contact our technical specialists at manager03@mxtdinfo.com  / manager02@mxtdinfo.com for detailed specifications, pricing information, or to discuss your custom requirements.

Frequently Asked Questions (FAQ)

Q1: Why am I getting completely incorrect data or severe cross-channel noise when connecting 8 analog signals?

This is typically caused by a mismatch between your software settings and your physical wiring topology. By default, the advertised 8 analog inputs refer to Reference Single-Ended (RSE) mode, where all 8 signals must share a common analog ground (AI GND). If your test environment suffers from ground loop variations or your sensors are floating, you must use Differential (DIFF) mode. DIFF mode suppresses common-mode noise but will halve your total available channel count from 8 down to 4. Check your NI-DAQmx channel configuration task to ensure the software matches your wiring arrangement.

Q2: What is the maximum voltage the board's analog input can handle? Can I measure a 24V industrial sensor directly?

The USB-6001 has a strict maximum operating range of ±10V. Connecting a 24V signal will not instantly burn out the chip because the device features built-in overvoltage protection up to ±30V (powered on) and ±20V (powered off). However, the signal will experience severe "clipping" at ±10V, resulting in unusable data. To safely measure 24V or higher industrial signals, you must place a precision voltage divider resistor network, an NI SCC signal conditioner, or an electrical isolation module in front of the input channel.

Q3: Why am I unable to configure "Hardware-timed" analog output (AO) or digital I/O (DIO) tasks on the USB-6001?

While the analog input (AI) channel features full hardware clock drive via its internal FIFO buffer, the analog output (AO) and digital lines (DIO) are architectural design compromises intended to keep the board low-cost. The USB-6001 does not possess a dedicated hardware timing engine for AO or DIO; these channels are strictly software-timed (on-demand). Consequently, you cannot use this module to generate high-precision, high-frequency continuous sine waves (the software-timed AO rate peaks at roughly 150 Hz and is heavily dependent on computer processor latency), nor can you run high-speed synchronous digital timing. If your application demands hardware-timed digital lines or megahertz-level generation, consider upgrading to the USB-6421 or higher-tier DAQ models.
