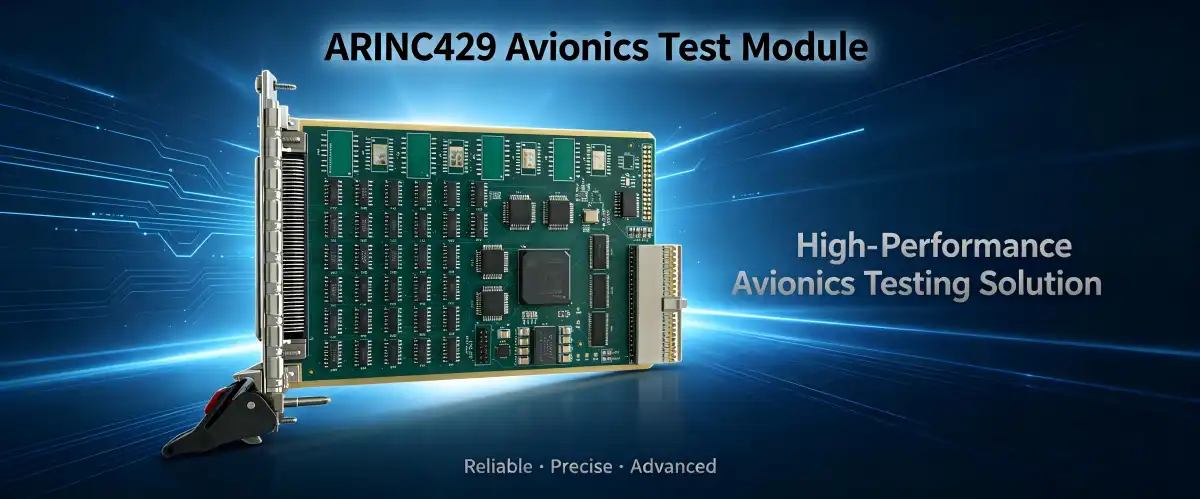

ARINC429 Avionics Test Module Applications in Aerospace

When modern aerospace systems demand ARINC429 avionics test module flawless communication between flight-critical components, the ARINC429 avionics test module emerges as an indispensable tool for verification and validation. This specialized testing equipment enables engineers to simulate, analyze, and troubleshoot ARINC 429 protocol communications—the backbone of avionics data transmission—ensuring aircraft systems meet stringent safety and performance standards. From production floors to maintenance hangars, these test modules safeguard operational integrity throughout an aircraft's lifecycle.

Understanding ARINC429 Avionics Test Modules

The ARINC 429 protocol has served as the aviation industry's workhorse data bus standard since the 1970s, facilitating point-to-point communication between avionics components at transmission rates of 12.5 or 100 kilobits per second. An ARINC429 avionics test module functions as both a signal generator and analyzer, capable of transmitting and receiving data words according to the protocol's precise electrical and timing specifications. These modules integrate seamlessly into PXIe chassis systems, providing test engineers with scalable measurement architectures that adapt to evolving project requirements.

Core Technical Capabilities

Modern test modules deliver exceptional accuracy in signal characterization, measuring parameters such as rise time, voltage levels, and bit timing to tolerances measured in nanoseconds. Each module typically supports multiple transmit and receive channels operating independently, allowing simultaneous testing of complex avionics networks. The hardware interfaces directly with industry-standard measurement platforms, enabling synchronized data acquisition alongside other instrumentation for comprehensive system validation. Our engineering teams regularly work with R&D managers seeking high-reliability solutions that match stringent aerospace specifications. The measurement precision these modules provide becomes critical when validating flight control systems, navigation equipment, and engine management interfaces, where communication errors could compromise safety. Signal integrity verification across temperature extremes and vibration profiles demands robust hardware design backed by proven manufacturing processes.

Protocol-Specific Features

ARINC 429 transmits data in 32-bit words with a defined label, source/destination identifier, data, sign/status matrix, and parity fields. Quality test modules decode these structures in real-time, presenting engineers with ARINC429 avionics test module human-readable parameter values rather than raw binary streams. Error injection capabilities allow systematic fault testing, simulating conditions like parity errors, timing violations, or corrupted data fields to validate system fault tolerance. Advanced modules offer programmable word scheduling, letting engineers replicate complex message sequences that mirror actual flight scenarios. This capability proves invaluable during system integration testing, where multiple line-replaceable units must exchange data according to precise timing protocols. Test engineers appreciate software-defined functionality that eliminates manual configuration while ensuring repeatability across test campaigns.

Applications and Benefits of ARINC429 Test Modules in Aerospace

Aerospace organizations deploy these testing solutions across three primary operational contexts: design verification, production testing, and field maintenance. Each application presents unique requirements, yet all demand unwavering reliability and measurement fidelity.

System Integration and Development

During aircraft development programs, system architects integrate dozens of avionics subsystems into cohesive platforms. Test modules become essential tools for validating communication pathways between flight management computers, displays, sensors, and actuators. Engineers configure the equipment to simulate missing components during partial system builds, allowing incremental integration testing before complete airframes become available.A typical integration scenario involves verifying autopilot commands transmitted from flight computers to control surface actuators. The test module monitors command messages while simultaneously checking response acknowledgments, measuring end-to-end latency, and validating data accuracy. This closed-loop verification identifies interface mismatches or timing issues early in development, preventing costly rework during later test phases.

Production Quality Assurance

Manufacturing environments utilize automated test equipment incorporating these modules to verify every production unit before delivery. High-throughput test stations cycle through standardized verification sequences, checking transmit/receive functionality, signal quality, and protocol compliance within minutes. This production testing ensures consistent quality while generating traceability records required by aerospace quality management systems. The economic impact proves substantial—detecting defects before installation reduces warranty claims and prevents expensive field failures. Production engineers value modules that integrate with existing test executives and database systems, streamlining data collection and analysis. Parallel testing configurations enable simultaneous verification of multiple channels, optimizing production cycle times without compromising test coverage.

Field Maintenance and Troubleshooting

Maintenance, repair, and overhaul facilities depend on portable test equipment to diagnose avionics faults in operational aircraft. Technicians connect test modules to aircraft buses, monitoring live traffic to identify communication anomalies or failed components. The ability to decode and display real-time message content accelerates fault isolation compared to traditional oscilloscope-based approaches. When intermittent faults challenge troubleshooting efforts, these modules capture extended data records for offline analysis. Built-in triggering on specific message patterns or error conditions helps technicians reproduce elusive problems. This diagnostic capability reduces aircraft downtime, directly impacting operational availability and maintenance costs—metrics critically important to airlines and defense operators.

How to Choose the Best ARINC429 Avionics Test Module for Your Aerospace Needs

Selecting appropriate test hardware requires balancing technical ARINC429 avionics test module specifications against project requirements and budget constraints. Procurement managers benefit from systematic evaluation frameworks addressing both immediate needs and long-term strategic considerations.

Performance and Accuracy Requirements

The channel count is the most important specification. For example, complex avionics systems may need to watch eight or more buses at the same time. Make sure the module can handle the data rates you need (12.50 and 100 kbps) and has accurate timing for checking protocol compliance. When checking that something meets the electrical requirements of ARINC 429, especially for production acceptance tests, voltage level accuracy is very important. For field use, temperature range and environmental toughness are very important. For modules to be used on the flight line, they need to be able to handle the highs and lows of temperature, vibration, and humidity that are common in operational settings. We've seen that industrial-grade parts and conformal sealing make things a lot more reliable in tough situations.

Market Landscape and Supplier Evaluation

Well-known companies like National Instruments, Keysight Technologies, Cobham Advanced Electronic Solutions, and Teradyne are in the testing tools market. Each has its own strengths: NI focuses on software flexibility and ecosystem integration, Keysight on broad protocol coverage, and Cobham on solutions that are specifically made for aircraft. Brand new companies like MXTD offer cheaper options compared to the big names in the industry, offering similar performance at reasonable prices. When choosing a supplier, how quickly they respond to technical help issues is a big factor. Aerospace projects have tight schedules, and when equipment breaks down, it directly affects how quickly milestones are delivered. Suppliers who can respond quickly to technical issues—ideally within an hour for important issues—significantly lower project risk. Warranty coverage, calibration services, and software update plans should all be carefully looked over during the procurement process.

Total Cost of Ownership Considerations

Besides the initial buy price, you should also think about the costs of integration, training, and upkeep. When modules work with the current test infrastructure, engineers don't have to spend as much time and money making new software. Standard chassis form factors, such as PXI Express, let hardware be used in more than one project, which protects financial investments. Companies that use the same platforms for multiple projects can get discounts if they buy in bulk. Customisation options add another layer to the decision-making process. Some projects need specific channel setups, more memory, or triggers that can only work with certain devices. Customised solutions from suppliers like MXTD's ODM/OEM services allow for better designs that meet specific application needs without affecting delivery times. For system integrators making custom test tools for aerospace clients, this flexibility is very useful.

Optimizing ARINC429 Test Module Use: Best Practices and Troubleshooting

Maximizing test effectiveness requires attention to setup procedures, measurement techniques, and systematic problem-solving approaches. Our experience supporting aerospace test programs has identified several practices that consistently deliver superior results.

Test Environment Configuration

Proper electrical grounding prevents measurement artifacts that compromise data integrity. Route signal cables away from power lines and switching electronics that generate electromagnetic interference. When testing inside aircraft or production fixtures, verify that bus termination resistors match ARINC specifications—incorrect termination causes signal reflections that introduce errors. Calibration status directly affects measurement reliability. Establish regular calibration intervals appropriate to your accuracy requirements, typically annually for production environments. Document calibration records to satisfy quality system requirements and provide measurement traceability. Before critical test campaigns, perform functional verification using known-good signal sources to confirm equipment operates within specification.

Signal Analysis and Diagnostics

Complete data collection is the first step in effective fixing. Set up modules for the ARINC429 avionics test module to record all bus action over long periods of time. This will catch intermittent problems that spot checks miss. By triggering on specific label fields or data patterns, important messages are separated from high-traffic buses, which makes analysis easier. Time correlation with other system events helps figure out the complex failures' cause-and-effect relationships. Common diagnostic scenarios include looking for missing messages by making sure the physical connections and transmitter are working, looking into corrupted data by checking the signal quality and timing parameters, and fixing addressing conflicts by checking the label assignments across all system components. When protocol analysers are built into test modules, they instantly decode message structures and show data in engineering units instead of hexadecimal.

Software Tools and Automation

Modern test software turns hardware powers into useful engineering tools. Look for platforms with scripting interfaces that can automate test processes that are done over and over again. This will cut down on execution time and eliminate operator errors. Integration of databases allows for tracking analysis across production lots or fleet operations, which finds systemic problems that need to be fixed. Real-time visualisation helps engineers understand how complex systems work. During debug sessions, graphical displays that show message traffic, parameter trends, and error data give developers immediate information. During system integration, when multiple engineers work together to fix interaction problems between subsystems, these tools are especially useful.

Future Trends and Innovations in ARINC429 Testing Technology

The aerospace testing landscape continues evolving in response to technological advances and operational demands. Understanding emerging trends helps procurement managers make forward-looking investment decisions.

Protocol Convergence and Multi-Standard Testing

ARINC 429, ARINC 664 (AFDX), MIL-STD-1553, and Ethernet protocols are used more and more in mixed avionics architectures on modern aeroplanes. Next-generation test platforms handle more than one standard on a single piece of hardware. This lowers the cost of equipment and makes test infrastructure easier to use. Engineers like being able to connect messages from different types of networks, which is important for troubleshooting integrated systems that use more than one communication domain. This trend toward convergence increases the need for adaptable, software-defined test equipment that can change with new protocols through firmware updates instead of hardware replacement. Our development plan focuses on systems that can be changed to support new avionics standards without throwing away investments that have already been made. This method keeps customers safe from changes in technology while still working with old systems that need long-term care.

Portable and Automated Solutions

Miniaturisation makes it possible to put powerful testing tools in compact forms that can be used in the field. Handheld analysers that are powered by batteries bring lab-level measurements to the flight lines and outlying maintenance sites. These small tools work well with rack-mounted systems and give you options for a wide range of working situations. Remote monitoring and data sharing are made possible by wireless connectivity, which helps distributed engineering teams. Automation keeps getting better with the help of AI apps that find fault patterns and suggest ways to fix them. Machine learning algorithms that have been trained on past test data can find strange patterns that show early signs of failure before they become full failures. With this predictive ability, maintenance moves from fixing problems after they happen to managing reliability before they happen. This cuts down on business disruptions and lifecycle costs.

Conclusion

ARINC429 avionics test units are important parts of the infrastructure that help build, test, and maintain aerospace systems. These specialised tools make sure that communication stays stable across flight-critical avionics networks. This directly improves safety and working efficiency in the aviation industry. When choosing a supplier, the criteria should take into account technical performance, supplier skills, and total ownership costs, as well as what the needs of the future will be. Businesses benefit from working with responsive suppliers that can both offer standard goods and make changes to them. As avionics designs move toward mixed-protocol implementations, flexible test platforms allow engineering teams to deal with new problems while keeping existing systems compatible for longer service lifetimes.

FAQ

1. What distinguishes ARINC429 test modules from general-purpose avionics test equipment?

ARINC429 test modules provide protocol-specific capabilities, including compliant transmitters and receivers, automatic message decoding, and timing analysis calibrated to standard specifications. General-purpose equipment lacks these specialized features, requiring extensive manual configuration and interpretation. Dedicated modules accelerate testing while ensuring accurate compliance verification against ARINC 429 electrical and protocol requirements.

2. How do I ensure compatibility between test modules and existing PXI systems?

Verify that modules comply with PXI Express specifications and confirm chassis backplane bandwidth supports your channel count and data logging requirements. Check driver compatibility with your software environment, whether LabVIEW, TestStand, or custom applications. Reputable suppliers provide detailed compatibility matrices and integration support, minimizing procurement risk. We recommend requesting evaluation units for critical applications to validate performance within your specific configuration before volume purchases.

3. What support and warranty should I expect?

Standard warranty coverage typically spans one year, including hardware repairs and software updates. Premium support packages offer extended warranties, priority technical assistance, and on-site service for mission-critical applications. Responsive suppliers provide technical guidance within hours rather than days, crucial during time-sensitive project phases. Clarify calibration services, spare parts availability, and end-of-life support policies during procurement negotiations to establish clear long-term expectations.

Partner with MXTD for Reliable ARINC429 Avionics Test Module Solutions

MXTD delivers comprehensive ARINC429 avionics test ARINC429 avionics test module module solutions engineered for aerospace professionals demanding uncompromising reliability and performance. Our PXIe-based platforms benchmark against NI products while offering superior cost-effectiveness without compromising quality or capability. We maintain a ready inventory of standard configurations and provide customized ODM/OEM designs tailored to your specific parameter requirements. Technical specialists respond within one hour to support inquiries, backed by remote video guidance, complimentary software upgrades, and one-year warranty coverage. Our moisture-proof, shock-resistant packaging protects precision instrumentation during land and air transportation to your facility. Whether you're an ARINC429 avionics test module manufacturer seeking components or a system integrator requiring turnkey solutions, we invite you to explore how our 12 years of measurement expertise can support your aerospace testing needs. Contact our team at manager03@mxtdinfo.com to discuss your application requirements and discover the MXTD advantage.
