16-Channel PXIe SPDT Switches - Professional Switching Solutions

Looking for reliable switching solutions for your test and measurement applications? Our 16-Channel PXIe SPDT Switches deliver exceptional performance with 16 single-pole double-throw outputs on a standard 3U board format. These high-quality switches back numerous transport interfacing counting PXIe, CPCI, PCIe, and PCI, making them idealize for different testing situations. With evaluated exchanging capacity of 30VDC@1A and greatest voltage taking care of up to 220VDC/250VAC, you get the flexibility required for requesting applications.

Product Description

Xi'an Mingxi Taida presents professional-grade exchanging modules outlined for accuracy testing and estimation frameworks. Our switches combine strong development with solid execution, guaranteeing reliable operation over thousands of exchanging cycles.

Technical Specifications

Parameter	Specification
Physical Dimensions
Standard PCIe/PCI	175mm × 106mm × 20mm (±0.2mm tolerance)
Standard PXIe/PXI/CPCI 3U	160mm × 100mm × 20mm (±0.2mm tolerance)
Electrical Performance
Channels	16 single-pole double-throw outputs
Rated Switching Capacity	30VDC @ 1A
Maximum Switching Voltage	220VDC / 250VAC
Maximum Switching Current	1A
Maximum Switching Power	30W, 62.5VA
Timing Characteristics
Closing Time	3ms maximum
Opening Time	5ms maximum
Reliability
Relay Electrical Life	≥100,000 cycles (rated load: 30V/2A)
Interface Specifications
PXI/CPCI/PCI	32-bit, 33MHz, 132MB/s
PXIe/PCIe	x4, 4Gbps
Environmental
Commercial Grade	-20℃ to +60℃
Industrial Grade	-40℃ to +70℃
Storage Temperature	-55℃ to +85℃
Relative Humidity	5% to 90% (non-condensing)

Applications

Test Equipment Integration

Perfect for robotized test gear requiring flag steering and exchanging capabilities. Your test frameworks advantage from solid flag way administration over different channels.

Data Acquisition Systems

Enhance your estimation precision with exact exchanging control. Numerous input sources can be effectively steered to single estimation channels.

Simulation Environments

Create complex test scenarios by switching between different signal sources and loads. Ideal for hardware-in-the-loop testing applications.

Communication Testing

Route signals between various communication interfaces and test equipment. Essential for protocol testing and validation.

Functionality

Our 16-Channel PXIe SPDT Switches provide comprehensive switching control through software-programmable relays. Each channel operates independently, allowing you to create custom signal routing configurations. The double-throw design enables switching between two signal paths per channel, effectively providing 32 connection possibilities across 16 channels.

Key Features

Multi-Bus Compatibility: Supporting PXIe, CPCI, PCIe, and PCI interfacing guarantees integration with your existing test platforms.

High Unwavering quality: Over 100,000 exchanging cycles ensure long-term operation in requesting environments.

Fast Exchanging: Fast reaction times with 3ms closing and 5ms opening guarantee effective test execution.

Robust Plan: Industrial-grade temperature run and stickiness resilience back cruel working conditions.

Comprehensive Computer program Bolster: Total driver bundles and demo programs quicken your improvement process.

Custom Design

We get it that standard arrangements do not continuously meet particular prerequisites. Our building group gives OEM/ODM customization administrations to adjust the item for your special applications. Whether you require adjusted electrical determinations, distinctive shape variables, or specialized program interfacing, we can create custom fitted solutions

Custom options include:

Modified channel configurations
Enhanced electrical ratings
Specialized connector arrangements
Custom software development
Application-specific testing and validation

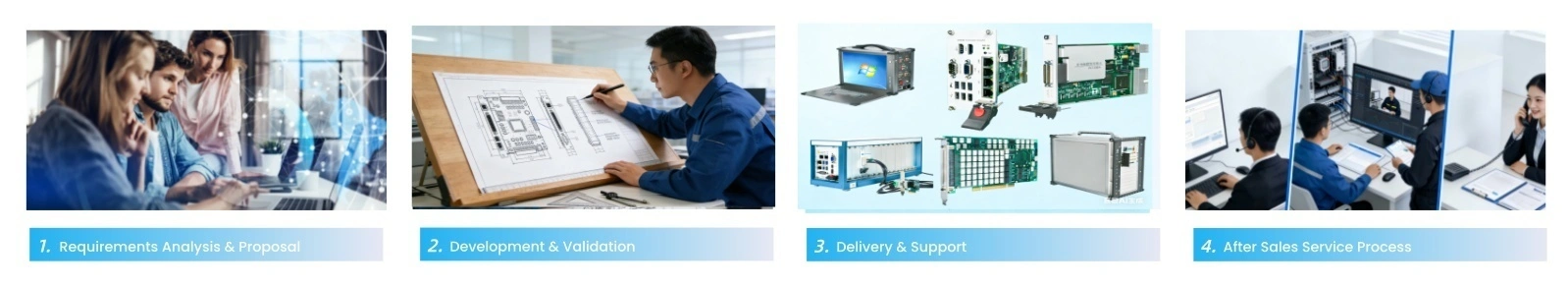

Customization Process

Why Choose MXTD？

12+ A long time of Industry Involvement: Our profound skill in estimation and control frameworks guarantees you get demonstrated, dependable solutions.

Expert R&D Group: Ceaseless development drives our item improvement, keeping you ahead with cutting-edge technology.

Quality Confirmation: Strict fabricating forms and comprehensive testing ensure steady item quality.

Comprehensive Bolster: From beginning discussion through establishment and progressing support, our group bolsters your success.

Fast Reaction: Our proficient benefit group rapidly addresses your specialized questions and customization requirements.

Secure Conveyance: Joining forces with solid coordinations suppliers guarantees secure, followed, and safety net provider shipping of your orders.

Customization Process

Logistics and Transportation

FAQ

Q: What bus interfaces are supported?

A: Our switches support PXIe, CPCI, PCIe, and PCI bus interfaces with corresponding performance specifications.

Q: Can I control individual channels independently?

A: Yes, each of the 16 channels operates independently through software control.

Q: What operating systems are supported?

A: Standard support includes Windows 98/2000/2003/XP/7/10, with custom support available for Linux, VWorks, RTX, and LabVIEW RT.

Q: Do you provide software drivers?

A: Complete software packages include drivers, dynamic libraries, and demo programs for quick integration.

Q: Is customization available?

A: Yes, we offer OEM/ODM services to modify specifications, form factors, and software interfaces according to your requirements.
