What Makes a PXIe 64-Channel Digital I/O Module NI-Compatible?

An NI-compatible PXIe 64-channel digital I/O module must meet specific hardware standards, software integration requirements, and performance specifications established by National Instruments. These modules feature standardized PXIe form factors, certified drivers that work seamlessly with LabVIEW and TestStand environments, and rigorous electrical specifications that ensure reliable signal integrity. The compatibility extends beyond basic connectivity to include timing synchronization, data throughput capabilities, and comprehensive API support that enables engineers to integrate these modules into existing test and measurement systems without extensive modifications.

Understanding NI-Compatible PXIe 64-Channel Digital I/O Modules

For modern testing and industrial automation, you need digital interfaces that are stable and can handle multiple signal lines at the same time. PXIe digital I/O modules are the next step in modular instrumentation. They give engineers and system builders more design options than ever before for automated test tools and control systems.

Architecture and Channel Configuration

The design of these units is based on fast digital processing that handles 64 separate channels using advanced technologies for multiplexing and signal handling. Depending on the module design, each channel works as a separate line that can handle both input and output data at voltage levels that can be programmed from 3.3V to 24V.Engineers can use software to give individual channels as inputs or outputs on the fly, thanks to the freedom of channel configuration. This flexibility is very important in situations where the signal needs change depending on the test mode or operating mode. The internal design has specific buffer circuits and isolation barriers that keep the signal integrity across the whole 64-channel array and stop cross-talk between channels that are next to each other.

Electrical Signal Characteristics

The limits of what digital I/O units can do and how well they can do it are set by the signals they send. These factors include rise and fall times, which are usually recorded in nanoseconds and show how fast signals can change from one processing state to another. When analog signals are turned into digital highs or lows, they are determined by input threshold voltages. Output drive capabilities tell us how much current each channel can source or sink.Specifications for timing include setup and hold times that make sure data transfers between the module and external devices work reliably. Engineers can fine-tune signal changes for certain uses where electromagnetic interference needs careful control of signal edge rates thanks to advanced modules that have adjustable slew rate control.

Software Integration Ecosystem

One important thing that sets professional-grade modules apart from basic digital interfaces is their ability to work with different kinds of software. The connection goes all the way into the LabVIEW programming environment, where engineers can use simple graphical programming tools to get to module features. These layers of software turn complicated hardware exchanges into easy-to-use function blocks that make building apps faster and easier.Integration with TestStand makes it possible to create automated test sequences that include digital I/O processes as part of bigger test methods. The software environment has a lot of useful tools like detailed instructions, example programs, and troubleshooting tools that help development teams learn faster and get up to speed faster.

Key Features That Define NI-Compatibility

To be truly NI-compatible, NI-compatible PXIe 64-channel digital I/O module you have to follow a number of technical guidelines and approval methods that check the performance and dependability of the module. These features set approved modules apart from generic ones that might have the same number of channels but don't have the level of interaction needed for professional use.

Hardware Conformance Standards

Hardware conformance starts with technical specs that make sure the parts fit correctly and that heat is managed properly in PXIe chassis settings. To keep interference from happening with other modules or sensitive measuring equipment, the modules must meet strict standards for size, connectors, and electromagnetic compatibility.Electrical compatibility includes how much power is used, how signals must be kept separate, and safety circuits that protect both the module and any external equipment that is linked to it. Advanced modules have hot-swap features that let you install and remove them without turning off the whole system. This is an important feature for repair work in settings with ongoing production.

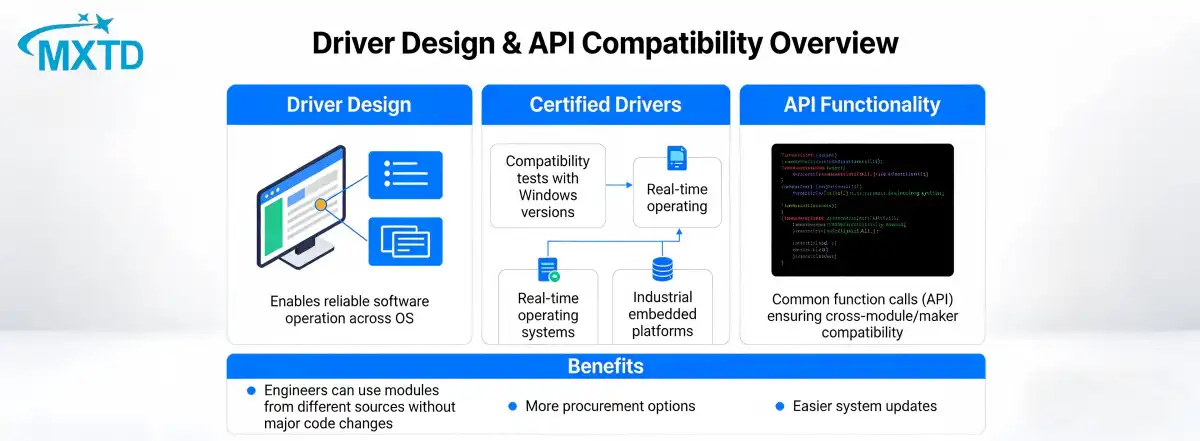

Driver Architecture and API Support

Driver design is what makes it possible for software to work reliably with many different operating systems and development platforms. Certified drivers go through a lot of tests to make sure they work with different versions of Windows, real-time operating systems, and embedded platforms that are popular in industrial settings.The Application Programming Interface (API) sets common function calls that work the same way on all module generations and makers. Because of this, engineers can make apps that work with modules from different sources without having to make big changes to the code. This gives them more options when they buy things and when they update the system.

Certification and Quality Assurance

For certification, strict testing methods are used to make sure that modules work properly in a range of environments and operating situations. Some of these tests are temperature cycles, resistance to vibration, immunity to electromagnetic interference, and long-term stability tests that mimic years of nonstop use.Quality assurance includes more than just getting certified. It also includes keeping an eye on production and checking each batch to make sure that every unit meets performance standards. There are detailed calibration certificates and traceability records that come with certified modules. These help quality management systems in businesses that are controlled.

Comparing PXIe 64-Channel Digital I/O Modules with Other Interfaces

When deciding between PXIe and other digital I/O interfaces, speed needs, system design limitations, and long-term operational issues must all be carefully considered. Knowing these differences helps buying teams make choices that are in line with the goals of the project and the available funds.

Performance and Throughput Analysis

When it comes to data throughput, PXIe connections are better than USB-based options. They can reach aggregate bandwidths that support high-speed digital pattern creation and capture apps, including NI-compatible PXIe 64-channel digital I/O modules. For multiple modules in the same chassis to work together smoothly, the specialized PXIe backplane provides the precise time that is needed.It's important to think about latency in real-time control apps where reaction times need to stay within microseconds. When compared to USB connections, which have to share bandwidth with other system peripherals and the operating system, PXIe devices tend to have lower and more stable latency times.

Integration and Ecosystem Advantages

The mature software environments that include extensive libraries, documentation, and community help tools are advantageous to NI-compatible PXIe 64-channel digital I/O module. This ecosystem benefit means faster development and lower technical risk for complicated projects that need different types of instruments to work together.Because PXIe systems are flexible, engineers can mix and match digital I/O modules with analog measurement cards, signal generators, and other instruments all within the same software environment. This ability to integrate is especially useful in automated test tools where mixed-signal testing needs to coordinate between different measurement areas.

Total Cost of Ownership Considerations

Acquisition prices, development time, upkeep needs, and system lifecycle factors must all be taken into account in a total cost analysis. Even though PXIe modules may cost more at first than USB options, the benefits of connectivity and shorter development times often make the total project costs less.When doing maintenance, you should think about things like updating drivers, replacing hardware, and getting professional help when you need it. Established PXIe sellers usually have longer product lifecycles and better support for older systems than USB interface companies that focus on consumers.

Troubleshooting and Maintenance of NI-Compatible PXIe Digital I/O Modules

Troubleshooting strategies and preventive maintenance methods that work well make sure that systems run at their best and that they experience as little unexpected downtime as possible. Knowing the most common types of failure and how to diagnose them helps support teams fix problems fast and keep the system reliable.

Common Signal Integrity Issues

Signal integrity problems usually show up as timing issues, transmission mistakes that come and go, or sudden changes in the reasoning state. Usually, these problems are caused by bad grounding, cables that are too long, or electromagnetic interference from equipment nearby. Using oscilloscopes to check rise times, overshoot traits, and noise levels are the first steps in a systematic analysis.As part of inspecting cables and connectors, you should check the stability of the contacts, the amount of strain relief, and the consistency of the shielding. Changes in temperature, humidity, and vibrations in the environment can all affect how well a connection works and how well signals are sent over time.

Firmware and Driver Management

Firmware patches fix bugs, make the system run faster, and make it more compatible with other devices. These changes make the module's powers greater and fix known problems. Setting up regular update schedules makes sure that systems get the latest changes from the maker and stay stable by following the right testing steps.Keeping track of driver versions is very important for systems with various modules or environments with drivers from different vendors. Compatibility matrices help you find mixtures of drivers that work together and avoid problems that could make your system unstable or slow down.

Environmental and Lifecycle Factors

To make sure that working conditions stay within the manufacturer's guidelines, environmental monitoring includes keeping track of temperature, humidity, and shaking. Going over environmental limits can make parts wear out faster and cause more failures in important uses.Lifecycle management includes keeping track of how modules are used, making sure they are calibrated on time, and deciding when to replace them based on what the maker suggests and how they are performing. By replacing old modules before they break, you can avoid unexpected crashes during important activities.

Procurement Considerations for NI-Compatible PXIe 64-Channel Digital I/O Modules

When making strategic procurement choices, you have to find a balance between technical needs, supplier skills, and cost goals, all while making sure that the system can be supported in the long run. Knowing about these things helps people who work in buying make the best use of investments and reduce technology risks.

Technical Specification Alignment

The first step in specification alignment is a thorough look at the channel requirements, which include the voltage levels, current limits, and time features that are needed for each application. For instance, an NI-compatible PXIe 64-channel digital I/O module would need its voltage and current specifications carefully matched to the target devices to avoid over-specifying or under-specifying. Over-specifying modules can make them more expensive than they need to be, and under-specifying them can make the system work less well or require expensive changes in the future. Environmental standards, such as working temperature ranges, shock and vibration protection, and electromagnetic compatibility standards, must meet the conditions of the application. When compared to lab settings, industrial settings often need ruggedized units with better safety features.

Supplier Evaluation and Partnership

When judging a supplier, you should look at their technical knowledge, their ability to make things, their quality control systems, and how stable their business will be in the long run. Suppliers that have been around for a while and have a track record in the test and measurement markets are more likely to continue to support their products and make parts available.Partnership opportunities may include customization services, volume pricing agreements, and technical support arrangements that provide competitive advantages. The following key perks of partnerships make buying more valuable:

• Customization features that let modules be changed to fit specific application needs without having to make whole new hardware platforms
• Volume price models that lower the cost per unit for large-scale operations while keeping quality standards and delivery dates
• Technical support services, such as application building help, training programs, and quick fixing that keep project delays to a minimum
• Lifecycle management tools that let you know about changes to products ahead of time, plan for when they will become obsolete, and find ways to improve systems as their needs change

Logistics and Support Infrastructure

Logistics issues include keeping track of supplies, planning supply times, and coming up with emergency replacement plans that keep the system running. For projects that need to be done quickly, suppliers with global distribution networks and local help are better able to respond.An assessment of the support infrastructure should look at the quality of the documentation, the availability of training, and how quickly professional support is provided. NI-compatible PXIe 64-channel digital I/O modules from well-known manufacturers usually come with a lot of support materials that make application easier and speed up launch times.

Conclusion

Technical specs, integration needs, and provider skills must all be carefully taken into account when choosing the best NI-compatible PXIe 64-channel digital I/O module. When it comes to industry automation, aerospace testing, and research, these units are a must-have for providing solid digital signal handling. These units work consistently in tough settings because they meet approval standards for hardware conformance, software integration, and performance. Knowing the important parts, how to fix problems, and things to think about when buying something helps the engineering and purchasing teams make smart choices that improve system performance while keeping costs and technical risks under control.

FAQ

What voltage levels do NI-compatible PXIe 64-channel digital I/O modules support?

Most modules work with a number of different voltages, such as 3.3V, 5V, 12V, and 24V logic levels. They also have adjustable limits for input channels and output drive levels that can be set.

How do these modules integrate with LabVIEW software?

Certified drivers provide native LabVIEW VIs (Virtual Instruments), which let you handle modules directly through graphical programming interfaces without having to do any low-level code.

What is the typical channel-to-channel isolation specification?

Professional units usually offer channel-to-channel separation of 1000V or higher, which protects sensitive equipment and makes sure it works reliably in noisy industrial settings.

Can these modules operate in harsh industrial environments?

Yes, ruggedized versions are made to work in harsh environments with temperatures ranging from -40°C to +85°C, as well as meet standards for shock and pressure and electromagnetic compatibility.

What maintenance procedures are recommended for long-term reliability?

Updating the software, checking the calibration on a regular basis, keeping an eye on the surroundings, and checking the connectors all help the module work at its best and last longer.
