What Features Make DS1054Z Digit Wave Generator 4 Channel Stand Out?

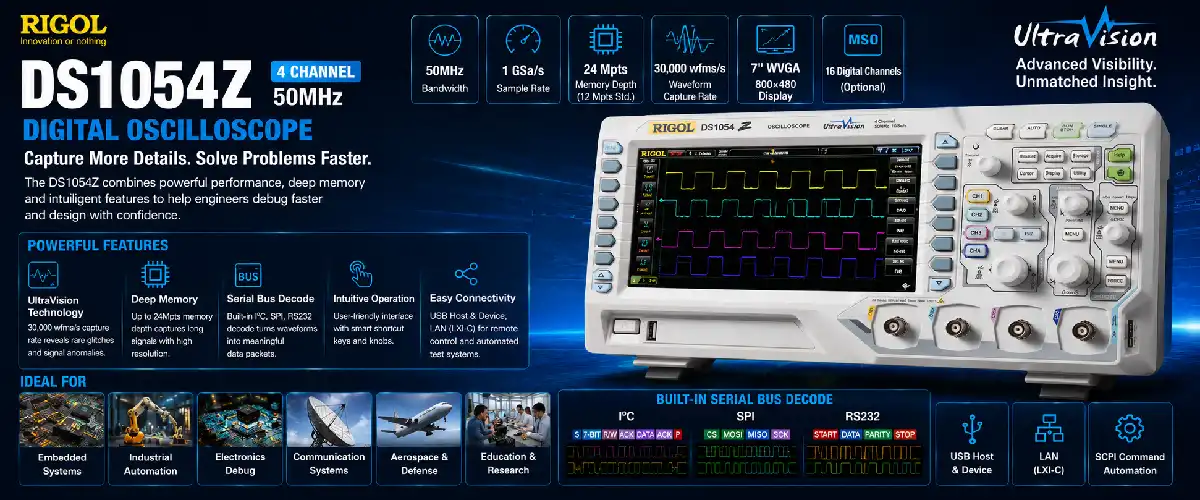

The DS1054Z Digit Wave Generator 4 Channel has completely changed how test engineers and R&D workers test multichannel oscilloscopes without spending a lot of money. This digital oscilloscope has four channels that sample at the same time, UltraVision technology that can record up to 30,000 waveforms per second, and deep memory storage up to 24 Mpts. It also costs a lot less than other four-channel options. Its 7-inch WVGA display with 256-level grayscale gives signals as much clarity as instruments that cost twice as much. This makes it a great choice for industrial automation, semiconductor testing, and military uses where accuracy in measurements is essential.

Comprehensive Specifications That Drive Performance

Performance specs are very important when looking at oscilloscopes for business use. The DS1054Z digital oscilloscope can measure things that help engineers in many different fields solve problems in the real world.

Multi-Channel Architecture for Complex Signal Analysis

Engineers who work with embedded systems, power electronics, or communication methods will benefit greatly from the four-channel simultaneous sampling feature. This tool can record four separate analog signals at the same time, unlike two-channel oscilloscopes that require you to constantly switch probes. You can watch the SPI clock, data in, data out, and chip select lines all at the same time when fixing microcontroller connections. This makes troubleshooting much faster. The design can be upgraded to 16 digital channels through MSO features, which makes it more flexible for mixed-signal testing situations that are common in FPGA development and semiconductor validation.

High-Speed Sampling System

The ADC sample method works at 1 GSa/s for measurements on a single channel, 500 MSa/s for measurements on two channels, and 250 MSa/s for measurements on all four channels. This sample rate makes sure that fast transients and high-frequency parts up to 50 MHz bandwidth are accurately captured. It can handle both small sensor signals and high-voltage power readings thanks to its 8-bit vertical precision and sensitivity range of 1 mV/div to 10 V/div. This measurement range is useful for test engineers who work with RF envelope detection, power supply ripple analysis, or analog signal integrity. They don't need to use a lot of different tools.

Deep Memory for Extended Signal Capture

The standard memory level of 12 Mpts (which can be increased to 24 Mpts) lets you store signals for a long time while keeping the highest sample rates. This memory space is very helpful for recording mistakes that happen from time to time, studying bursts of serial communication, or keeping track of how signals behave over long periods of time. When working with four channels, the memory wisely assigns 3 Mpts to each channel, allowing both detailed waveform analysis and a clear view of the whole system. Engineers no longer have to choose between sample precision and time window length, which was a problem with cheaper oscilloscopes in the past.

With these detailed specs, the DS1054Z is a serious measuring tool for industrial testing settings where dependability and accuracy have a direct effect on product quality and development timelines.

Revolutionary UltraVision Technology for Enhanced Signal Visibility

UltraVision core technology, which is unique to RIGOL, completely changes how engineers work with waveform data, fixing problems that made people unhappy with older digital oscilloscopes.

Exceptional Waveform Capture Rate

The 30,000 waves per second recording rate of the DS1054Z Digit Wave Generator 4 Channel makes it much more likely that rare signal anomalies that happen randomly during system operation will be found. With older oscilloscopes that have slower recording rates, there is "dead time" between scans. This is when important glitches can't be seen. This fast grab feature finds issues that regular instruments miss when checking the stability of the power source under dynamic loads or fixing communication problems. This feature is especially useful for engineers who test gadgets in space or validate car systems because it helps them find short-term problems that affect the reliability of the system.

Digital Phosphor Technology

The 256-level grayscale intensity grade works like the phosphor persistence on an analog oscilloscope, making it easy to see how signals change over time. Waveform features that happen more often show up as brighter traces, while those that happen less often show up as darker traces. Without having to set up a lot of complicated triggers, this display method helps engineers quickly tell the difference between normal changes in signals and strange ones that could be a problem. When looking at noisy signals, clock jitter, or modulation quality, the visual picture shows right away signal characteristics that would need a lot of statistical analysis on tools that don't have this technology.

Hardware-Based Waveform Recording

Built-in waveform recording can store up to 60,000 frames of data directly in hardware memory, so you can play them back and analyze them right away. Without using outside computers, test engineers can write down full test steps, watch how signals change when there is a problem, and share measurement proof with design teams. This feature comes in handy when techs are troubleshooting a production line and need to record intermittent breakdowns so that engineers can look at them later without stopping the manufacturing process.

UltraVision technology is a big step forward in making oscilloscopes easier to use. It turns complicated signal behavior into useful engineering insights that speed up development and make products better.

User-Centric Design and Practical Usability Enhancements

Beyond its basic specs, the DS1054Z oscilloscope has been thoughtfully designed to cut down on user training time and boost daily productivity for test engineers and techs.

Intuitive Interface Layout

The 7-inch WVGA color panel (800x480 pixels) makes it easy to see waveforms even in labs or factories with lots of light. The controls are grouped together in a way that makes sense, and the buttons for horizontal and vertical changes are placed in a way that makes them easy to use with one hand. Menu access is based on simple structures that are easy for new users to understand without having to do a lot of research by hand. Engineers with a lot of experience like how the fluid interface doesn't slow down work when they need to debug quickly. This way of thinking about design makes using instruments easier on the brain, so engineers can focus on data analysis instead of figuring out how to use the controls.

Comprehensive Triggering Capabilities

The triggering system has different trigger types, such as edge, pulse width, video, pattern, and others, so it can pick out specific signal events. Engineers can set off alarms based on certain data trends, timeout conditions, or setup violations when they are fixing communication protocols. The trigger sensitivity and holdoff settings let you fine-tune the capture control without having to use trigger conditioning circuits from outside the camera. System builders who work with complicated multi-board systems really like these advanced triggering choices for connecting events that happen in different sections that are linked to each other.

Standard Interface Configuration

Built-in USB host and device ports make it easy to move data, update firmware, and handle devices from afar without having to buy expensive proprietary interfaces. Engineers can save screenshots, send waveform data for analysis in MATLAB or Python, and use normal SCPI commands to connect the device to automated test systems. LAN connectivity choices allow engineers to reach the lab from afar, so they can look over data without being at the test bench. This adaptability in connecting fits with current distributed engineering processes where design teams work in different places.

These usage improvements turn vague engineering needs into useful workflow gains that shorten project timelines and lower the chance of operator mistakes during important measurement tasks.

Competitive Positioning and Market Value Assessment

Knowing how the DS1054Z stacks up against other oscilloscopes helps buying managers make smart choices that meet technical needs and stay within budget.

Performance Relative to Series Variants

The DS1054Z Digit Wave Generator 4 Channel from RIGOL's DS1000Z family strikes a good mix between channel count and price. The DS1074Z and DS1104Z have bigger bandwidths (70 MHz and 100 MHz, respectively), but they cost more, which may be too much for many digital electronics uses. The DS1054Z has enough bandwidth for engineers working with microcontroller systems, industrial sensors, or data interfaces that run below 50 MHz, so they don't have to buy extra test tools. When debugging systems with multiple messages going at the same time, the four-channel setup is more useful than the two-channel options.

Competitive Landscape Analysis

The DS1054Z always has better price-to-performance rates than options like the Siglent SDS1104X-E, Keysight DSOX1204G, Tektronix TBS2104B, and Hantek. Test and measurement journals that review the industry say that the accuracy of the measurements is about the same as that of tools that cost 40 to 60 percent more. At this price point, the four channels, large memory, and high waveform capture rate make it a great deal for companies that need to supply many engineering computers or school labs. Procurement teams that are watching their budgets can save money without giving up important measurement tools that are needed for professional development work.

Proven Reliability Track Record

Since it was first released in 2014, the DS1000Z line has been used in a lot of different settings, including electronics factories, research centers, and aircraft testing facilities. Electronic Products magazine named RIGOL's earlier DS1052E model "Product of the Year" in 2009. This gave the company respect in the competitive oscilloscope market. For businesses that need reliable test equipment that stays calibrated and works the same way after years of daily use, this proven dependability is very important.

When technical decision-makers think about the total cost of ownership, which includes more than just the original purchase price, these competitive factors help them think about things like long-term stability, support infrastructure, and organizational fit.

Procurement Considerations and Enterprise Support Infrastructure

In addition to technical specs, a successful oscilloscope rollout needs reliable ways to buy the equipment and full support after the sale that keeps operations running as smoothly as possible.

Flexible Acquisition Options

For now, you can still get the DS1054Z from approved distributors who offer low prices and discounts for buying in bulk. Flexible purchasing plans that work with budget cycles and phased rollout schedules are helpful for companies that need to equip whole engineering teams or educational labs. Xi'an Mingxi Taida Information Technology Co., Ltd. (MXTD) has been in the measurement and control business for more than 12 years and offers both basic goods and configurations that are made to fit the needs of each application. Their quick quote process usually answers customer questions within an hour, which helps with the tight deadlines for purchases that happen a lot in fast-paced development settings.

After-Sales Technical Support

Full insurance coverage backed by helpful technical support teams makes sure that problems have as little downtime as possible. Having access to firmware changes makes instruments more useful and meets the needs for flexibility as test standards change. MXTD offers professional support for remote video calls, free software updates, and a one-year guarantee that can be extended in certain situations. This support system is especially helpful for businesses that work in regulated fields where measurement traceability and tool documents are important for staying in compliance.

Integration With Test System Ecosystems

Because the oscilloscope has a standard input, it can be easily added to current measurement and test automation systems. Companies that are switching from National Instruments platforms like how the new platforms have NI-compatible features at much lower prices. MXTD makes PXIe chassis boards, integrated testing products, and measurement control equipment that work well with oscilloscopes when used in bigger test designs. Their engineering team helps with ODM and OEM design based on specific parameter needs, which works for specialized uses common in aerospace, defense, and chip manufacturing.

These buying and support issues affect more than just the decision to buy something right now. They also have an effect on the overall cost of ownership and operating efficiency over the course of an equipment's multi-year lifecycle.

Practical Applications Across Industrial Testing Scenarios

Understanding real-world use cases shows how technical requirements can be turned into engineering value in a wide range of business settings.

Embedded Systems Development and Debug

Multi-channel oscilloscopes like the DS1054Z Digit Wave Generator 4 Channel are used to fix data buses, power sequencing, and real-time operating system timing by engineers working on Internet of Things (IoT) devices, industrial computers, or car electronics. With four channels, you can watch I2C clock and data lines, as well as break signals and power rails, at the same time. Deep memory records whole boot processes or long communication events, showing timing errors that lead to random system failures. The fast waveform capture rate finds glitches when checking for electromagnetic interference or power transients that put extra stress on embedded systems beyond what they are normally designed to handle.

Power Electronics and Motor Drive Testing

Motor control experts and people who build power supplies need to be able to accurately measure switching waveforms, gate drive signals, and load reactions. The DS1054Z's sensitivity of 1 mV/div picks up on small ripples while keeping the voltage range wide enough for high-side gate drive readings. When you use four channels, you can connect the controller's PWM outputs, gate voltages, drain-source patterns, and the current that flows through inductive loads. This full view speeds up the process of improving the timing of switching, adjusting dead time, and designing snubber circuits, all of which have a direct effect on how well power is converted and how well they work with electromagnetic fields.

Quality Assurance and Production Testing

The oscilloscope's standard interface connection and ability to take measurements automatically are useful for manufacturing test units. Technicians who do incoming inspection, functional verification, or final acceptance testing use saved instrument setups to make sure that measurements are the same from one production run to the next. The ability to record waveforms keeps test proof for quality records without the need for external data acquisition tools. By connecting to MXTD's larger range of test tools, OEM makers and system integrators who need coordinated measurement strategies across complex product lines can get full turnkey test solutions.

These examples of applications show how choosing the right test tools has a direct effect on how quickly and well products are made and how strong an organization is in tough industrial markets.

Conclusion

There are great measuring tools like the DS1054Z Digit Wave Generator 4 Channel that can be used in real-world industrial testing situations for things like electronics development, manufacturing, and quality assurance. With four channels of simultaneous sampling, UltraVision technology that can record 30,000 waveforms per second, large memory storage, and full triggering options, it offers professional performance at a price that makes multi-channel oscilloscopes more accessible. This oscilloscope fits both short-term measurement needs and long-term test infrastructure plans for companies that want reliable test equipment with quick technical help and a variety of buying choices. It's a great choice for test engineers and procurement managers who have to balance technology needs with budget limits because it has been proven to work well and is competitively priced.

FAQ

What maximum bandwidth does this oscilloscope support?

The DS1054Z has an analog bandwidth of 50 MHz, which makes it good for digital electronics, embedded systems, power electronics, and many communication uses with carrier frequencies below 50 MHz. This bandwidth can handle microcontrollers, industrial sensors, and most general-purpose engineering measures that come up in places where electronics are being developed.

Can users perform field calibration on this instrument?

Comprehensive calibration needs special tools, but users can make simple probe compensation changes and offset corrections by following written steps. The accuracy of measurements is kept up by regularly checking the calibration against known norms. When an organization needs an official calibration certificate, it should only use approved calibration services that provide traceability paperwork that meets ISO/IEC 17025 standards, which are popular in regulated industries.

How does digital oscilloscope operation differ from analog instruments?

Analog-to-digital converters are used to sample incoming signals, and waveform data is stored in memory so that it can be shown and analyzed. This design lets you store waveforms, take readings automatically, record large amounts of data, and use complicated triggers that aren't possible with analog instruments. The digital phosphor display acts like an analog persistence display and offers measurement features that make debugging easier for current electronics testing.

Partner With MXTD for Your DS1054Z Digit Wave Generator 4 Channel Needs

Xi'an Mingxi Taida Information Technology Co., Ltd. offers help for all of your test infrastructure purchases throughout their entire lifecycle. They are experts in measuring equipment and care about their customers. As a well-known DS1054Z Digit Wave Generator 4 Channel provider with more than 12 years of experience in precision instruments, we offer both standard goods and solutions that are made to fit the needs of each application. Our engineering team answers technical questions within an hour and can give you expert advice on choosing the right instruments, the best ways to integrate them, and how to set up your testing setup so that it works best. Get in touch with manager03@mxtdinfo.com to talk about volume pricing for deployments of multiple units, look into customization options for unique applications, or ask for technical specs that show how performance matches your measurement needs. We offer safe shipping with packaging that is specially made to protect precision instruments from water and shock, so your equipment will come ready to be used right away.
