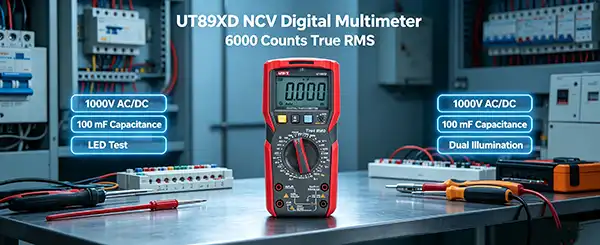

UT89XD NCV Digital Multimeter for Professional Troubleshooting

The UT89XD NCV Digital Multimeter is a reliable tool for test and measurement engineers who need to find problems in difficult situations because it combines accuracy and safety in electrical testing. This high-quality UNI-T UT89X series instrument is made for industrial automation, electronics testing, and research. It has accurate true RMS measurements, non-contact voltage detection, and a strong build. Knowing what makes this multimeter different from other tools helps procurement managers make smart choices that match the need for efficiency with the facts of the budget.

Understanding the UT89XD NCV Digital Multimeter: Features and Specifications

For professional troubleshooting, you need tools that work accurately in a wide range of electrical conditions. The UT89XD NCV Digital Multimeter meets this need by combining cutting-edge measurement technology with useful safety features that lower the risks of operation.

Core Measurement Capabilities

The gadget has a 6000-digit screen and true RMS measurement technology, which lets it get accurate readings of waveforms that aren't sinusoidal, which are popular in modern power systems. This true RMS digital multimeter uses a dual-slope ADC converter with automatic zeroing calibration, which works better than average-reading multimeters for complex signals from inverters, LED drivers, and switching power supplies. This way of doing engineering makes sure that measurements are correct even when testing pulse-width modulation or variable frequency drives.

It can measure both DC and AC voltages up to 1000V, and it can measure both AC and DC currents up to 20A. High-impedance circuit analysis is possible because resistance testing goes up to 60MΩ. The capacitance measurement range goes up to 100 mF (100,000 μF), which makes it possible to assess motor start capacitors and large filter banks that are common in industrial equipment. The frequency range is from 10Hz to 10MHz, which is wide enough for most power and data analysis jobs.

Safety-Oriented Design Elements

The two-colour unibody injection moulding design makes the structure stronger, and the 1-metre drop protection specification takes into account how things work in the real world. Two fuses protect both the instrument and the person using it. A 20A/500V slow-blow fuse keeps the current input ports safe, and PTC self-resetting safety keeps the voltage measurement circuits safe. This design, with its multiple layers of protection, meets the safety standards required in aircraft, defence, and semiconductor testing settings.

The built-in non-contact voltage detection function can tell the difference between live and dead conductors without touching them. This lowers the risk of arc flashes during the initial circuit assessment. The dual-range NCV feature makes it easy to find live and neutral wires and quickly identify conductors that are live. This feature speeds up preliminary diagnostics and increases operator safety during equipment commissioning.

Operational Convenience Features

Working in equipment cabinets, control panels, and machinery enclosures with low light can be difficult to see. The UT89XD NCV Digital Multimeter's dual illumination systems make it easier to see. The automatic LCD backlight turns on when the lighting conditions call for higher display contrast, and the built-in rear torch lights up specific work areas without the need for extra lighting. These features are especially helpful for maintenance work that needs to be done in poorly lit factories or on outdoor installation sites.

The special LED measurement function provides a perfectly calibrated 12V/5mA output for testing LED parts. This is an important feature that you don't usually find in similar test equipment. This feature helps with quality control in the electronics industry and checking LED-based indicator systems in the field. Among its other features are hFE transistor testing for checking current amplification factors and a capacitor charging indicator that shows the charge level while the component is being evaluated.

Stability at high temperatures is another important feature for business uses. The device has very low thermal drift (±0.3%) even after long periods of use, while cheaper alternatives may have drift higher than 1.2% after 20 minutes of constant use. This feature of stability makes sure that measurements are always the same, even during long sessions of fixing or when taking baseline measures for preventive maintenance programmes.

Comparing UT89XD NCV Digital Multimeter with Market Alternatives

When making a purchase choice, it's particularly useful to have objective comparisons that show how different options meet the needs of a particular application and the budget.

Internal UNI-T Product Positioning

In terms of UNI-T products, the UT89XD NCV Digital Multimeter is in the middle to high-end of the UT89X series. The UT89XD NCV Digital Multimeter is better than the UT61E model because it has better NCV functions and the unique ability to test LEDs. This improves it for electronics testing labs and field service situations where component-level checks are often done. The UT33D is a less advanced option because it doesn't have true RMS measurement or advanced safety features. The lower price makes it better for general-use situations rather than professional troubleshooting settings.

Because of its accurate measurements and sampling design, this professional digital multimeter gives you the stability you need for compliance reporting and keeping records in quality management systems. This reliability is especially useful for system integrators who work on complicated setups and need to set baseline measures or check that system performance matches requirements.

Competitive Landscape Analysis

When compared to well-known brands like Fluke and Klein, the UT89XD NCV Digital Multimeter offers similar measurement features at a much lower cost. Fluke instruments are expensive because of their well-known brand and large service networks. The UT89XD NCV Digital Multimeter, on the other hand, is a good value for procurement managers who are on a budget but still need professional-grade performance without spending a lot of money.

The UT89XD NCV Digital Multimeter's NCV sensitivity and response speed are the same as or better than those of other instruments in the same price range. This is especially true in the sub-$50 market, where it is a particularly strong deal. This price-performance positioning makes buying in bulk affordable for businesses that need to equip many technicians or set up standard tool inventories across multiple locations.

Here are key competitive advantages that differentiate this measurement tool:

• True RMS accuracy ensures accurate readings even when averaging meters distort the waves, which happens frequently. This is especially important when fixing modern electronic power converters and motor drives.
• Robust mechanical design with an injection-moulded housing and drop protection can handle the rough conditions of field service better than those with a weaker construction.
• Comprehensive voltage range up to 1000V accommodates industrial power systems, medium-voltage control circuits, and high-voltage test applications within a single instrument.

These features mean that equipment will be down less often because problems will be found faster and measurements will be wrong less often, so they won't need to be tested again. When collecting data for technical documentation or design validation methods, R&D labs like to know how consistent the measurements are.

Buying Guide: How to Procure the UT89XD NCV Digital Multimeter for Your Business

To do strategic procurement, you need to know not only the product specs but also how to obtain it, support it, and find partnerships that protect your long-term operational interests.

Authorised Distribution Channels

Xi'an Mingxi Taida Information Technology Co., Ltd. (MXTD) is a licensed seller who has been in the measurement and control systems business for over 12 years. When you buy from well-known distributors, you can be sure the product is real, the warranty covers it, and you get technical support not available from generic marketplace vendors. MXTD keeps standard setups in stock, so it can fill orders quickly. They also offer customisation options for businesses that require special designs or private labelling.

The company's wide range of products goes beyond multimeters and includes PXIe chassis, boards, precision connectors, and integrated testing systems. This allows for consolidated procurement, which makes managing vendors easier and could lead to better pricing through volume relationships. This wide range of products helps system integrators and R&D centres build full test solutions instead of putting together parts from different suppliers.

Investment Considerations and Support Infrastructure

This instrument is currently positioned in the market as a professional-grade item, and its price range makes it economically feasible for technical teams to all use the same one. When a business buys a lot of units, it can get better prices and maybe even have them customised in ways such as private labelling and custom packages that fit their company's brand or their inventory management system.

The warranty protects against manufacturing defects for one year, and during that time, the supplier offers free software upgrades and remote video technical support. Total cost of ownership is lower with this support system because it cuts down on downtime and makes technical tools easy to find when questions come up during implementation. The supplier promises to answer customer questions within an hour, which meets the rapid technical response needs that are typical of good business-to-business relationships.

OEM and Distributor Partnership Opportunities

Companies that need more than what's available in standard products can use MXTD's ODM/OEM services to create custom solutions that meet their exact needs. This adaptability helps companies set themselves apart when they sell test equipment under their own brands or when they make measurement solutions that are specific to a niche market's needs.

As part of bulk order plans, packing that is resistant to moisture, shock, and static electricity is provided so that precision instruments can be shipped by land or air freight. This attention to transportation details saves the investment in instruments while they're being shipped and makes sure that the devices arrive calibrated and ready to be used. Electronics distributors that are moving into test equipment find this supplier's ability to set up new product lines without having to spend a lot of money on infrastructure to be useful.

When companies can compare their products to NI products while keeping prices low, it gives them the chance to move away from expensive suppliers or adopt cheaper alternatives without sacrificing performance standards. The stability of the product and compatibility with current test systems make it easier to integrate into existing processes. This increases ROI by lowering the cost of tools.

Practical Applications and Troubleshooting Tips for Professional Use

Finding out how well this multimeter works in real-life work situations helps you decide if its features meet your unique operating needs.

Industrial Maintenance Applications

Industrial facilities depend on predictive maintenance programmes that find electrical problems before they break down equipment. The NCV function lets repair workers quickly look over electrical panels and motor control centers to find circuits that are live without having to take off the panel cover or expose the conductors. This non-invasive initial assessment accelerates the process of finding the fault while lowering the risk of an arc flash during the preliminary investigation.

When trying to figure out what's wrong with motor control circuits, being able to measure true RMS becomes critical. Average-reading meters get the waveforms from variable frequency drives 10-15% wrong, which can lead to wrong diagnoses of systems that are working properly or failures to find real voltage source problems. When these conditions are met, techs can tell the difference between problems with the drive's setting, the motor windings, and problems with the power quality upstream.

Electronics Testing and Component Verification

Quality control departments in electronics factories use this digital multimeter to check incoming parts and test the production line. The LED measurement function checks the specs of LED parts without the need for separate test fixtures. This makes the quality assurance process easier. Capacitance measurements up to 100 mF can be used to check the accuracy of bulk filter capacitors in power supply units and motor run capacitors in HVAC equipment.

When research institutions do electrical characterisation, they like the low thermal drift standard because it helps them get baseline data or test the performance of prototype circuits. Using the same measurements over long test sessions cuts down on data variability that could hide real performance trends or make it take a lot of statistical work to find results that mean something.

Field Service Optimisation

Field service technicians who work at multiple customer sites can use the tough construction and lighting features to their advantage. The automatic backlight and built-in torch mean that you don't need to use extra lighting when fixing control panels in equipment rooms that aren't well lit or on outdoor sites that are dark. The 1-metre drop safety protects against accidental hits while being moved between service calls or while working in equipment shelters that aren't very roomy.

Battery upkeep has a direct effect on being ready for the game. The device works with standard battery types that are easy to find in stores, and the power management circuitry makes sure that it has enough runtime for most service calls. Checking the calibration on a regular basis against known reference standards keeps the measurement traceability needed for paperwork in regulated industries or warranty service situations.

Why Choose the UT89XD NCV Digital Multimeter? A Rational Procurement Choice?

When making procurement decisions, companies weigh short-term functional needs against long-term strategic factors like supplier relationships, access to technical support, and the total cost of ownership.

Technical Performance Advantages

By measuring true RMS, covering a wide voltage range, and detecting NCV accurately, this diagnostic tool can be used for a variety of tasks. Unlike specialised instruments that are best for a small range of tasks, this voltmeter can do a lot of different things. This means that techs don't have to carry as many instruments, and companies don't have to keep as many on hand.

The specifications for measurement accuracy meet the needs for records in quality systems and reports on compliance. System architects who are making test plans like having measurement tools that they can rely on to give the same results every time, no matter who is using them or when. This consistency helps statistical process control efforts and lowers measurement system error that could hide how well a process is actually working.

Supplier Partnership Value

MXTD has been in the measurement and control industry for a long time, so you can be sure that their products will always be available and that they will provide you with technical support. Because the company knows a lot about PXIe systems, precision connectors, and custom testing equipment, it can come up with complete solutions for customers whose needs go beyond basic instrumentation.

The supplier follows international standards and has quality control methods that make sure given goods meet requirements. This documentation trail and supplier accountability are helpful for companies that use ISO quality systems or work with industries that are regulated. The promise of quick responses is in line with practical needs, since delays in getting tools can affect the schedules of projects or activities that bring in money.

Long-Term Strategic Benefits

Instead of rationing expensive instruments, companies can fully equip their technical teams by standardising on reliable, low-cost test equipment. Making more tools available cuts down on scheduling problems and makes sure that technicians have the right tools when they're needed out of the blue.

It works with measuring tools that work with it, which helps with system integration projects where many devices work together to make automated test routines or data logging programs. Companies that make custom test solutions like working with providers that understand the needs of the whole system, instead of just selling individual products.

Conclusion

The UT89XD NCV Digital Multimeter has professional-level measuring capabilities, safety features, and a strong build that makes it ideal for use in research, industrial automation, and electronics testing. It meets the most important needs of maintenance workers, test engineers, and quality control experts with its true RMS capability, wide measurement ranges, and non-contact voltage detection. Technical performance and low prices make the value proposition a good deal for teams that want to get everything they need. Companies that need reliable measurement solutions and quick service should work with MXTD as a supplier because it can customise products, offer technical support, and have a wide range of products.

FAQ

What accuracy level does this professional multimeter provide?

With true RMS measurement technology, the instrument has a display resolution of 6000 counts. During extended operation, thermal drift stays below ±0.3%, which makes sure that results stay the same during long fixing sessions. This level of accuracy meets the needs for accurate documentation and diagnostics in professional settings.

Can the UT89XD replace analogue meters in professional settings?

A digital multimeter is better than an analogue one because it can measure more accurately, automatically range, and has safety features. With the NCV function, true RMS capability, and digital display, you can get rid of the parallax mistakes and interpolation doubts that come with analogue meters. In most industrial and electronics testing situations, it can be used instead of or in addition to analogue devices.

How does non-contact voltage detection improve workplace safety?

The NCV feature finds live wires without touching them, which lowers the risk of arc flashes during the initial circuit review. Technicians can check that the circuit is off, find live conductors behind walls or panels, and tell the difference between live and neutral lines without touching the conductors directly. This feature is in line with electrical safety rules that stress finding hazards before they come into direct contact.

Partner with MXTD for Your Measurement Equipment Needs

MXTD has been in the technical business for more than 12 years and has a wide range of products, such as the UT89XD NCV Digital Multimeter, PXIe testing systems, precision connectors, and custom measurement solutions. As a UT89XD NCV Digital Multimeter supplier with a lot of experience, we offer quick technical support, answers to questions within an hour, and a variety of ways to buy, such as volume discounts and ODM/OEM customisation. Our quality control processes make sure that the products we deliver meet strict professional standards and are still cost-effective, which increases the procurement ROI. Email our team at manager03@mxtdinfo.com to talk about the measurement equipment you need, the benefits of ordering in bulk, or to get technical specifications for integrating our products into your testing infrastructure. You can look at our full line of instruments at https://www.mxtdtest.com/ and learn how strategic partnerships with suppliers improve operational capabilities.
