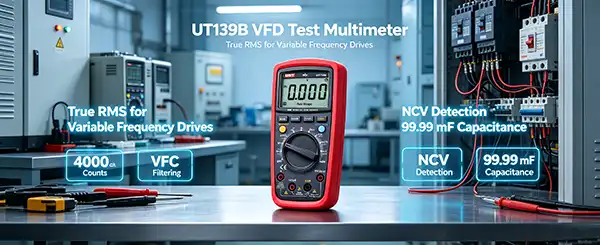

UT139B True RMS VFD Test Multimeter Technical Buying Guide

When looking for the right measuring tool for a variable frequency drive environment, you need to think carefully about its accuracy, dependability, and functionality. UNI-T's UT139B True RMS VFD Test Multimeter is the middle-of-the-road True RMS digital multimeter in the UT139 line. It was designed for electrical engineers, electronics engineers, and repair workers who work in complex measurement environments with harmonic interference. This handheld device strikes a good balance between performance and price, which makes it ideal for professionals working with power-frequency voltage or variable-frequency voltage. Its auto-ranging features and VFC frequency conversion measurement technology keep readings stable even in areas with high-frequency interference signals. When looking at different multimeters for VFD diagnostics, it's important to know the technical benefits and real-world uses so that you can make smart buying decisions that meet operational needs and stay within your budget.

Understanding UT139B True RMS VFD Test Multimeter – Features & Capabilities

If you want to do reliable VFD testing, you need to know what makes True RMS measurement different from other averaging methods. Modern factories make waveforms that are more and more complicated, and regular multimeters can't accurately measure them.

Why Does True RMS Measurement Matter for VFD Applications?

This UT139B True RMS VFD Test Multimeter's main technical advantage is its ability to measure in true RMS. True RMS correctly measures the real value of signals that aren't sinusoidal, while ordinary average response multimeters assume sinusoidal patterns. This difference is crucial in modern electrical settings where LED dimmers, frequency converters, and uninterruptible power supplies make waveforms that are very badly distorted. Variable frequency drives alter the basic characteristics of the signal, resulting in overtones that cause regular meters to lose their focus. When you need to figure out what's wrong with motor control systems or check the quality of power in an automation setting, you can trust the measurements that the UT139B True RMS VFD Test Multimeter gives you.

VFC Technology: Filtering Out High-Frequency Interference

The VFC (Variable Frequency Converter) measurement method is what makes the UT139 line so unique. This low-pass filter successfully blocks high-frequency signals from interfering with measurement results. This lets the multimeter measure the drive voltage and current of motors stably driven by variable frequency drives. When an industrial facility uses more than one VFD, electromagnetic interference can happen, which makes measurements less accurate. The VFC mode directly solves this problem and gives accurate readings even when testing equipment is near electrical noise. This feature increases the accuracy of measurements in places where VFD technology is common, like on factory floors, in HVAC systems, and in process control.

Non-Contact Voltage Detection for Enhanced Safety

Built-in NCV (Non-Contact Voltage) sensing technology lets technicians find AC voltage by measuring the strength of electromagnetic fields without touching anything charged. When the instrument gets close to live wires, it makes different-frequency beeping sounds and shows the sensing intensity level on the screen. This feature makes the workplace safer by letting you check the voltage first before taking direct contact measurements. When troubleshooting distribution panels or ensuring that they follow lockout-tagout procedures before starting service work, maintenance technicians like this feature.

Comprehensive Capacitance Measurement Range

The tool can measure capacitance up to 99.99mF (99990μF), which is the whole range from nF to mF. This wide range lets you test different kinds of capacitors, like motor-starting capacitors, filter capacitors, and inverter capacitors that are popular in industrial equipment. Capacitors in this measurement range are used in motor control circuits, power factor correction systems, and filtering tasks. Having a single instrument that can do all of these things makes the technician's toolbox smaller and accelerates the diagnostic process.

In addition to these main features, the multimeter has functions for data hold, relative measurement, maximum/minimum value measurement, undervoltage warning, backlighting, and automatic shutdown. These operational conveniences help fieldwork go smoothly in places where time and environmental conditions demand instruments that work flawlessly. The 4000-count display has enough precision for most industry uses without being as complicated or expensive as higher-count meters.

Comparing UT139B with Other VFD Test Multimeters – Making the Right Choice

Knowing where this multimeter stands in comparison to other similar products on the market helps purchasing managers decide if it meets their specific operational needs and budget constraints.

Performance Improvements Over UT139A

The UT139B True RMS VFD Test Multimeter is a big improvement over its predecessor, the UT139A. The numbers on the display went from 2000 to 4000, which provides you with a higher measurement resolution that matters when accuracy is important. The accuracy of the AC voltage went up from ±(1.0%+3) to ±(0.8%+3), and the accuracy of the resistance went up from ±(1.0%+2) to ±(0.8%+2). The frequency response range was from 400Hz to 1kHz, which made the device better for uses with higher frequencies. It also has functions for measuring frequency and duty cycle, which were diagnostic features that the UT139A didn't have. When put together, these improvements make the UT139B True RMS VFD Test Multimeter a better tool for difficult measurement tasks.

Strategic Positioning Against UT139C

When you look at the UT139B True RMS VFD Test Multimeter next to the more advanced UT139C, you can see that the designers made choices that make the best use of cost and efficiency. The UT139B True RMS VFD Test Multimeter has a smaller resistance range (40 MΩ vs. 60 MΩ) and smaller display numbers (4000 vs. 6000). In contrast to the UT139C, the UT139B True RMS VFD Test Multimeter can't measure temperature. Despite these problems, these limits are not significant for many applications and result in considerable cost savings. The UT139B True RMS VFD Test Multimeter is the best choice for procurement managers who want to get the most for their money without giving up important VFD measurement features.

Real-World Performance Validation

When it comes to diagnosing variable frequency drive systems, HVAC professionals and industrial maintenance teams are always happy with how accurate and reliable the multimeter is. When you combine True RMS measurement with VFC filtering, you get stable numbers that are on par with those from more expensive tools in the real world. The meter's durability is good enough for most industrial settings; it can handle the vibrations, changes in temperature, and handling that come with daily maintenance work. Total cost of ownership analysis indicates that the UT139B True RMS VFD Test Multimeter is a good buy compared to higher-end brands because of its low price, high accuracy, and long predicted service life. It also has all the core functions needed for VFD troubleshooting.

Procurement Guide – Where and How to Buy UT139B Multimeter

To get through the buying process, you need to know about the authorised channels of distribution, pricing structures, and support promises that will protect your investment.

Identifying Reliable Suppliers

Working with official UNI-T distributors makes sure you get real products that come with manufacturer warranties and support promises. Xi'an Mingxi Taida Information Technology Co., Ltd. has been in business for more than 12 years and offers cutting-edge solutions for measurement and control. We promise that every item we sell meets the greatest standards for professional use by using advanced robotics and strict quality control. Our company has been around since September 12, 2014, and has a lot of experience with researching and developing, designing, and making PXIe chassis boards and cards, connectors, integrated testing products, and instruments.

Volume Discounts and Pricing Structures

Volume pricing lowers the cost per unit and makes sure that all teams using the instrument have the same level of performance, which is helpful for system designers and R&D centers that need many units. When people ask about bulk orders, they are answered quickly, and if standard setups don't fully meet the needs of an application, customisation choices are available. Our professional research and development (R&D) and customer service (after-sales) teams quickly respond to customers' needs by providing high-quality standard and customised products that meet their exact requirements.

Warranty Coverage and Return Policies

Standard warranty coverage lasts one year from the date of purchase and covers manufacturing defects and performance issues. Knowing the warranty terms before you buy makes it clear when repair or replacement is possible and when you need to pay for service. We offer free software updates, online video technology support, and a full guarantee. In some cases, we can offer special deals based on the application needs and order volume.

Logistics and Delivery Considerations

We can ship precision tools by both land and air, and our moisture-proof, shock-proof, and anti-static safety features ensure safe delivery. Industrial clients around the world get delivery schedules that work best for their project schedules and operational needs. If you have questions about large orders, special setups, or faster shipping choices that work with your schedule, please email our procurement team at manager03@mxtdinfo.com.

UNI-T Brand and Support – Ensuring Reliability and Long-Term Use

A brand's reputation and its promise to provide ongoing support have a big effect on the total value that measurement instruments provide over the course of their useful life.

Certifications and Quality Standards

UNI-T maintains industry certifications that demonstrate its commitment to high standards of quality production and performance. Procurement managers can be sure that instruments meet the rules for professional measurement uses when they have these certifications. The UT139 series targets professionals who need high-quality measuring tools. It provides users with safe, highly reliable, and auto-ranging handheld measuring experiences that can handle tough industrial conditions.

Access to Technical Resources

Authorised distributors are still the only way to get official product manuals, firmware updates when they're needed, and compatible accessories. These resources help keep the device optimised and ensure that users can keep the instrument working at its best for as long as it is being used. Technicians can be more productive and safe when taking measurements in difficult settings with the help of educational tools like official lessons.

Customer Service and Technical Support

Professional technical support channels answer questions about applications, help with fixing problems, and give advice on how to make things work better. Product registration methods make it easier for people to use their warranties and make sure that users know about updates and service notes. We answer customer questions within an hour and give medium- to large-sized businesses, system integrators, and R&D centers the quick technical support and after-sales service they need. This promise of quick service solves the main problems that test and measurement engineers and technical directors have, since they can't afford to be offline for long periods of time while they wait for help.

Troubleshooting & Practical Applications – Maximizing UT139B's Efficiency

Knowing about common problems and tried-and-true answers helps operating teams get the most out of their measuring tools.

Addressing Common Measurement Issues

When testing VFD outputs, choosing the wrong mode often causes inconsistent readings. By filtering out high-frequency switching noise that can throw off normal measurement circuits, VFC mode stabilises readings. If capacitance readings yield you results that you didn't expect, make sure the test lead connections are still tight and that the capacitor being tested was fully drained before the measurement. Low battery voltage can cause the display to become unstable; the built-in undervoltage warning lets users know before the power runs out, and the accuracy is lost.

Practical Case Study: Motor Drive Diagnostics

A factory experiencing occasional motor control issues used the UT139B True RMS VFD Test Multimeter to diagnose problems with their VFD system. Technicians checked that the voltage level and frequency of the drive output voltage were in line with the set values by measuring them with VFC mode on. By measuring the capacitance of power factor correction capacitors, the technicians found that one unit had degraded to 60% of its nameplate rating. This caused harmonic distortion that affected equipment nearby. Replacing the failing capacitor fixed the control problems and showed how accurate measurements lead to good maintenance decisions.

Routine Care and Maintenance Recommendations

To keep measurements accurate, they need to be checked against known standards on a regular basis. Make sure the test lines are clean and look for damage that could cause resistance mistakes. Keep the instrument in cases that will protect it from being dropped or contaminated by the environment. To avoid damage from leaks, replace batteries before they are completely dead. Every year, the calibration is checked against standards that can be tracked. This makes sure that the accuracy stays high for uses where measurement accuracy is critical.

Integration into Maintenance Workflows

When HVAC technicians do routine service calls, they bring the device with them and use NCV detection to make sure everything is safe before measuring the currents and values of the capacitors and compressors. When the right mode is chosen, the meter can measure both normal power distribution and VFD-controlled equipment, which is particularly useful for electrical repair tasks. Production line troubleshooting methods use frequency and duty cycle readings to figure out what's wrong with control signals that are affecting automated processes.

Conclusion

The UT139B True RMS VFD Test Multimeter is a cheap device that can measure True RMS, VFC, NCV, and capacitance. It can also filter VFC signals and find NCVs. It is well-suited for professional VFD troubleshooting and general electrical tests. Its place in the UT139 series gives it important advantages over entry-level models while avoiding the features and costs of high-end instruments that aren't needed for most applications. This multimeter strikes a good mix between performance requirements and cost-effectiveness, making it a good choice for purchasing managers looking for reliable measuring tools for factory automation, electronics testing, and maintenance tasks. Partners like MXTD provide quick technical help and well-established distribution methods that guarantee a smooth deployment and long-term operating value.

FAQ

What accuracy specifications does the UT139B provide for VFD measurements?

The UT139B True RMS VFD Test Multimeter can measure AC voltage with an accuracy of ±(0.8%+3) and resistance with an accuracy of ±(0.8%+2). Its 4000-count display is good enough for most industrial VFD diagnostic tasks. True RMS measurement makes sure that the reading is correct even when the waveform is distorted, which is something that regular meters can't do.

How does VFC mode improve measurement reliability?

In VFC mode, low-pass filtering cuts down on high-frequency interference from VFD switching circuits. This makes voltage and current readings stable in places with a lot of electrical noise, where normal measurement modes give random results.

What support options accompany the purchase?

Authorised distributors offer a guarantee that lasts for one year, expert help with quick response times, the ability to provide remote video guidance, and free software updates. When a customer contacts MXTD, they answer within an hour and quickly deal with technical questions and requests for application guidance.

Partner with MXTD for Your True RMS Multimeter Requirements

MXTD is a well-known company that sells accurate measuring tools, and the UT139B True RMS VFD Test Multimeter is available at a reasonable price to system integrators, R&D centres, and industry repair operations all over the United States. With 12 years of experience in the field, you can be sure that you will get real instruments backed by full support. We keep items in stock so they can be shipped right away, and we also offer customisation options for when standard configurations need to be changed for specific uses. Our expert team helps you find the best measurement methods for VFD diagnostics and general electrical testing by giving you application advice. You can email us at manager03@mxtdinfo.com to talk about pricing for large orders, delivery times, and technical details. We ship your precision tools by land and air, and they arrive safely because we protect them against wetness, shock, and static electricity.
