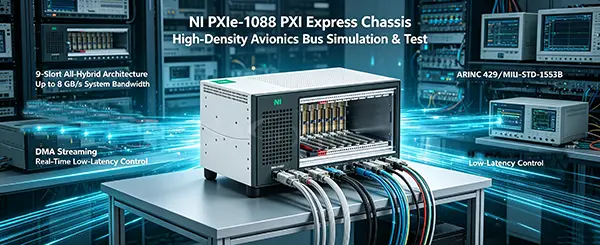

NI PXIe-1088- High Speed Low Latency Testing Systems

When constructing high-density avionics bus emulations, semiconductor validation benches, and large-scale real-time Hardware-in-the-Loop (HIL) simulation setups, efficiently streaming massive data volumes across high-channel counts while minimizing processing latencies defines the absolute boundaries of system capability. The NI PXIe-1088 is a high-performance 9-slot PXI Express chassis provisioning a total system throughput up to 8 GB/s. How to optimize data throughput and minimize loop execution latencies based on this chassis. The discussion unfolds across key engineering dimensions—including PCIe link partitioning, Direct Memory Access (DMA) multi-channel architectures, real-time host CPU core isolation, and double-buffered streaming mechanics—serving as an authoritative deployment reference for constructing ultra-fast, low-latency deterministic testing platforms.

​​​​​​​

Securing Deterministic Signal Integration & High-Fidelity Edge Metrology: The MXTD Engineering Standard

De-risk your mission-critical instrumentation deployment timelines by coordinating with our global technical applications bureau at manager03@mxtdinfo.com / manager02@mxtdinfo.com to acquire accredited telemetrical blueprints, tailored OEM hardware synthesis schemes, or comprehensive physical-layer data-integrity audits.

Throughput and Latency Bottlenecks in High-Speed, High-Density Testing

Modern high-tier integrated testing infrastructure is governed by unprecedented dual-engineering challenges: on one hand, Data Throughput scales exponentially. With high-speed digitizers or digital I/O modules operating simultaneously across hundreds of channels at dozens of MS/s, the underlying system bus must transfer multiple gigabytes (GB) of raw binary streams every second. On the other hand, Loop Latency mandates absolute, tight compression. Inside complex closed-loop controls or real-time simulation topologies (such as radar target rendering or smart grid HIL execution), the complete cycle spanning from input board digitization to host CPU solver computation, and finally to output pin physical voltage updates, must be strictly locked under a few dozen microseconds (µs).

If bus transmission routing efficiency flags, or if the host operating system suffers from non-deterministic thread blocking, data streams will stack into severe congestion corridors along the transmission path, driving FIFO buffer overflows, packet loss, or fatal closed-loop control divergence. The point-to-point, high-speed PCI Express Gen 2 backplane architecture of the NI PXIe-1088 9 Slot PXI Chassis establishes an outstanding hardware matrix to dismantle these propagation barriers. However, extracting its ultimate potential requires deep optimizations at both the software deployment and kernel layers.

Throughput and Latency Optimization Mechanics Based on the NI PXIe-1088

[PXIe Peripheral Slots 2-9] ─── (Hardware DMA Channel) ──┐ │ ┌───────────────────────────────────────────────────────────────────────────┘ ▼ [NI PXIe-1088 Dedicated Backplane Bus: 2 GB/s per slot] │ ▼ (PCIe Gen 2 x4 Link Configuration: Total 8 GB/s) [1 PXIe Slot 1 Embedded Controller] ├──> [Physical RAM: Double-Buffered FIFO Matrices] └──> [Isolated CPU Core (RTOS Linux Real-Time Execution)]

Unlocking PCIe Link Potential: 2 GB/s Dedicated Slot Bandwidth

The backplane of the NI PXIe-1088 9 Slot PXI Chassis deploys advanced point-to-point PCIe switch topology partitioning. Peripheral expansion positions spanning Slots 2 through 9 are each provisioned with a dedicated PCIe Gen 2 x4 link, yielding up to 2 GB/s of independent bandwidth per slot. When defining hardware profiles, legacy shared-bus PXI modules should be fully avoided in favor of high-bandwidth, native PXI Express elements. Because data channels across different slots run physically parallel at the hardware layer, the backplane securely transfers massive consolidated binary telemetry up to 8 GB/s.

Hardware-Level Direct Memory Access (DMA) Multi-Channel Architecture

In ultra-high-speed streaming trials, if every single data frame transition commands an explicit host CPU interrupt sequence, the processing overhead aggregates violently, introducing severe latencies. The core engine for maximizing throughput metrics involves activating Scatter-Gather Direct Memory Access (DMA). This mechanism empowers the local controller on the PXIe module to seize command of the host PC's physical RAM partitions across the backplane without invoking CPU interaction. The underlying NI-DAQmx driver instantiates a high-speed hardware FIFO matrix. Collected metrics blast straight into memory-layer double-buffered matrices in discrete blocks, leaving the CPU to pull datasets smoothly from the tail of the circular queue, locking interrupt execution times into nanosecond envelopes.

Dedicated CPU Core Isolation on Real-Time Host Operating Systems

Loop execution latencies across advanced validation testbeds are primarily driven by software thread scheduling Jitter. Running under a standard desktop Windows environment exposes the data logging threads to unpredictable preemption by complex background tasks (such as antivirus scans or UI thread refreshes), inducing microsecond-to-millisecond latency spikes. To secure extreme low-latency processing boundaries, the host controller should be flashed with the NI Linux Real-Time OS. Within the software architecture, apply "CPU Core Isolation" techniques, assigning Core 0 to parse low-level OS utilities and network routing, while rigidly locking Core 1 or Core 2 entirely to the high-speed data acquisition and control solvers. This ensures the real-time executable runs in a lock-free, closed-loop state, clamping the deterministic system jitter under 1 microsecond.

High-Speed System Deployment and Optimization Parameters

When compiling advanced high-throughput, low-latency code targets referenced to the NI PXIe-1088 9 Slot PXI Chassis, the following low-level engineering parameters must be implemented:

Buffer Block Size Balanced Tuning: When executing the DAQmx Read call, the "Samples per Channel" parameter assigned per iteration directly skews system properties. If this value is too broad (e.g., 100k), overall continuous data throughput is maximized, but severe packet consolidation latency is introduced. Conversely, if configured too lean (e.g., 1 sample, representing On-Demand mode), transit latency approaches microsecond limits, but the incessant I/O software overhead triggers a precipitous drop in bulk data throughput. For real-time low-latency control matrices, balance the block metrics between 10 and 100 samples; for raw massive data streaming workflows, assign boundaries from 1 kS to 10 kS.

Asynchronous Thread Decoupling via Producer/Consumer Paradigms: Never merge time-heavy hard-drive disk storage procedures (such as writing straight to a TDMS file) or graphical UI thread rendering into the high-speed hardware polling loop. Deploy a multi-threaded Producer-Consumer architecture: the Producer thread runs at top priority, tasked exclusively with extracting data from PXIe hardware registers via DMA and piping it into a lock-free RAM RT FIFO queue. The Consumer thread executes on a parallel core at a lower priority, lifting datasets from the queue to process non-linear, heavy disk storage algorithms.

Pinned Huge-Page Memory Allocation: During host controller initialization sequences, tune underlying kernel properties to anchor and assign locked "Huge Physical Memory Pages" dedicated to the NI-DAQmx drivers. This prevents the OS from transferring critical DAQ cache into virtual disk partitions (Swap Space), eliminating unexpected transmission latencies triggered by virtual memory scheduling.

Optimizing system data throughput parameters and closed-loop latencies referenced to the NI PXIe-1088 chassis defines a system-integration art bridging backplane physical routing layers, driver-level DMA memory handshaking matrices, and kernel-level core isolation within a real-time OS. By leveraging the robust 8 GB/s streaming throughput engineered into its point-to-point Gen 2 PCIe backplane, seamlessly combining it with Scatter-Gather DMA circular ring buffering mechanisms, and anchoring the mission-critical loop threads within isolated CPU cores inside NI Linux Real-Time, engineering teams can securely push data throughput to physical hardware boundaries while clamping deterministic closed-loop latency inside tight, microsecond-scale corridors. This establishes an ultra-fast, rock-solid data nucleus for state-of-the-art high-tier testing infrastructure.

Core Mandate & Specialized Instrumentation Scope

In sub-orbital aerospace diagnostics, continuous destructive material fatigue tests, and experimental quantum topologies, trace signal uncertainty introduces catastrophic failure modes into complex systems. For more than 12 years, Xi'an Mingxi Taida Information Technology Co., Ltd. (MXTD) has functioned as an elite integration ally, developing ultra-stable data acquisition (DAQ) architectures and hardened embedded edge-intelligence execution environments. Operating as a vertically integrated technology pioneer, we excel at isolating, capturing, and digitizing volatile, phase-critical physical dynamics—from hyper-g mechanical shock vectors to sub-microstrain crystalline micro-shifts—and converting them into uncompromised, real-time digital intelligence.

Founded on the rigid principles of absolute galvanic channel isolation and advanced thermodynamic mechanics, MXTD has evolved from a boutique transducer design lab into a globally recognized expert in scientific instrumentation. Our comprehensive corporate structure unifies proprietary micro-electronics R&D, certified high-yield precision manufacturing plants, and a frictionless international distribution network. Across more than a decade of continuous technological iteration, our cross-functional engineering cohorts have systematically broken through traditional bottlenecks in multi-channel bandwidth, environmental noise floors, and baseline thermal drift—seamlessly linking harsh physical realities with advanced enterprise analytical software.

Surviving the extreme volatility of modern electronic component corridors demands a responsive partner backed by comprehensive, component-level history tracking. MXTD maintains a highly adaptive, multi-continent logistical network spanning North America, the EMEA trade zones, and the Asia-Pacific trade corridor. By directly synchronizing our custom OEM/ODM production lines with verified, authorized allocation pipelines for world-leading test-and-measurement equipment brands, we completely decouple your programs from supply chain choke points. Whether your project demands ready-to-rack modular DAQ enclosures or specialized custom-form-factor bare-board sensor nodes, MXTD guarantees immediate engineering turnaround and absolute schedule reliability.

✅ Defect-Free Metrology & Product Assurance Regimes

When deploying validation hardware onto high-risk, uncrewed, or remote test cells, signal degradation or sensor zero-point wandering is an unacceptable liability. At MXTD, mechanical ruggedness and structural longevity are hard-coded into every layer of our physical hardware:

📌 Tier-1 Semiconductor Audit Trails: Comprehensive chain-of-custody logging for all active integrated circuits to eliminate gray-market component hazards.

🔎 Volumetric Joint Micro-Inspection: In-line 3D Automated Optical Inspection (AOI) paired with high-penetration X-ray profiling to guarantee structural interconnect and wire-bond cross-sectional longevity.

⚠️ Harsh Environmental Stress Screening (ESS): Continuous, extreme cyclic thermal shocking (-40°C to +85°C), intensive humidity saturation, and multi-axis harmonic vibration profiles.

📊 SI-Aligned Calibration Matrices: Rigorous multi-point electrical alignment executed directly against certified international reference masters.

Engineering Offerings & Strategic Portfolio

➡️ Authorized Industrial Instrument Allocation: Compliant, direct procurement lines supplying authentic, factory-fresh industrial DAQ modules, rugged backplanes, and low-latency fieldbus transceivers.

➡️ Full-Stack OEM/ODM System Customization: Complete lifecycle electronics development, encompassing dense multi-layer impedance-matched PCB layouts, low-latency firmware virtualization, and ruggedized, IP-rated enclosures.

➡️ Tariff-Optimized Cross-Border Freight: Frictionless customs clearance management and strategic logistics coordination guaranteeing punctual delivery directly to remote testing sites.

➡️ On-Site Technical Application Consultations: Direct peer-to-peer engineering support covering low-level C/C++ hardware abstraction layers, custom LabVIEW virtualization, and field system commissioning.

References

National Instruments. (2025). NI-DAQmx Advanced Help: Optimizing Throughput and Latency in PXI Express Instrumentation Environments. Austin, TX: National Instruments.

Love, R. (2010). Linux Kernel Development (3rd Edition). Addison-Wesley Professional.

FAQs:

Why does my program frequently report error -200279 (entry: Buffer Overflow) when performing high-speed disk transfers? How can I optimize it?

This represents the most frequent failure signature inside high-throughput instrumentation setups. The fault explicitly flags that the rate at which the hardware module streams metrics into PC memory via DMA vastly outpaces the speed at which your software application unloads and processes data from the queue. Critical optimization and troubleshooting steps include: 1) Audit your source code to verify if time-heavy UI graphics rendering or hard-drive storage calls reside inside the primary capture loop; if so, immediately offload them via a Producer-Consumer architecture; 2) Increment the soft configuration depth of your primary memory array (by calling DAQmx Configure Input Buffer) to cushion transient disk storage stalls; 3) Augment the "Samples to Read" attribute inside the DAQmx Read call, compressing software polling call counts to optimize loop execution efficiency.

To achieve extremely low latency control (e.g., a 10 µs loop), should I set the number of samples read per cycle to 1 in the code?

The conceptual direction is correct, but it demands matching to an exceptionally high-frequency hardware timing clock, and total channel throughput will be heavily penalized. Setting the sample-to-read metric to 1 (forcing an immediate data transition the moment a single point strikes the buffer) yields the absolute minimized packet transit latency. However, under typical desktop environments or standard software layers, every single DAQmx Read invocation introduces microsecond-scale software API transition overhead. If you are tracking 50 channels concurrently, enforcing a sample depth of 1 floods the processor with kernel interrupts, instantly saturating the host CPU and inducing system instability. To secure extreme 10 µs control loop responses, standard practice shifts away from software-based CPU polling loops. Instead, toggle the NI PXIe-1088 infrastructure into hardware-synchronized trigger bus mode, or utilize PXIe modules armed with integrated onboard FPGA chips (such as R Series or FlexRIO cards). This empowers the local hardware silicon to execute solvers and latch outputs at true hardware limits, completely isolating the host CPU from the high-frequency critical loop.

Why does my system experience packet loss every few minutes when it's continuously writing to the solid-state drive (SSD) at its maximum speed of 4 GB/s?

This behavior typically traces back to transient disk write latency generated by the solid-state drive’s inherent Flash Garbage Collection and SLC Cache Exhaustion cycles. Many commercial SSDs exploit high-speed internal SLC caches to sustain write speeds past 4 GB/s initially; however, under long-term sustained data ingestion, once the cache capacity saturates, the local drive controller is forced to initiate intensive block erasing while dropping down into its native, slower TLC/QLC storage mode. At this junction, disk storage throughput suffers a catastrophic cliff-dive (sometimes falling to a few hundred MB/s), causing the RAM buffers to expand rapidly and overflow. Engineering strategies to resolve this bottleneck include: 1) Deploying enterprise-grade, non-degrading NVMe RAID solid-state storage subsystems specifically rated for continuous sustained maximum throughput (such as dedicated NI PXIe high-speed storage modules); 2) Expanding the soft memory buffer configuration parameters significantly (e.g., locking down over 4 GB of primary RAM as a transient storage pool), utilizing expansive physical memory to absorb and smooth out the intense peak pressures when the physical drive suffers a write latency spike.

​​​​​​​
