How to use 32-channel ARINC429 module for aircraft avionics debugging?

Using a 32-channel ARINC429 module for aircraft avionics debugging involves connecting the module to your test system, configuring individual channels as transmitters or receivers based on your diagnostic requirements, and utilizing specialized software to monitor, capture, and analyze bus traffic in real-time. The 32-channel ARINC429 board enables engineers to simultaneously interface with multiple avionics subsystems, perform error injection testing, and identify communication faults through comprehensive data logging and pattern analysis across all channels. It's useful for more than just collecting info. These units let you keep an eye on multiple processes at the same time and keep the timing accurate to the microsecond level, which is needed to find intermittent faults and timing-related problems. These boards make it easier to find problems and make sure that systems work reliably on a wide range of airplane platforms, whether they are used in Systems Integration Labs, automated test tools, or full flight simulations.

Understanding the 32-Channel ARINC429 Board and Its Role in Avionics Debugging

Core Technical Specifications and Protocol Fundamentals

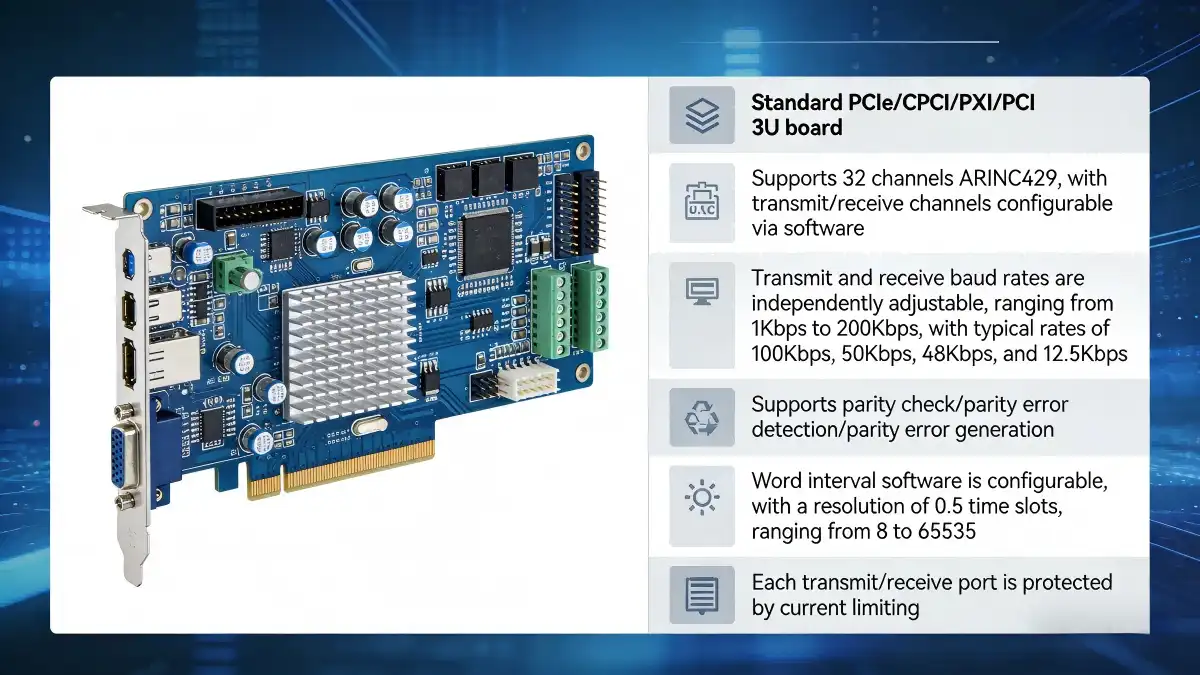

The 32-channel ARINC429 board is a high-tech interface option made for avionics testing settings with a lot of people. This industrial-grade hardware has 32 separate channels built into a single form factor. It is usually offered in PCIe, PXIe, VPX, or PMC versions. The ARINC 429 Part 1-15 standard says that each channel can handle both high-speed (100 kbps) and low-speed (12.5 kbps) data rates. Each channel works on its own.

The ARINC429 protocol uses a special 32-bit data word format that has a name, a source/destination identifier, a data field, a status grid, and a parity bit. ARINC429 doesn't use two-way contact; instead, it uses one-way transmission, where one transmitter talks to many listeners on each bus. This design makes sure that behavior is predictable and gets rid of bus conflict problems that could put flight safety at risk.

Multi-Channel Data Transmission and System Integration

These boards handle complicated data flow situations in airplane systems that include navigation data, flight control parameters, engine monitoring, and information about the surroundings. The 32-channel capability lets you keep an eye on whole aircraft kits without having to use multiple interface cards. This cuts down on hardware costs and system complexity.

The FPGA or DSP engine on the board is in charge of important tasks like label screening, scheduling, and buffering. This design frees up the host CPU while keeping the sub-millisecond delay speed that is needed for real-time debugging apps. Large internal FIFO buffers, which can hold more than 64MB of data, keep data from being lost during times of high traffic when many devices are sending at the same time.

Key Features: Enhancing Debugging Capabilities

Professional-grade 32-channel boards have features that are made to work with aircraft debugging systems. Galvanic isolation, which is usually rated at 500V or higher, keeps host systems safe from ground loops and sudden electrical surges that happen a lot in test labs. Engineers can test how well a system works when the signal quality is bad by simulating old wires and changing the output volume.

IRIG-B time synchronization inputs allow exact correlation of events across multiple test instruments, which is very important for finding timing-dependent faults in complicated situations involving aircraft integration. It is possible to add protocol mistakes like parity violations, bit timing errors, and gap anomalies, which help with the full validation tests needed by DO-178C and DO-254 safety standards.

Step-by-Step Approach to Using a 32-Channel ARINC429 Module for Debugging

Initial Setup and Configuration

Setting up the 32-channel ARINC429 board correctly is the first step in the fixing process. Place the board in the right frame, making sure that it gets enough power and cooling. Install drivers from the maker that work with your operating system, whether it's Windows, Linux, or VxWorks real-time settings.

Individual lines should be set up based on the needs of your test. Most modern boards let you set channels using software, which gives you more options for how to divide up the transmit and receive tasks. During normal debugging, 20 channels might be used to receive data from different avionics units, and 12 channels would be set aside for creating stimuli and checking for errors.

Data Capture and Analysis Techniques

Systematic data gathering methods are needed for debugging to work well. Start by making baseline records of the system working normally. These should include all label types and how they are sent. This standard is very helpful for finding variations when there is a fault.

Use intelligent filtering to focus on names or data groups that are related to the problem that was seen. Modern debugging software has advanced trigger features that let you start a capture based on certain data values, time conditions, or mistake events. Onboard backups with a lot of space make sure that fault sequences are fully captured without any data loss.

Root Cause Analysis and Error Pattern Recognition

Look at the data that was collected for trends that could point to problems with communication, time, or data corruption. Check for missing labels, data values that don't make sense, or time differences that could mean that LRUs are failing or there are problems with the wires. When you can watch more than one station at the same time, you can find problems with how the whole system works that single-channel tools might miss.

Correlation analysis between different parts often shows interactions and relationships that weren't clear when testing each component separately. Check the timing connections between important flying factors to find cascade failures or timing-sensitive integration problems.

Real-World Case Studies and Best Practices

Recent debugging efforts have shown that 32-channel tracking can find even the most complicated integration errors. Timing problems between GPS devices and inertial reference systems were the cause of intermittent tracking accuracy problems in one case. These problems could only be found by watching multiple channels at the same time.

As a best practice, you should keep detailed logs of all debugging sessions, write down all configuration settings and trigger conditions so that they can be used again and again, and set up standard test processes that can be used with different types of airplanes or software.

Integrating and Optimizing Your 32-Channel ARINC429 Board for Maximum Efficiency

Physical Installation and System Integration

For effective function, the right installation is the first step. Make sure there is enough rack room and cooling, especially for high-density 32-channel ARINC429 boards that get very hot when they're running all the time. Check the power supply's ability and make sure the grounding is done correctly to reduce noise interference.

When 32-channel systems need a lot of connectors, cable handling becomes very important. Use the right ARINC429 wires that are properly shielded and terminated. Keep the send and receive wires separate to stop crosstalk, and use strain relief to keep the integrity of the connectors when they are being reconfigured often.

Software Configuration and Driver Optimization

These days' boards work with many computer languages and settings, such as C/C++, Python, and LabVIEW. Choose programming tools that work with the software systems you already have and the skills of your team. Handle errors and handle resources correctly to keep things running smoothly during long test runs.

Setting up Direct Memory Access (DMA) transfers will keep the CPU from getting too busy and guarantee consistent time. Optimize file sizes based on how fast data is expected to flow and how long the record needs to last. Use the right threading techniques to keep the tasks of collecting data and analyzing it separate.

Performance Optimization and Troubleshooting

Keep an eye on system speed measures like CPU utilization, memory consumption, and bus throughput to find places where the system might be slowing down. When storage space becomes an issue with long records, use data compression or selective filtering to get around it.

Use structured fixing methods to fix common problems like driver conflicts, time synchronization issues, and signal integrity issues. Keep your firmware up to date and apply any changes from the maker to fix known problems and make things run better.

Future Trends and Innovations in ARINC429 Modules for Aircraft Avionics

Emerging Technologies and Protocol Evolution

The airline industry is moving toward higher-bandwidth communication protocols, but ARINC429 is still useful because it has been used a lot and is known to be reliable. The main focus of future work will be on making it easier to connect to newer protocols, such as ARINC664 and Ethernet-based devices.

Improvements in FPGA technology make it possible for more complex processing to happen on board, such as analyzing data in real time, recognizing patterns, and automatically finding faults. These changes lower the load on the host system and speed up response times for important testing situations.

Scalability and Modular Solutions

The designs of the next generation focus on modular structures that allow for variable channel allocation and processing that can be spread out. These systems can handle different test needs without having to change all the hardware. This protects investments better and gives operations more freedom.

Cloud integration lets multiple tech teams look at recorded data at the same time, which makes remote tracking and joint debugging possible. This feature is especially useful for remote development projects that involve people in different places and time zones.

Predictive Maintenance and Health Monitoring

Modern boards have advanced analytics built in to help with predicted maintenance. For example, small changes in the way components talk to each other can show that they might be wearing out before they break completely. This feature goes beyond simple debugging and includes smart tracking of system health.

When machine learning algorithms are used on old debugging data, they can find trends that point to new problems. This lets preventive maintenance be done, which cuts down on airplane downtime and raises operational safety.

Conclusion

The 32-channel ARINC429 board is an important part of current airplane electronics debugging because it has a lot of channels and accurate timing, which are needed for a full system analysis. With these high-tech units, engineers can keep an eye on several parts at the same time and get the accurate readings they need to find complex integration faults and timing-dependent problems.

For deployment to go well, hardware requirements, software integration needs, and the ability to provide long-term help must all be carefully thought through. Investing in advanced debugging tools pays off by cutting down on the time needed to fix problems, improving the accuracy of fault identification, and making systems more reliable in both business and military aircraft.

FAQ

1. What latency performance should I expect from a 32-channel ARINC429 board?

Professional-grade 32-channel boards usually have a delay performance of less than one millisecond and deterministic timing traits that are needed for real-time troubleshooting. Premium boards can meet delay requirements of less than 100 microseconds while ensuring that no packets are lost during constant operation across all channels.

2. Can I customize the board configuration for specific aircraft requirements?

Most makers let you change things about their products, like the number of channels, the way the connectors are set up, and the environmental requirements. Custom software solutions can meet specific label filtering needs or provide the error injection tools needed for certain airplane testing situations.

3. How do I ensure compatibility with existing avionics test infrastructure?

Check to see if the software works with your operating system and meets the standards for the computer language. Make sure that the new rack systems and wire kits will work with the old ones mechanically. To meet a wide range of connectivity needs, many boards come in a number of different form factors and connection types.

Partner with MXTD for Advanced 32-Channel ARINC429 Solutions

MXTD offers the best 32-channel ARINC429 board options in the business, made especially for tough aircraft debugging tasks. Our wide range of products comes in both standard setups and choices that can be changed to fit the needs of any specific project. Our prices are reasonable, and our products work exceptionally well.

As a well-known 32-channel ARINC429 board supplier with more than 12 years of experience, we offer full technical support, including online video guidance, complete software development kits, and helpful customer service that guarantees an answer within an hour. Email our technical team at manager03@mxtdinfo.com to talk about your unique debugging needs and find out how our low-cost solutions can help you test airplanes better.
