Control on the NI-9401 - An FPGA Architecture Design

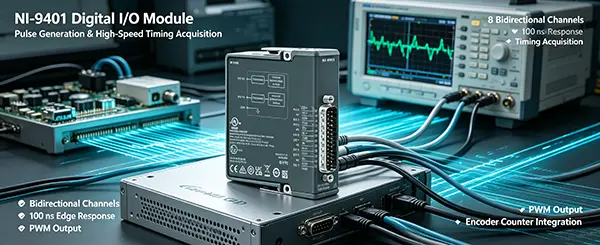

The NI-9401 C Series 8 Channel 2 Way DIO Module is an 8-channel C Series module widely deployed in high-speed digital I/O execution tasks. Although its physical hardware layer mandates defining input or output directions in clustered 4-channel groups, engineers frequently demand single-channel dynamic direction switching when developing real-time bidirectional communications, half-duplex bus emulations, and dynamic handshake protocols. A comprehensive analysis of how to utilize the LabVIEW FPGA architecture to break past physical grouping constraints at the underlying bidirectional tri-state buffer logic layer, achieving absolute per-channel independent directional control. The discussion unfolds across critical engineering dimensions—including tri-state control logic modeling, bidirectional enable turnaround timing optimization, and FPGA resource allocation—serving as an end-to-end deployment reference for constructing deterministic bidirectional digital buses in a bilingual format.

​​​​​​​

Forging Uncompromised Signal Integrity & Hardened Edge-Computing Architecture: The MXTD Engineering Paradigm

Accelerate your high-stakes deployment timelines by engaging our global technical solutions bureau at manager03@mxtdinfo.com / manager02@mxtdinfo.com to secure accredited telemetry blueprints, bespoke OEM hardware co-development proposals, or complete physical-layer signal-compliance audits.

The Engineering Conflict Between Physical Grouping Constraints and Single-Channel Control

In embedded system instrumentation, flexible bus interfaces (such as the SDA line in I2C, 3-wire bidirectional SPI data tracks, or customized half-duplex handshake protocols) mandate that a single physical pin transition from a "receiving input" state to a "driving output" state within microseconds or even nanoseconds.

The NI-9401 C Series 8 Channel 2 Way DIO Module features an ultra-fast toggling response of 100 ns, making it perfectly tailored for such high-frequency bus architectures. However, its official hardware manual explicitly states that the 8 channels of the NI-9401 are directionally assigned at the physical hardware layer in distinct 4-channel clusters (DIO 0-3 as Group 0, and DIO 4-7 as Group 1). This grouping constraint implies that legacy Scan Engine modes or standard RT drivers cannot isolate dynamic directions for a single channel (e.g., configuring DIO 0 as an output while maintaining DIO 1-3 as inputs). To bypass this physical boundary, we must plunge into the core backplane hardware kernel of the NI CompactRIO, deploying FPGA logic to execute pixel-level reconstruction of the underlying tri-state buffer streams.

The Underlying Principle of Bidirectional Channel Reconstruction via FPGA Tri-state Logic

[LabVIEW FPGA Logic Layer] ├── (Channel Data Out) ──────> [ In] ──┐ └── ( Dynamic Enable Out) ────> [Enable control port OE] ─┼─> [NI-9401 Tri-state Buffer] ─> [Physical Pin] │ <── (Channel Data In) <────── [Out] ┘

Tri-state Buffer Physical Driving Mechanism

The underlying core of achieving independent directional control relies on manipulating the Output Enable (OE) primitives exposed by the FPGA to the C Series module. Under the FPGA architecture, each digital channel maps to an internal physical tri-state buffer. When OE is driven high, the channel is explicitly forced into an output state, driving internal data out to the physical pin; when OE is driven low, the output pin enters a high-impedance (High-Z) isolation state, allowing external signals to flow freely into the internal holding registers, macroscopically rendering the channel as an input.

Breaking the Grouping: FPGA Elemental Tri-state Node Configuration

When configuring the NI-9401 C Series 8 Channel 2 Way DIO Module inside the LabVIEW Project Explorer under an FPGA target, its properties must be toggled from the standard Input/Output settings to enable the Elemental Tri-state node schema. In this mode, each physical channel expands on the FPGA diagram into three explicit terminal terminals: Data Out, Output Enable, and Data In. By decoupling the 4-channel joint enable lines originally hardcoded in the hardware, and assigning 8 independent Boolean variables derived from the FPGA logic to control each channel's Output Enable terminal individually in real time, absolute single-channel directional control is flawlessly executed at the software abstraction layer.

FPGA Core Architecture Design and Step-by-Step Timing Optimization

To ensure that the directional turnaround latency is compressed into nanosecond windows, the NI-9401 C Series 8 Channel 2 Way DIO Module tri-state nodes must reside within a Single-Cycle Timed Loop (SCTL) driven directly by a native 40 MHz or 80 MHz hardware timebase. Under the exact same clock pulse, the FPGA evaluates the protocol state-machine transitions and pushes the targeted enablement state straight to the Output Enable terminal in a single clock cycle, locking the physical mode-switching transition latency under 25 ns.

Designing Bus Contention Protection Logic

During rapid bidirectional switching, the most critical hazard to avoid is bus contention, where both nodes attempt to drive the line simultaneously. For instance, if an external controller drives a pin to 5V while the FPGA logic erroneously asserts Output Enable high to drive a 0V, an immediate overcurrent fault occurs across the channel. Therefore, a hardware-synchronized dead-time isolation logic must be hardcoded into the FPGA architectural design: when transitioning directions, the system must force its own Output Enable to zero first, waiting for at least one clock cycle (25 ns) to ensure the tri-state buffer has entered full high-impedance before permitting subsequent read or write actions, protecting the NI-9401 from electrical distress.

Typical Application Case: Highly Efficient Half-Duplex Bus Emulation

This specific FPGA architectural design provides exceptional real-world utility across industrial deployment and scientific research:

High-Speed I2C / MDIO Bus Emulation: In these bidirectional single-wire bus testing setups, utilizing a single slot of the NI-9401 C Series 8 Channel 2 Way DIO Module allows defining DIO 0 as a continuous hardware system clock (always output), while mapping DIO 1 as the data line (SDA). The FPGA state-machine can dynamically drop the enablement variable immediately following a data transmission burst, seamlessly transforming it into a receiving input mode—perfectly simulating complex bus Master/Slave properties on a single module.

Half-Duplex Real-Time Servo Handshaking: Inside specialized military or aerospace servo control links, a single command trace frequently alters its direction based on high-frequency control frame flags. Deploying this FPGA design allows the system to execute a channel directional pivot within 50 ns after decoding a frame header, securing exceptionally low communication latencies across the control loop.

By integrating elemental tri-state node configurations directly into the LabVIEW FPGA core, engineering teams can seamlessly bypass the 4-channel physical grouping boundaries of the NI-9401 C Series 8 Channel 2 Way DIO Module, scaling directional control granularities straight down to arbitrary single-pin thresholds. This highly deterministic FPGA architectural design fully extracts the physical performance capabilities of the 100 ns hardware toggling silicon. Combined with dead-time anti-contention protection loops and single-cycle timed execution structures, it establishes a rock-solid, highly adaptable signaling layer backbone for diverse high-frequency half-duplex bus emulations and high-speed dynamic digital handshaking platforms.

References

National Instruments. (2025). LabVIEW FPGA Module Help: Implementing Elemental Tri-state Structures on C Series Modules. Austin, TX: National Instruments.

Ashenden, P. J. (2008). The Designer's Guide to VHDL (3rd Edition). Morgan Kaufmann Publishers.

FAQs:

Since the hardware itself has limitations, why can the directional definition constraint of a group of 4 channels be forcibly broken through FPGA?

A: This is an excellent engineering question. In reality, the internal digital driver control electronics inside the NI-9401 remain physically hardwired in 4-channel groups at the board layout layer (governing the absolute directional enables of external transceiver chips). However, when you select "Elemental Tri-state" mode inside LabVIEW FPGA, the underlying NI architecture actually configures the 4-channel physical block to remain constantly assigned in an output direction state. When you drive a specific channel's Output Enable low within your FPGA logic, the FPGA does not alter the module-level directional bus; instead, it commands that specific internal FPGA pin cell to enter a high-impedance (High-Z) state. At this junction, the physical potential on that trace is fully dictated by the external input source, while the input path (Data In) remains permanently open to stream real-time data captures. It is this clever virtualization of an "emulated high-impedance state" that successfully delivers channel-level independent directional splitting at the FPGA abstraction layer.

In a single-cycle timing loop, after I change Output Enable from True to False, I immediately read the Data In data in the next clock cycle. Is the data read in this way reliable?

A: Generally, it is not completely reliable; you must introduce a tracking dead-time delay. Although the internal FPGA logical command completes its state transition within 25 ns (under a 40 MHz clock), the physical external pin cell requires time to fully discharge from its driven 5V or 0V potential and settle into complete high-impedance isolation. Due to external cable distributed capacitances and parasitic track impedances, this transition suffers a hardware latency spanning dozens of nanoseconds (the NI-9401 lists a maximum response rating of 100 ns). If you poll the input buffer in the immediate next clock cycle (only 25 ns later), you are highly prone to capturing residual voltage glitches remnants of your prior output state. Standard engineering practice dictates that following an enablement change, you should utilize a hardware counter to delay data reading loops by at least 3 to 4 FPGA clock cycles (approx. 75 ns - 100 ns), ensuring the physical pin potential has fully settled.

After configuring it to element-level tri-state, why is it that when my software sets the Output Enable of all channels to False (theoretically all are high-impedance inputs), a multimeter test of the physical pins reveals a weak floating voltage of about 1.5 V to 2 V?

A: This is a classic physical phenomenon inherent to floating digital inputs and is fully normal. When the NI-9401 pins shift into a high-impedance input state, the physical tracks enter a floating equilibrium. The minor leakage currents of the input buffers interact with internal parasitic capacitances; without an explicit external pull-up or pull-down source, a digital multimeter (which possesses exceptionally high internal impedance itself) frequently registers a weak electrostatic induction potential resting near intermediate logical thresholds (typically around 1.5 V). This does not degrade standard data reading executions. If your application mandates that the pins maintain a stable, highly deterministic logic level when left floating in high-impedance, you should interface an external 10 kΩ pull-down resistor to ground, or a pull-up resistor to 5V, forcing a anchored baseline logic level onto the floating circuit.
