Can IP67 J30JY Connectors Withstand Extreme Weather Conditions?

IP67 J30JY waterproof rectangular connectors absolutely can withstand extreme weather conditions. These robust industrial connectors feature advanced sealing technologies that provide complete protection against dust ingress and water immersion up to one meter for 30 minutes. Built with corrosion-resistant materials and engineered to operate across wide temperature ranges, these connectors maintain reliable performance in harsh environmental conditions including extreme cold, heat, humidity, and severe weather events that commonly challenge industrial automation and aerospace applications.

Understanding the IP67 J30JY Waterproof Rectangular Connector

The IP67 J30JY waterproof rectangular connector represents a breakthrough in industrial connectivity solutions. It was designed to meet the tough needs of current semiconductor testing, air defense, and industrial automation. This strong connector has improved waterproofing features and great mechanical sturdiness, making it a great choice for situations where signal integrity and safety from the environment are very important.

Advanced IP67 Protection Rating

The IP67 grade shows that the connector is very good at protecting against weather damage. The "6" means that dust particles are completely blocked, so no outside items can get inside and mess up the links inside. The "7" means that it can withstand being submerged in water up to one meter deep for 30 minutes. This means that it will work reliably even when it's flooding or raining a lot.This level of safety is especially useful for outdoor setups, marine uses, and industrial settings where moisture and contamination from particles pose big problems for electronics. It is helpful for testing centers and study centers to have this strong security when they use measurement tools in tough environments.

Construction and Material Excellence

The housings of these connectors are made of high-grade aluminum metal and have been treated in special ways so that they don't rust when exposed to salt spray, chemicals, or UV light. When it comes to mechanical strength, rectangular building designs are better than circular ones because they make better use of room. The internal parts use gold-plated contacts that keep the joints low-resistance and don't oxidize over long periods of use.The precisely made elastomer seals make several defenses against the outside world getting in. The flexibility of these seals stays the same from -55°C to +125°C, so they always do their job, even when temperatures change or the environment is very hot or cold.

The Durability of IP67 J30JY Connectors in Extreme Weather

Industrial settings need reliable connection solutions that can work in bad weather. IP67 J30JY connectors offer exceptional sturdiness through strict engineering and testing processes. Procurement managers and system engineers can make better choices for important applications when they know how these connectors can handle harsh weather.

Comprehensive Environmental Testing Standards

Manufacturers test these plugs in a lot of different environments, which goes beyond what is required by normal IP ratings. Temperature cycling tests make sure that the device works well across all of its working ranges, and thermal shock tests make sure that it works well when temperatures change quickly. Vibration and mechanical shock testing mimics the stresses that come up during shipping and operation in aircraft and industrial settings.According to ASTM B117 standards, salt spray testing proves that marine and seaside systems are resistant to corrosion. Testing for UV exposure confirms that the material is stable under long-term exposure to sunlight. This makes sure that the connection works well in outdoor settings for decades.

Real-World Performance in Extreme Conditions

Field placement data from arctic research posts shows that the system works reliably at temperatures below -40°C, where regular connections don't work because the seals become brittle and the metal contracts. Installations in the desert that work at temperatures above 60°C show that they are thermally stable and that the seals stay intact in very hot conditions.Marine uses on offshore platforms and research boats test how well they can handle saltwater and how long their parts will last when they are constantly moving and getting sprayed. These real-world examples give system designers confidence when putting important control and measurement systems in tough places.

Comparative Protection Analysis

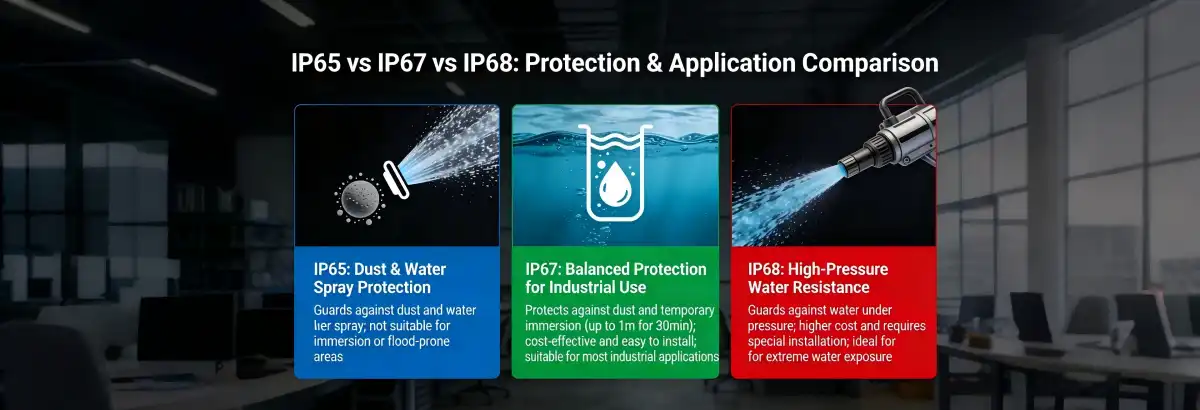

When you compare the IP67 grade to others like IP65 and IP68, you can see important differences that affect what applications you choose. IP65 plugs guard against dust and water spray, but not immersion, so they can't be used in places that are likely to flood. IP68 plugs guard better against water under pressure, but they usually cost a lot more and may need special installation steps.The IP67 rating is the best combination of protecting the environment and making it easy to use. It offers enough security for most industrial uses while still being cost-effective and simple to install.

Comparing IP67 J30JY Connectors with Other Waterproof Connectors

System developers and purchase managers often look at more than one type of connector to find the best one for their needs in terms of performance, cost, and dependability. Knowing how IP67 J30JY waterproof rectangular connectors stack up against other options can help you make the best choice for important systems.

Protection Level Comparison

When looking at waterproof connectors, the amount of safety has a big effect on how well they work in different situations and how long they last. IP68-rated connectors protect better against water immersion and pressure, so they can be used in uses that will be buried in water all the time. But this better safety comes with more work and more money, which might not be worth it for most industrial setups.IP65 connectors guard against water jets and splashes well enough, but they don't offer the level of immersion resistance needed in flood-prone areas or for outdoor setups that get wet a lot. In most industrial settings, the IP67 rating gives complete security at a reasonable cost and with sensible installation ease.

Cost-Performance Analysis

Budget optimization is still a very important thing for buying managers in charge of big projects to think about. IP67 J30JY plugs are a great deal because they offer strong environmental protection at a price that is comparable to higher-rated options. System integrators and original equipment makers can save money by buying in bulk and making changes to the product.The initial buy price, the difficulty of installation, the need for upkeep, and how often the item needs to be replaced are all part of the total cost of ownership. These things are kept to a minimum with IP67 J30JY connectors because they are easier to install, last longer, and come with a full guarantee that lowers long-term running costs.

Unique Advantages and Features

Because of a few unique features, these connections are better than similar goods on the market. Compared to circle connectors, the rectangular form factor makes better use of panel space, allowing for more connections in smaller equipment designs. Within a single connection system, multiple contact arrangements can handle different signal needs, such as power, data, and analog measurement circuits.Quick-disconnect systems make links that don't loosen from vibrations more secure while cutting down on the time needed for installation and maintenance. Keyed housings keep them from mating incorrectly and give good contact feedback while they are being installed. These features are especially useful for R&D centers and testing labs where equipment is often being moved around.

Installation and Maintenance Guide for IP67 J30JY Connectors

The long-term dependability and environmental protection of IP67 J30JY waterproof rectangular connectors depend on how well they are installed and maintained. By following the set steps, you can get the best performance, protect your warranty, and extend the operating service life.

Pre-Installation Preparation and Tools

Getting ready and choosing the right tools are the first steps to installing connectors correctly. Precision torque wrenches that are calibrated to the manufacturer's specs, contact insertion and extraction tools, and the right wire preparation equipment are all necessary tools. Things like the weather, humidity, and cleanliness of the work area have a big effect on the quality of the job.When making a cable, you need to pay close attention to the lengths of the conductor strips, the stability of the insulation, and the connection of the strain relief. Proper conductor termination keeps water out of cable systems and makes sure that electrical links are solid so that signals stay intact for long periods of time.

Step-by-Step Installation Procedures

Before starting the installation process, the connecting parts must be carefully checked for any damage or contamination that could affect the security of the seal. Checking the gaskets and seals makes sure they are in the right place and don't have any nicks or deformations that could let leaks happen.To avoid damage and make sure that all retention devices are fully engaged, the right tools must be used for contact placement. To get the right compression without putting too much stress on the parts, it is important to carefully follow the torque specifications for the backshell and frame. As part of the final check of the system, the gaskets must be properly compressed and there must be no gaps or misalignment.

Preventive Maintenance and Inspection

How often repair needs to be done depends on how harsh the surroundings is and how often the system is used. Inspections are usually needed every six months for outdoor installations and once a year for indoor installs. As part of routine maintenance, the stability of the housing is visually checked, the state of the gaskets is evaluated, and electrical continuity is confirmed.Cleaning techniques use allowed solvents and methods that keep the integrity of the seal material while getting rid of built-up dirt and grime. By using the right substances to lubricate threaded parts, you can stop corrosion and make future upkeep easier. Keeping records of repair tasks helps with guarantee claims and finding new reliability trends.

Procurement and Supply Chain Insights for IP67 J30JY Connectors

To make good buying plans for IP67 J30JY connectors, you need to know how the skills, quality standards, and supply chain processes of suppliers affect project costs and timelines. Strategic sourcing helps make sure that parts are always available while also lowering the total cost of buying things for large-scale operations.

Supplier Evaluation and Selection Criteria

Suppliers who are qualified have complete quality management systems that include ISO 9001 certification and compliance with industry standards. The ability to make things should include both standard products and services for customizing products for specific uses. For complicated system integrations, technical support services like engineering help and application advice are very useful.Some signs of a stable supply chain are the ability to manufacture, the way that inventory is managed, and the regional delivery networks that meet the needs of global projects. Stable finances and plans for business continuation help make sure that suppliers will be around for a long time so that customers can get support and parts throughout the lifecycle of a product.

Customization and OEM Services

For many uses, connectors need to be changed or set up in a certain way in order to work properly or install properly. Some of the technical support services that qualified providers offer are application analysis, custom contact setups, and specialized housing changes. OEM makers who are making their own systems with specific connection needs will find these services especially useful.Customization options should include services for making quick prototypes, testing to make sure the design works, and production scaling options that work for both the development and mass production stages. For businesses that are regulated, documentation support like technical drawings, test results, and certification compliance helps speed up the process of getting a product approved.

Logistics and Inventory Management

When thinking about the global supply chain, you need to think about the right ways to ship precision electrical parts, like how to keep them dry, absorb shock, and keep them from static electricity. When planning lead times, it's important to think about whether a standard product is available and whether custom production steps may make it take longer to get the product.Strategies for managing inventory weigh the costs of keeping items in stock against the risk of running out of important items. Inventory programs and consignment arrangements handled by suppliers help businesses save money on working capital while making sure that parts are available for production plans and emergency repair needs.

Conclusion

IP67 J30JY waterproof rectangular connectors demonstration exceptional capability to withstand extreme weather conditions through robust engineering, complete environmental protection, and proven field performance across diverse industrial applications. The IP67 protection rating provides optimal balance between environmental resistance and practical deployment considerations, making these connectors ideal for industrial automation, aerospace defense, and testing applications where reliability cannot be compromised. Proper selection, installation, and maintenance practices ensure long-term performance while strategic procurement approaches optimize costs and supply chain reliability.

FAQ

What temperature range can IP67 J30JY connectors handle?

IP67 J30JY plugs usually work well in temperatures ranging from -55°C to +125°C, which means they can be used in both cold places and hot ones. The special seal materials and housing designs keep the integrity even when the temperature changes and the environment is very harsh.

How long can these connectors remain submerged underwater?

If something has an IP67 grade, it means it can withstand being submerged in water up to one meter deep for at least 30 minutes. However, the real submersion capability often goes beyond these specs, and these connections have been used successfully in situations where they were briefly submerged for long periods of time.

Are IP67 J30JY connectors compatible with existing industrial systems?

These links work with a lot of different standard industrial systems because they have a lot of different contact and input choices. Customization services can change the specs of connectors to fit the needs of the current system while keeping their ability to protect the environment.

What maintenance schedule should be followed for optimal performance?

Maintenance times rely on how harsh the environment is; outdoor installations usually need to be inspected every six months, while indoor installations need to be inspected once a year. For continued dependability, regular inspections check the state of the housing, the integrity of the gaskets, and the consistency of the electrical current.

Partner with MXTD for Superior IP67 J30JY Waterproof Rectangular Connector Solutions

MXTD brings over 12 years of specialized expertise in high-reliability connector solutions, offering comprehensive IP67 J30JY waterproof rectangular connector products that meet the demanding requirements of industrial automation, aerospace defense, and testing applications. Our experienced R&D team provides rapid technical response within one hour, ensuring your projects maintain momentum with standardized products available from stock and customized solutions designed to your specific parameters. We benchmark our connector performance against leading industry standards while delivering economical pricing and exceptional cost-effectiveness for system integrators and OEM manufacturers seeking reliable IP67 J30JY waterproof rectangular connector supplier partnerships. Contact manager03@mxtdinfo.com to discuss your connectivity requirements and discover how our proven expertise can enhance your system reliability.
