When precision measurement and advanced signal analysis are critical to your engineering projects, the MSO5000 Series Digital Oscilloscope delivers exceptional performance and versatility. Built on innovative UltraVision II technology, this powerful mixed signal oscilloscope integrates seven professional instruments into one compact platform, helping engineers accelerate debugging, validation, and testing processes.

Featuring bandwidth options from 70 MHz to 350 MHz, up to 8 GSa/s real-time sampling rate, 500,000 wfms/s waveform capture rate, and up to 450,000 frames of hardware real-time recording, the MSO5000 Series provides the speed and visibility required to capture elusive signal anomalies and complex system interactions.

Whether you are working in electronics design, embedded systems development, industrial automation, communications, power electronics, or educational research, the MSO5000 Series offers the performance, reliability, and scalability needed for modern test and measurement applications.

Product Description from the Supplier

Xi'an Mingxi Taida Information Technology Co., Ltd. brings over 12 years of industry expertise to deliver cutting-edge measurement and control solutions.With progressed computerization forms and strict quality control, we guarantee each item meets the most noteworthy guidelines for proficient applications.

Description

Traditional oscilloscopes face three key challenges: insufficient bandwidth prevents the accurate reproduction of high-frequency signals; inadequate sampling rates lead to distortion of fine details; and their limited functionality necessitates the use of multiple devices in conjunction, making it difficult to capture sporadic transient faults, analyse complex bus protocols or perform long-term stability testing. The industry urgently requires an integrated test instrument offering high bandwidth, high sampling rates, deep memory, multifunctional integration and excellent value for money, capable of supporting both in-depth R&D debugging and efficient mass production testing. The MSO8204 Mixed Signal Oscilloscope 500Mpts was developed in response to this need, precisely meeting the core requirements of high-end electronic testing.

Key Hardware Features-MSO8204 Mixed Signal Oscilloscope 500Mpts:

• 2 GHz ultra-wide bandwidth + 10 GSa/s ultra-fast sampling, distortion-free high-frequency signals:

Featuring a standard 2 GHz analogue bandwidth and a real-time sampling rate of 10 GSa/s across all channels, it accurately reproduces the original characteristics of high-frequency signals. Ideal for high-speed digital circuits, RF auxiliary testing and high-frequency driver circuits, it eliminates signal attenuation and distortion.

• Proprietary Phoenix chip + UltraVision II platform, delivering superior performance and reliability:

The proprietary ASIC chip integrates a full-featured AFE module, significantly enhancing consistency and reliability; the UltraVision II platform supports a waveform capture rate of 600,000 frames per second, fully digital triggering and fully in-memory hardware measurements, enabling efficient capture of sporadic faults.

• 500 Mpts of massive storage depth for stress-free long-term testing:

With a standard storage depth of 500 Mpts per channel, it supports continuous, high-resolution waveform recording over extended periods, enabling the acquisition of long-duration signals without compromising the sampling rate. Ideal for ageing tests, stability tests and bus timing traceability.

• Integrated analogue-digital testing:

A single instrument handles everything. Simultaneous analogue-digital analysis: 4 independent analogue channels + optional 16 digital logic channels. Simultaneously capture analogue voltage and digital logic signals to pinpoint timing faults in analogue-digital interactions with precision. No need for multiple devices, simplifying test setup.

• 7-in-1 multifunctional integration, exceptional value for money:

Combines the functions of seven major instruments—oscilloscope, logic analyser, spectrum analyser, arbitrary waveform generator (optional), digital voltmeter, frequency counter and protocol analyser (optional)—significantly reducing equipment procurement costs and space requirements.

• Professional eye diagrams / jitter + power analysis, comprehensive high-end testing:

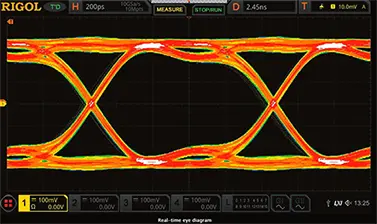

​​​​​​​Optional real-time eye diagram and jitter analysis, suitable for high-speed interface signal integrity testing; built-in advanced power analysis tools for precise testing of ripple, harmonics and surges, meeting the requirements of precision power supply design verification.

• 10.1-inch HD touchscreen + smart interaction for efficient and convenient operation:

10.1-inch 1024×600 capacitive touchscreen supporting both gesture control and physical buttons; smart auto-configuration, multi-window split-screen view and 256-level greyscale afterglow display lower the learning curve.

• High stability and strong scalability, suitable for long-term iterative testing:

Time-based accuracy of ±1 ppm, industrial-grade hardware architecture, and stable measurement data; supports USB, LAN and VNC remote control, and is compatible with firmware upgrades, report export and secondary development, making it suitable for automated test platforms.

Technical Specifications-MSO8204 Mixed Signal Oscilloscope 500Mpts:

Horizontal system

Trigger System

Waveform Capture

Clients:

✅High-Speed Electronic Hardware R&D Engineer- Hardware R&D personnel at companies specialising in telecommunications equipment, servers and consumer electronics, responsible for high-speed interface debugging, signal integrity analysis and high-frequency circuit fault diagnosis.

✅Automotive Electronics R&D and Test Engineer- R&D and quality control personnel at automotive manufacturers and automotive component suppliers, specialising in compliance and reliability testing of vehicle bus systems, electronic control modules and sensors.

✅Aerospace / Defence Equipment R&D Personnel- R&D and testing personnel in the defence and aerospace sectors, suitable for applications involving aviation-specific buses and high-stability precision signal acquisition.

✅Precision power supply and power electronics engineers- R&D personnel at companies specialising in power supply modules, new energy equipment and industrial power supplies, for specialised testing of power supply ripple, harmonics and load transient response.

✅Laboratory staff at research institutions and universities- Laboratories in electronics, communications and automation departments at universities, and R&D personnel at research institutes, for use in high-precision scientific experiments, research projects and advanced teaching and practical training.

✅Industrial Embedded and Automation Engineer- R&D personnel at companies specialising in industrial control and IoT devices, responsible for mixed-signal debugging of embedded systems, industrial control boards and servo drive circuits.

✅Quality control and mass production test engineers for high-end electronics manufacturing- Quality control and mass production test engineers at electronics manufacturing companies, responsible for batch performance testing and fault screening of high-end products prior to shipment.

Custom Design

Custom Configuration Options

We understand that every test environment has unique requirements. The MSO5000 Series offers flexible configuration and upgrade possibilities to meet changing project demands.

Bandwidth Upgrades

Choose from 70 MHz, 100 MHz, 200 MHz, or 350 MHz bandwidth options, with upgrade paths available for future expansion.

Channel Expansion

Select 2-channel or 4-channel models and add digital analysis functionality when needed.

Memory Enhancements

Expand acquisition memory up to 200 Mpts for advanced waveform analysis applications.

Software Licensing

Enable additional protocol decoding and analysis functions based on your specific testing requirements.

System Integration

Support for laboratory automation and remote operation simplifies integration into existing testing infrastructures.

Why Select MXTD

Our MSO5000 Series oscilloscope combines performance, flexibility, and value in a single platform designed for modern engineering challenges.

Proven Measurement Technology

Built on advanced UltraVision II architecture trusted by engineers worldwide.

Future-Proof Investment

Upgradeable hardware and software help protect your investment as testing requirements evolve.

Increased Debug Efficiency

Fast waveform capture and deep memory acquisition shorten troubleshooting and development cycles.

Professional Mixed Signal Analysis

Simultaneous analog and digital measurement capabilities simplify complex system debugging.

User-Friendly Operation

Modern touchscreen interface and intuitive controls reduce learning curves and improve productivity.

Comprehensive Support

Technical consultation, product training, and application support help maximize instrument performance.

FAQ

Q: What bandwidth options are available for the MSO5000 Series?

A: The series supports 70 MHz, 100 MHz, 200 MHz, and 350 MHz bandwidth configurations, with upgrade options available for selected models.

Q: Can the oscilloscope analyze digital signals?

A: Yes. The MSO5000 Series supports up to 16 digital channels through an optional logic analyzer module.

Q: What is the maximum waveform capture rate?

A: The oscilloscope achieves up to 500,000 waveforms per second, enabling efficient detection of rare signal events.

Q: How much memory is available?

A: Standard memory can be expanded up to 200 Mpts, depending on the model and configuration.

Q: Does the oscilloscope support remote operation?

A: Yes. Integrated web control functionality allows remote monitoring and operation over a network connection.

Q: What industries commonly use the MSO5000 Series?

A: Common applications include electronics design, embedded systems, industrial automation, automotive electronics, communications, power electronics, education, and research laboratories.

Contact Us

Looking for a high-performance digital oscilloscope for your laboratory, production line, or R&D project?

Our technical specialists can help you select the ideal MSO5000 Series configuration based on your measurement requirements, bandwidth needs, and application environment.

Email: manager02@mxtdinfo.com

Contact us today to learn how the MSO5000 Series Digital Oscilloscope can improve signal visibility, accelerate debugging, and enhance testing efficiency across your projects.
