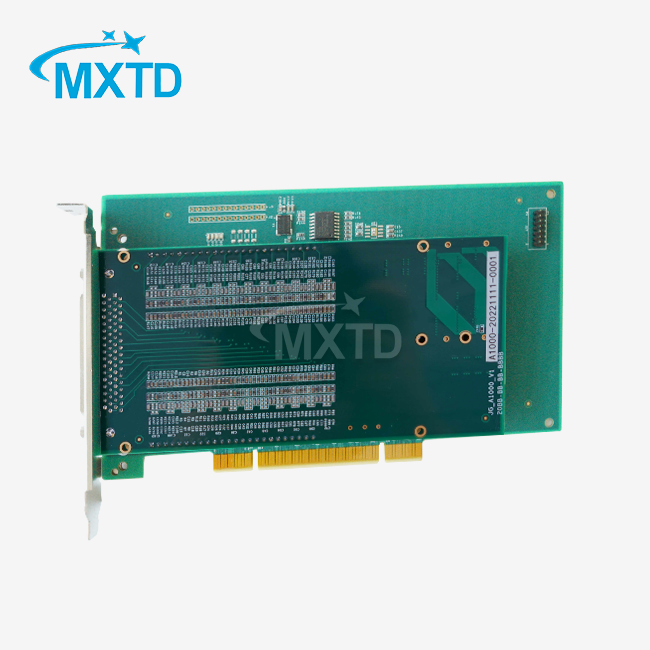

24-Channel Isolated Discrete Input/Output Board

Looking for reliable discrete signal control in your automation systems? Our 24-Channel Isolated Discrete Input/Output Board delivers exceptional performance with complete channel isolation and versatile configuration options. This industrial-grade board gives 24 discrete inputs and 24 discrete yields, making it idealize for complex control applications. Whether you require PXI, CPCI, PCIe, or PCI transport compatibility, our arrangement adjusts to your particular prerequisites with professional-grade reliability.

Description

Our discrete I/O sheets speak to the culminate mix of usefulness and adaptability. Each board highlights total segregation between all channels, guaranteeing flag astuteness and framework assurance. The strong plan bolsters wide voltage ranges and gives amazing clamor resistance for mechanical environments.

With over 12 a long time of industry skill, Xi'an Mingxi Taida conveys demonstrated arrangements that meet requesting application necessities. Our sheets bolster numerous working frameworks and come with comprehensive driver libraries for consistent integration.

Specifications

Parameter	Specification
Bus Types	PXI/CPCI/PCIe/PCI
Form Factor	Standard 3U board
Input Channels	24 discrete inputs
Output Channels	24 discrete outputs
Input Logic High	+18V to +36V
Input Logic Low	-1V to +1V
Maximum Input Range	±60V
Maximum Load Voltage	+60V
On-Resistance	10Ω (Max)
Output Current	100mA per channel
Dimensions (PXI/CPCI)	160mm × 100mm × 20mm
Dimensions (PCIe/PCI)	175mm × 106mm × 20mm
Operating Temperature	-20°C to +60°C (Commercial) -40°C to +70°C (Industrial)
Storage Temperature	-55°C to +85°C
Humidity	5% to 90% (non-condensing)

Applications

Your automation projects benefit from our versatile I/O solutions across multiple industries:

Industrial Control Frameworks - Screen sensors and control actuators with disconnected protection
Test and Estimation - Interface with outside hardware securely and reliably
Simulation Situations - Make reasonable control scenarios for framework testing
Avionics Frameworks - Meet exacting unwavering quality prerequisites for aviation applications
Data Procurement - Collect discrete signals from numerous sources simultaneously
Process Control - Oversee basic operations with fail-safe isolation

Functionality

Each channel operates independently with configurable input and output modes. You can set discrete inputs for power-on/power-off, power-ground/power-ground-off configurations. Similarly, output channels support flexible power and ground switching arrangements.

The isolation design protects your system from ground loops and electrical interference. This 24-Channel Isolated Discrete Input/Output Board ensures reliable operation even in electrically noisy environments.

Key Features

Complete Channel Isolation

Every input and yield channel keeps up electrical confinement, avoiding cross-talk and ensuring delicate circuits.

Flexible Configuration

Configure each channel separately to coordinate your particular application requirements.

Wide Voltage Range

Handle input voltages up to ±60V with robust protection circuits.

Multiple Bus Support

Choose from PXI, CPCI, PCIe, or PCI interfacing based on your framework architecture.

Professional Software Support

Compatible with Windows operating systems and custom Linux/VxWorks/RTX/LabVIEW RT environments.

Compact Design

Standard 3U form factor fits seamlessly into existing rack systems.

Custom Design

Need modifications for your specific application? Our experienced R&D team provides comprehensive customization services. We adapt our 24-Channel Isolated Discrete Input/Output Board design to meet your unique requirements.

Our customization capabilities include:

Modified voltage ranges
Alternative connector configurations
Custom software drivers
Specialized environmental ratings
Application-specific features

Customization Process

Why Choose MXTD?

Proven Experience

With over 12 years in the industry, we understand your challenges and deliver solutions that work.

Quality Assurance

Strict quality control processes ensure every board meets our high standards for reliability and performance.

Comprehensive Support

Our technical team provides ongoing assistance from initial consultation through long-term maintenance.

Fast Response

We respond quickly to your needs, whether for standard products or custom solutions.

Reliable Delivery

Partnering with trusted logistics providers ensures your orders arrive safely and on time.

Certifications and Certificates

Logistics and Transportation

FAQ

Q: What operating systems do you support?

A: We provide drivers for Windows 98/2000/2003/XP/7/10 as standard. Custom support includes Linux, VxWorks, RTX, and LabVIEW RT.

Q: Can I mix different input and output configurations?

A: Yes, each channel configures independently, allowing mixed setups within the same board.

Q: What's included with the board?

A: Each board comes with driver libraries, demo programs, and comprehensive documentation.

Q: Do you offer technical support after purchase?

A: Absolutely. We provide ongoing technical support, troubleshooting assistance, and regular follow-ups.

Q: Can you customize the board for specific applications?

A: Yes, our R&D team specializes in creating customized solutions to meet your exact requirements.
