J30JH Series Micro Rectangular Electrical Connector - High-Density Industrial Solution

Looking for a reliable micro rectangular connector that delivers exceptional performance in demanding industrial applications? The J30JH Series Micro Rectangular Electrical Connector offers superior contact density and robust construction that ensures consistent electrical connections in challenging environments. These compact connectors feature 1.27mm contact spacing with 1.1mm row pitch, providing maximum connectivity in minimal space. Compatible with AirBorn's M series and ITTCannon's MDM series products, our connectors deliver the reliability you need for critical applications. With comprehensive configurations ranging from 9 to 100 pins plus specialized power variants, these connectors meet diverse connectivity requirements while maintaining exceptional quality standards.

Description

Our micro rectangular electrical connectors represent years of engineering excellence and manufacturing precision. Planned for applications where space is premium but execution cannot be compromised, these connectors utilize progressed contact innovation with stranded wire pins and inflexible attachments. This combination guarantees predominant contact unwavering quality and exceptional vibration resistance indeed in the harshest working conditions.

The standardized item lineup disentangles your choice handle whereas giving adaptability for different applications. Each connector experiences thorough quality testing to guarantee steady execution and long-term unwavering quality in your most requesting projects.

Specifications

Parameter	Value
Contact Spacing	1.27mm
Row Pitch	1.1mm
Rated Current	3A (13A for 5-core power supply)
Dielectric Withstanding Voltage	800V r.m.s
Contact Resistance	≤10mΩ
Insulation Resistance	≥5000MΩ
Operating Temperature	-55°C to +125°C
Mechanical Life	500 mating cycles
Vibration Resistance	10Hz~2000Hz, 294m/s²
Random Vibration	0.6G²/Hz PSD, 28.4G RMS
Shock Resistance	980m/s² x 6ms
Salt Spray Resistance	96 hours
Damp Heat Resistance	240 hours
Radiation Resistance	1×10⁵Gy

Applications

These versatile connectors excel in numerous industrial and commercial applications:

Aerospace and Defense Systems: Critical avionics communication equipment

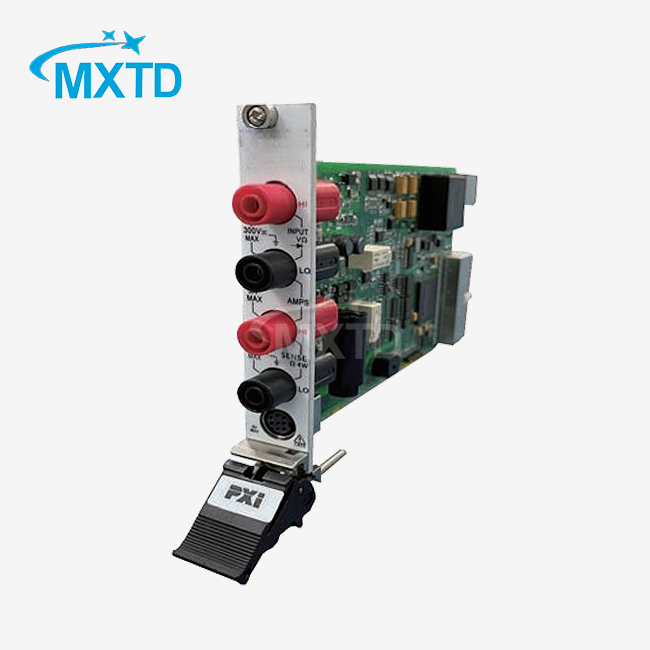

Test and Measurement Instruments: PXIe chassis and measurement cards
Industrial Automation: Control systems and data acquisition equipment
Medical Equipment: Diagnostic and monitoring devices
Telecommunications: Communication infrastructure and networking equipment
Automotive Electronics: Advanced vehicle control systems

Functionality

The connector plan prioritizes both electrical execution and mechanical solidness. The stranded wire stick arrangement gives adaptable network whereas keeping up moo contact resistance. Unbending attachments guarantee secure mating and avoid coincidental detachment amid operation.

Multiple termination options accommodate various installation requirements. Whether you need wire-attached, solder-cup, straight PCB-mount, or right-angle PCB-mount configurations, our J30JH Series Micro Rectangular Electrical Connector product line delivers the exact solution for your application.

Key Features

High Contact Density: Maximum connections in compact footprint
Superior Reliability: Proven performance in extreme environments
Comprehensive Range: 11 standard configurations available
Flexible Terminations: Multiple mounting and connection options
Industry Compatibility: Works with major connector standards
Extended Temperature Range: Operates reliably from -55°C to +125°C
Excellent EMI Performance: Robust shielding capabilities
Long Service Life: 500+ mating cycles with consistent performance

Custom Design

Every application has special necessities. Our experienced building group works closely with you to create customized arrangements that meet your particular needs. From adjusted stick courses of action to specialized lodging materials, we convey custom fitted connector solutions.

Our custom plan handle incorporates intensive meeting, model advancement, and thorough testing to guarantee your custom connector meets all execution necessities. We bolster both small-scale specialized applications and large-volume generation requirements.

Customization Process

Why Select MXTD

Deep Industry Encounter: With over 12 a long time of specialized ability, we get it the basic nature of dependable network arrangements. Our group has effectively conveyed thousands of connector arrangements over numerous industries.

Advanced Fabricating: State-of-the-art generation offices guarantee reliable quality and exactness in each connector. Robotized forms and strict quality control strategies ensure solid performance.

Expert Specialized Bolster: Our gifted R&D and after-sales groups give comprehensive back all through your extend lifecycle. From starting determination to progressing support, we're your trusted network partner.

Comprehensive Testing: Each item experiences broad testing counting vibration, stun, natural, and electrical execution confirmation. This guarantees your connectors perform dependably in real-world conditions.

Flexible Arrangements: Whether you require standard items or custom plans, our capabilities back both standardized and specialized necessities rapidly and efficiently.

Certifications and Certificates

Logistics and Transportation

FAQ

Q: Are these connectors congruous with existing systems?

A: Yes, our connectors are outlined for compatibility with AirBorn M arrangement and ITTCannon MDM arrangement items, guaranteeing consistent integration with existing infrastructure.

Q: What customization choices are available?

A: We offer broad customization counting stick arrangements, lodging materials, end sorts, and specialized natural evaluations to meet your particular requirements.

Q: How do you guarantee item quality?

A: Each connector experiences comprehensive testing counting mechanical, electrical, and natural confirmation. Our quality administration framework guarantees steady execution over all products.

Q: What is the normal conveyance time?

A: Standard items regularly dispatch inside 1-2 weeks. Custom plans require extra lead time depending on complexity and testing prerequisites.

Contact Us

Ready to enhance your connectivity solutions with the J30JH Series Micro Rectangular Electrical Connector? Our technical experts are ready to assist with product selection, customization, and application support.

Contact our team today at manager03@mxtdinfo.com to discuss your specific requirements and discover how our advanced connector technology can improve your system performance and reliability.
